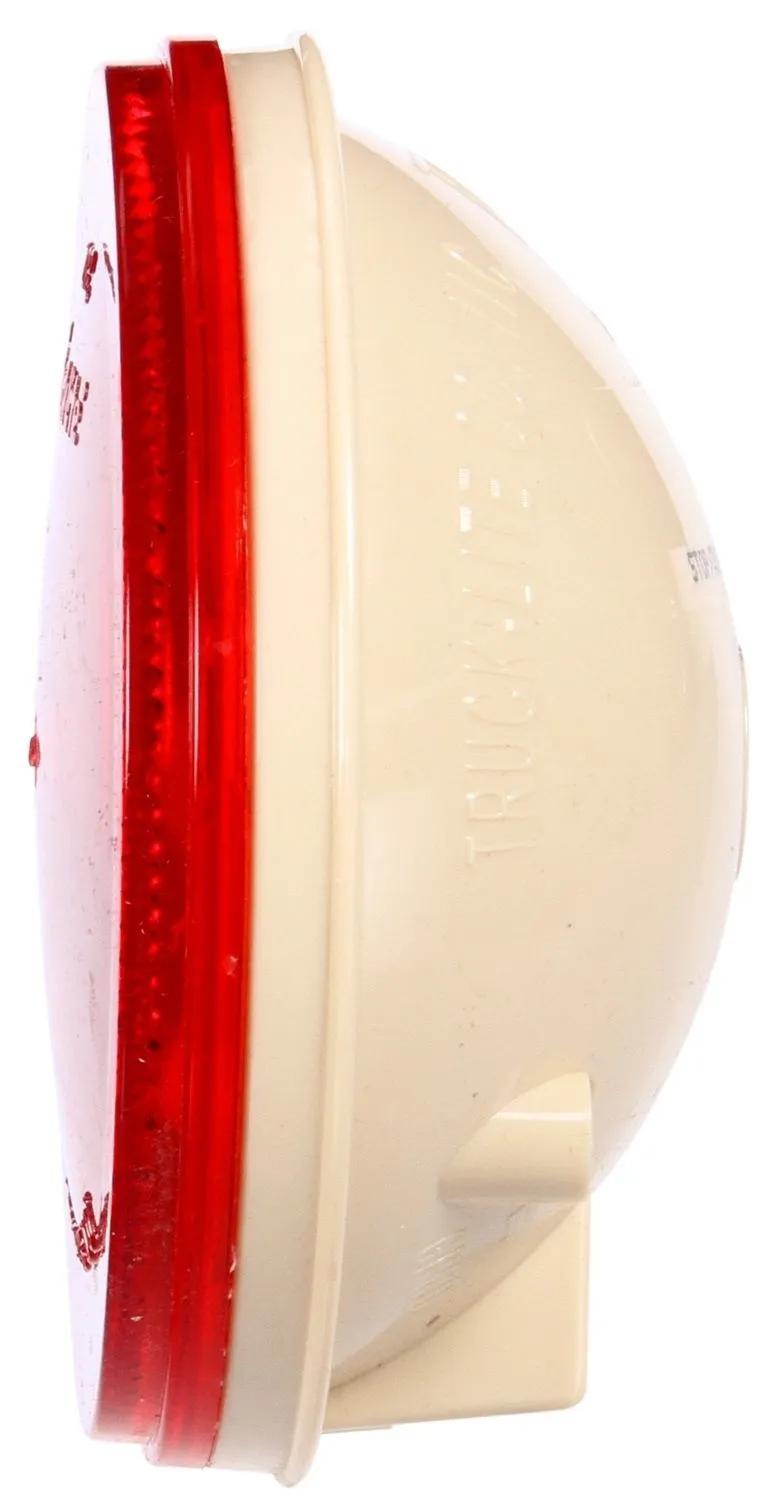

Stop/Tail/Turn Light, Red, Round
#TRL40285R
Product Overview
40 Economy, Reflectorized, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Reflectorized, PL-3, 12V
Features & Benefits
- Flange kits feature a high impact plastic affixed to lamp
- Grommet kit features flush mounting in a 4-1/2"
- hole
- High Impact Plastic Affixed to Lamp
Specifications
| Amps | 0.48 amp to 2.1 amp |
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Double Contact |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-3/32 in (5.31 cm) |
| Diamond Shell (Y/N) | No |
| Function | A, I, P2, S, T |
| Height | 4-19/64 in (10.92 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 4-19/64 in (10.92 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Gel-Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Reflectorized (Y/N) | Yes |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 4-19/64 in (10.92 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| GRO52672 |
| TRU40285R |
| 8413-40285R |
| LIT40285R |
| TKL40285R |
| TL 40285R |
| TL 40285R |
| TL40285R |
| TLD40285R |
| 1812420865 |
| LT41R |
| SR4000R |
| G274 |
| PA12029 |
| 40285R3 |
