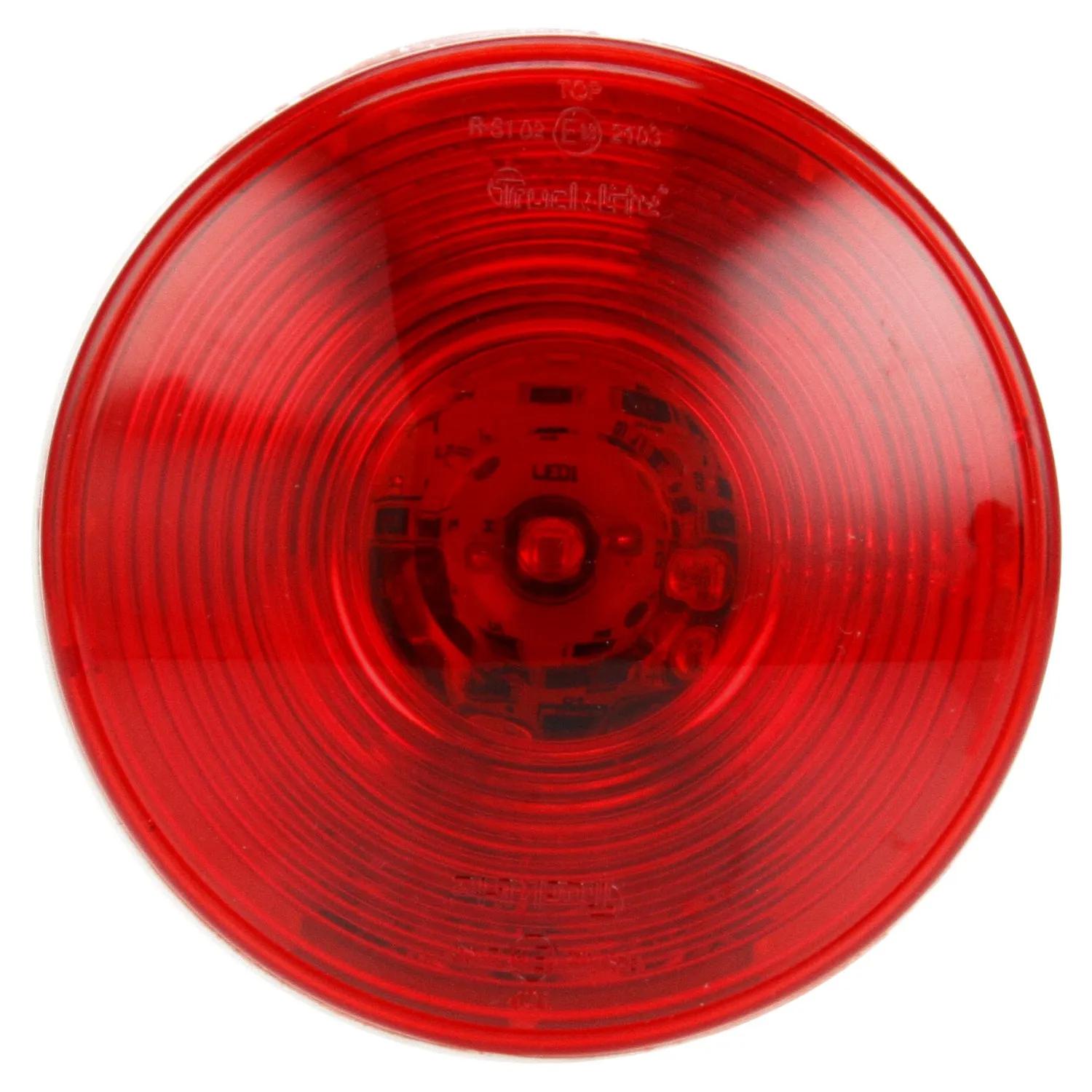

Stop/Tail/Turn Light, Red, Round
#TRL44932R
Product Overview
44 Series,European Approved, LED, Red, Round, 1 Diode, Stop/Turn/Tail, Hardwired, .180 Bullet, 12-24V
Features & Benefits
- Electronics completely sealed in epoxy to resist moisture and corrosion
- Lamp hardwired - wire leads incorporate 180 degrees
- Sealed polycarbonate lens and housing
- Voltage 10v to 30v
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Stop/Tail/Turn Light |
| Current Major | 0.23 amp |
| Current Minor | 0.02 amp |
| Depth | 1-5/32 in (2.95 cm) |
| Diamond Shell (Y/N) | No |
| Height | 4-5/16 in (10.95 cm) |
| Kit (Y/N) | No |
| Length | 5-1/2 in (13.97 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 44 Series |
| Shape | Round |
| Standard | ECE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Width | 4-5/16 in (10.95 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 44932RTLT |
| 8413-44932R |
| LIT44932R |
| TL 44932R |
| TLD44932R |
| 44932R |
