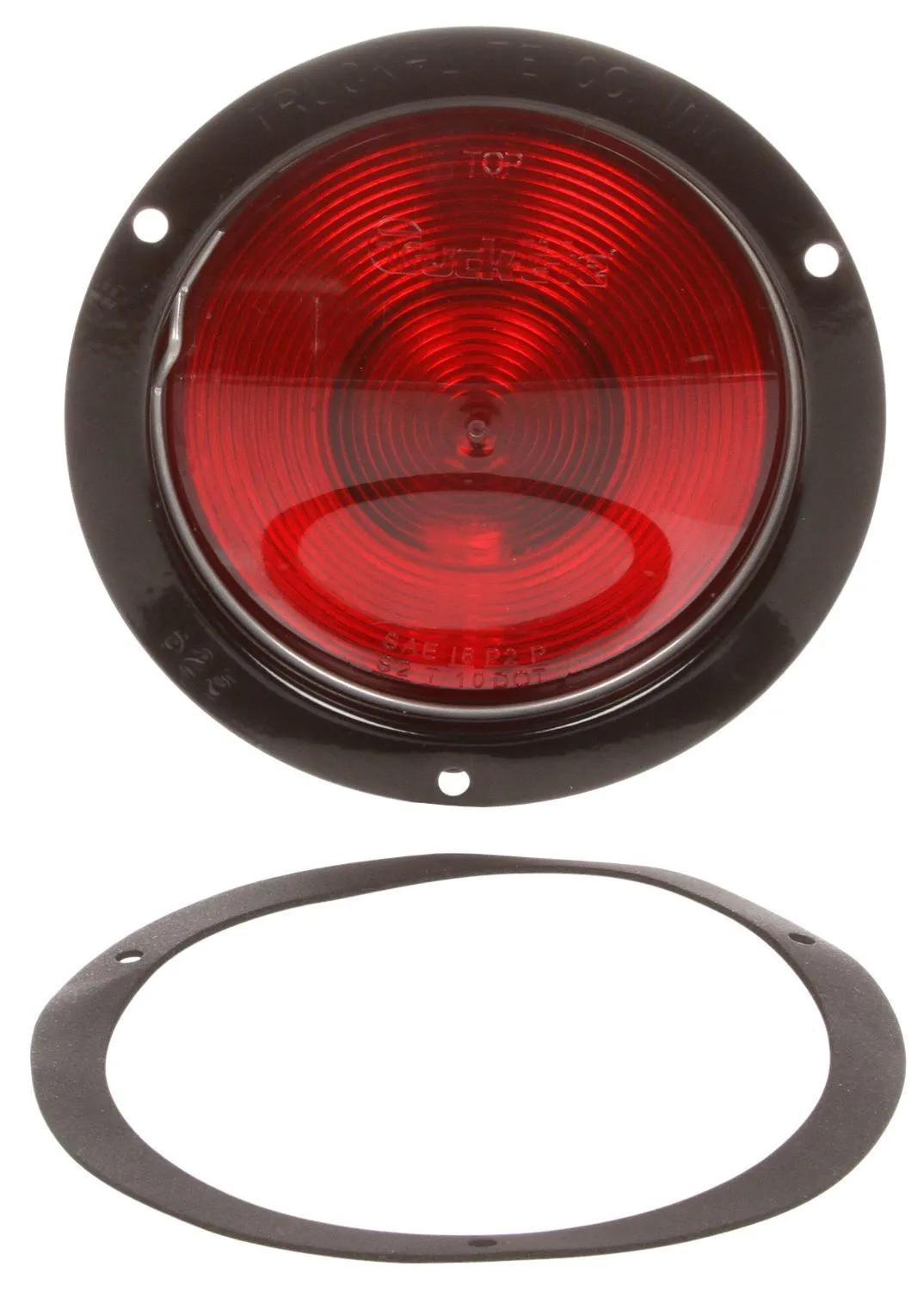

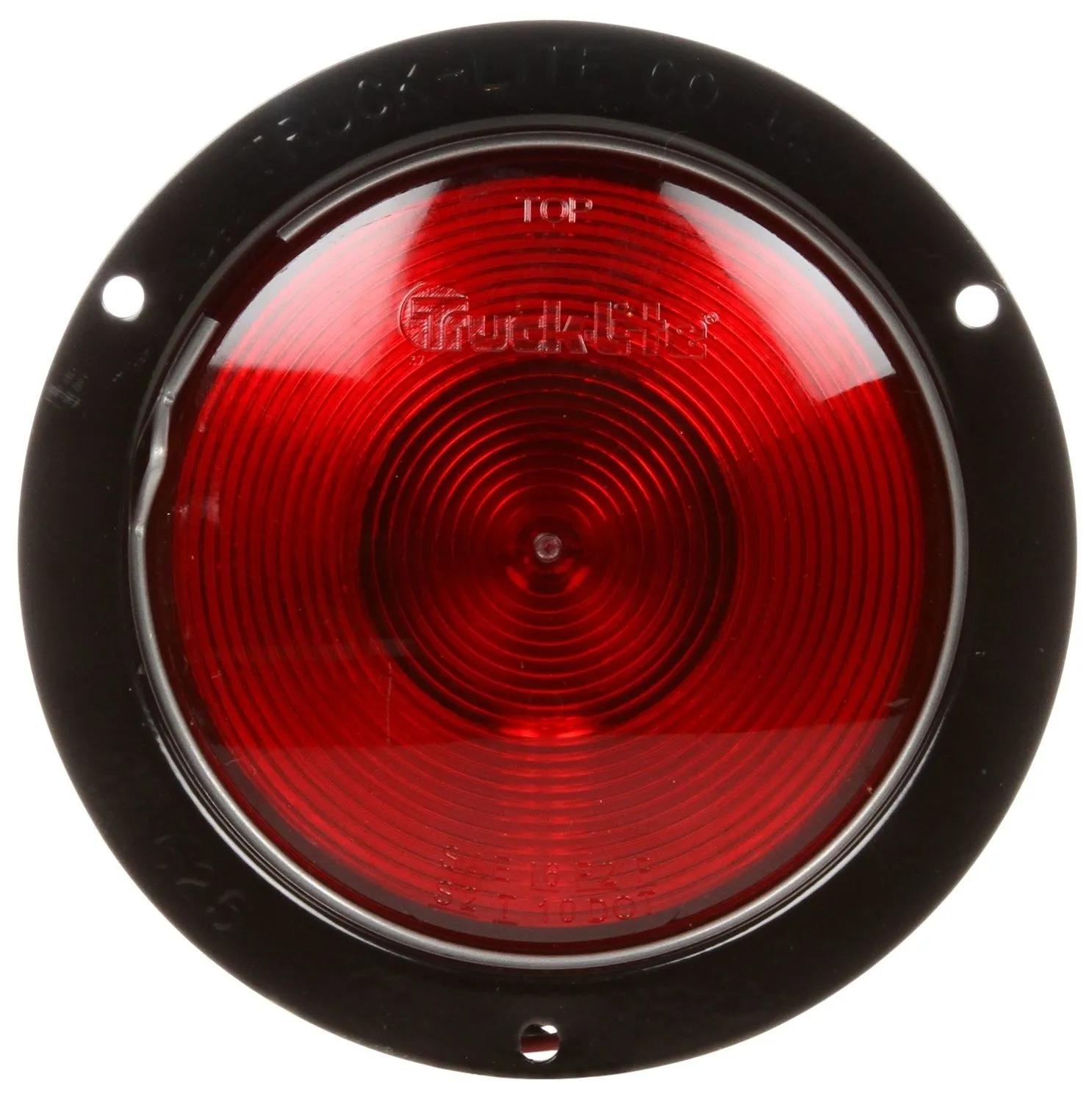

Stop/Tail/Turn Light, Red, Round
#TRL80334R
Product Overview
80 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Black Flange Mount, Hardwired, Blunt Cut, 12V, Kit
Features & Benefits
- Mounts flush to vehicle
- Retaining ring allows for easy bulb replacement
Specifications
| Amps | 0.59 amp to 2.1 amp |
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Double Contact |
| Current Major | 2.1 amp |
| Current Minor | 0.5 amp |
| Depth | 1-5/8 in (4.14 cm) |
| Diamond Shell (Y/N) | No |
| Function | I, S, T, P2, P3 |
| Height | 5-3/8 in (13.67 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 5-3/8 in (13.67 cm) |
| Lens Material | Polycarbonate |
| Material | Stainless Steel |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034 002 013 |
| Volt | 12V |
| Width | 5-3/8 in (13.67 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 45085 |
| 7652655 |
| 502325 |
| 841380334R |
| 937003412 |
| 402743 |
| 80334R |
| M425 |
| M4253 |
| V413 |
| HT50602818 |
| TL80334R |
| TLD80334R |
| MTL08033400R |
| ST47RB |
| LI071005 |
| LT1610R |
| 4212 |
| 42123 |
| 4222 |
| 80334R1 |
| 80334R3 |
| 3099999 |
| 6-41001 |
| 765-2655 |
| 80334R-TL |
| 8413-80334R |
| LIT80334R |
| PM425 |
| TL 80334R |
| TL 80334R |
| TL-80334R |
| TRU80334R |
| 189-03-122 |
| 3535 |
| 413/425 |
| 4662 |
| 50232GR0 |
| M413 |
| PT4212RF |
| T430BLKB |
| TL4300R |
| 413 |
| 425 |

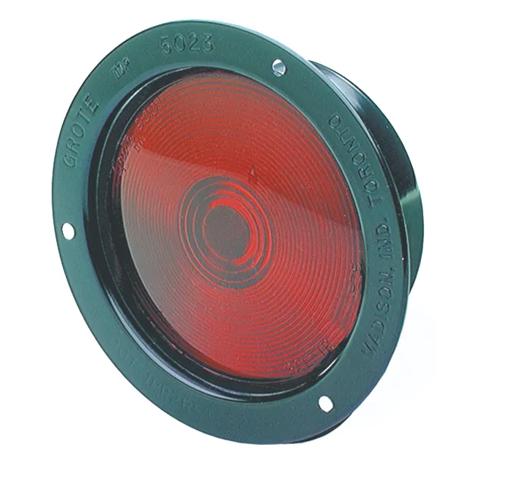

| 50232 |
| TG502325 |
| ST40RS |
| 502323 |
| 7652655B |
| 765-2655-B |
| 50232-3 |
