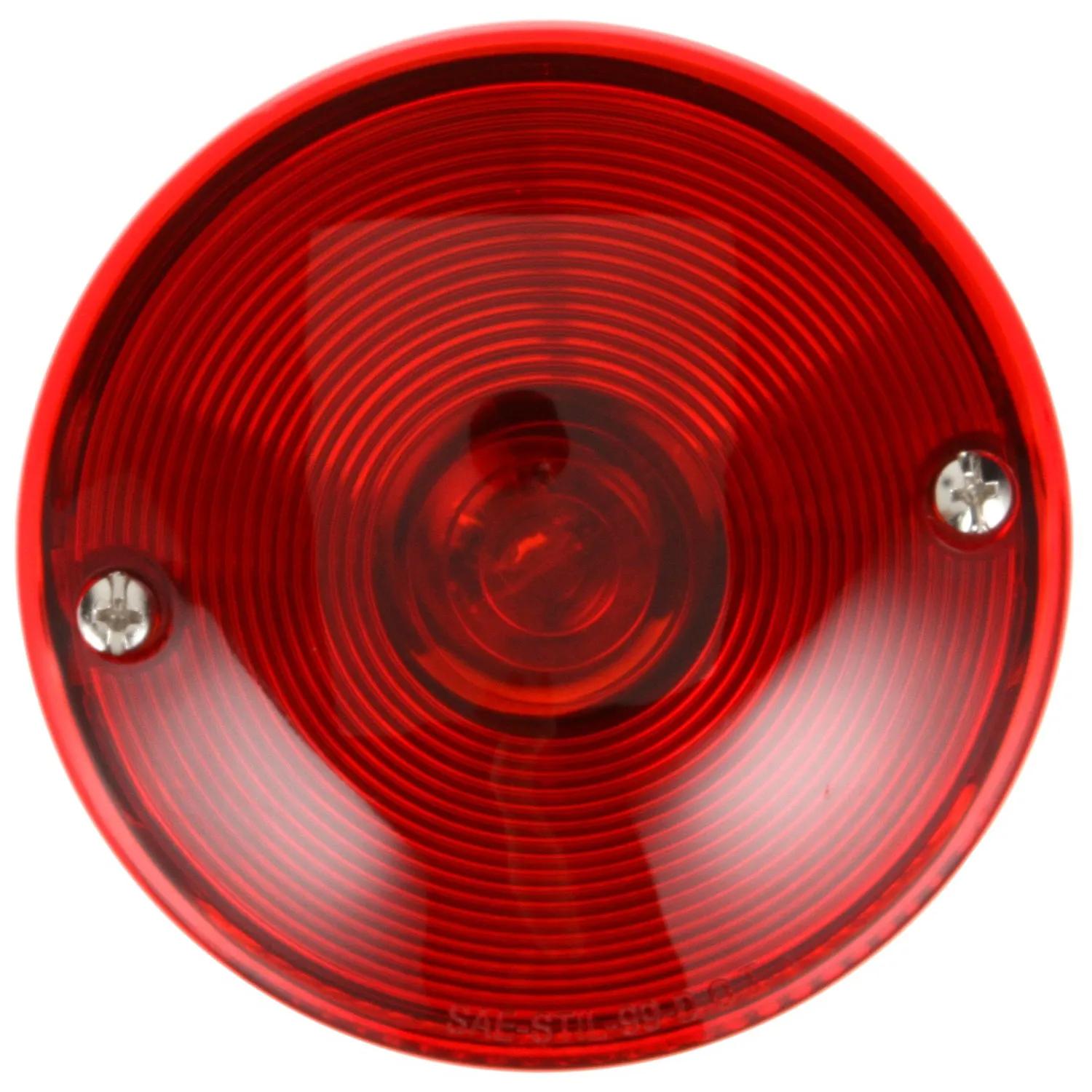

Stop/Tail/Turn Light, Red, Round
#TRL80461R
Product Overview
80 Series, Incandescent, Red/White, Round, 1 Bulb, Stop/Turn/Tail, Black Bracket Mount, Hardwired, Stripped end, 12V
Features & Benefits
- Universal or 2 bolt mount 1/4"
- -20
- Dual screws secure lens
Specifications
| Color | Red & White |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.25 amp |
| Current Minor | 1.44 amp |
| Depth | 3-5/32 in (8.03 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 4-1/4 in (10.8 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 3-27/32 in (9.75 cm) |
| Lens Material | Acrylic |
| Material | Steel |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 4-1/4 in (10.8 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 428 |
| 841380461R |
| 50872 |
| 80461R |
| HT50603157 |
| TL80461R |
| TLD80461R |
| TRU80461R |
| 8413-80461R |
| LIT80461R |
| TL 80461R |
| TL 80461R |
| TL4404L |
| 50872GR0 |
| LT1630R |
| M428 |
| PT8428S |
| 3157 |
