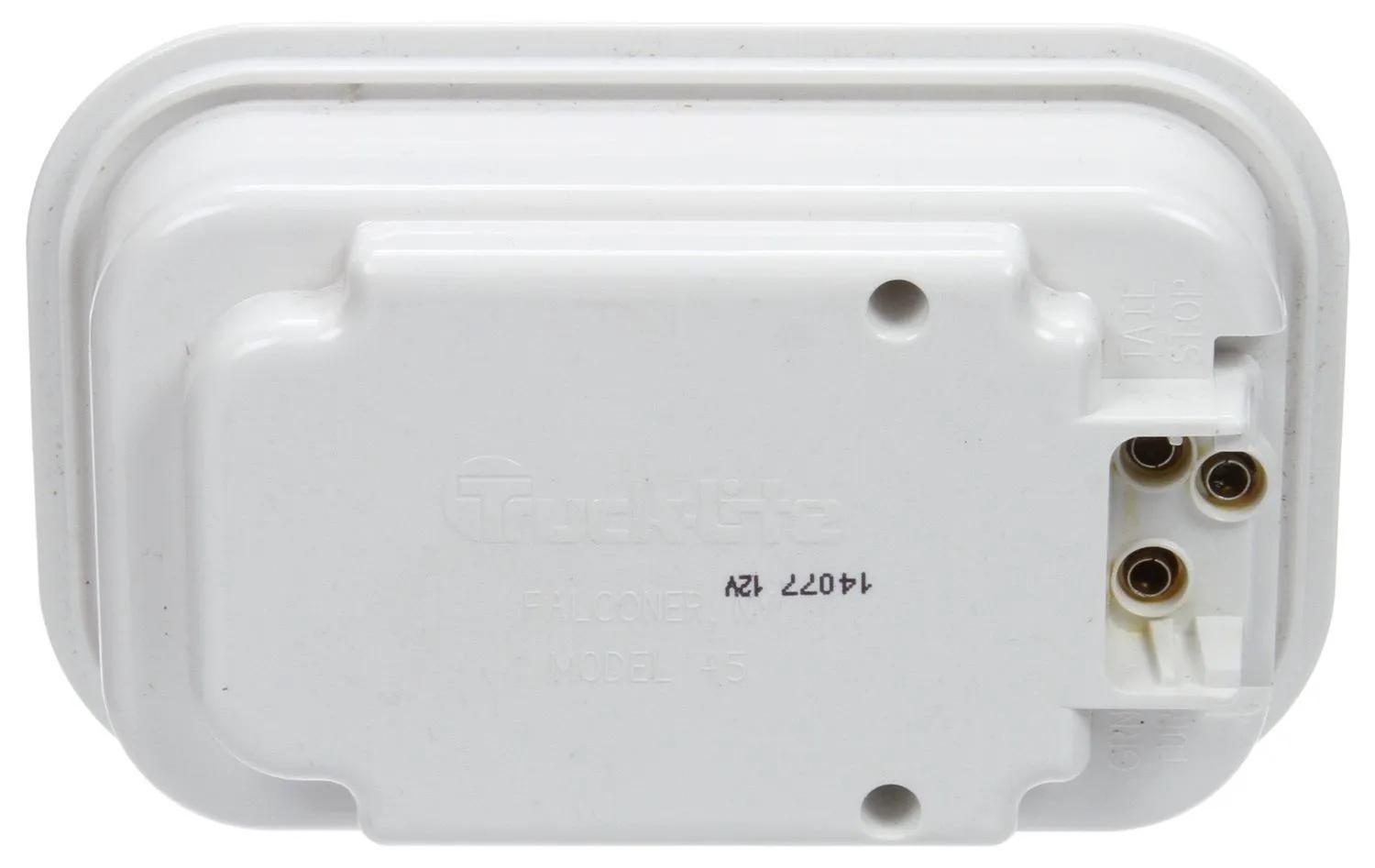

High Mounted Stop Lights, Red, Rectangular
#TRL45207R
Product Overview
45 Series, CHMSL Products, Incandescent, High Mounted Stop Light, 1 bulb, Rectangular Red Polycarbonate, PL-3, 12V
Features & Benefits
- Features high mount stop function when center mounted on the top rear of the vehicle
- Heavy duty shock-mounted bulb
- Recommended for use in center high mounted stop lamp applications
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Current Major | 1.44 amp |

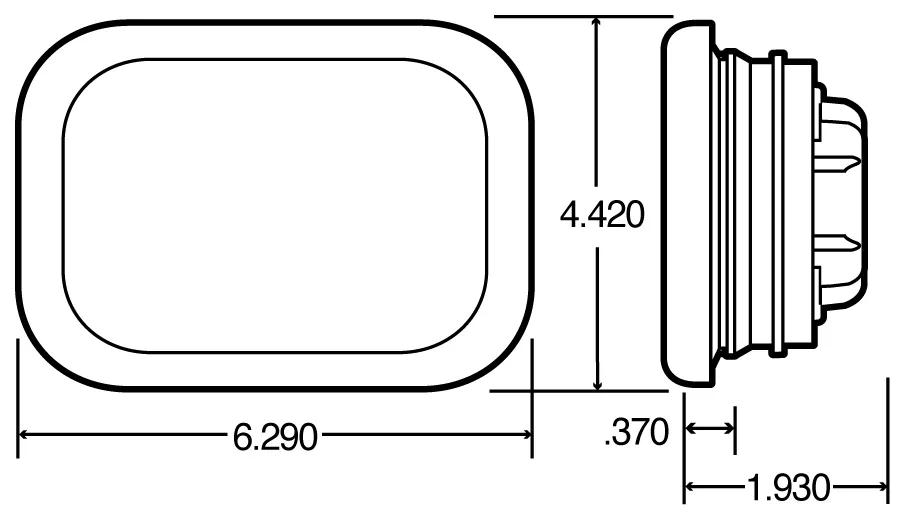

| Depth | 1-15/16 in (4.93 cm) |
| Height | 4-27/64 in (11.23 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 6-19/64 in (16 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | High Mounted Stop Light |
| VMRS Code | 034-002-040 |
| Volt | 12V |
| Width | 6-19/64 in (16 cm) |
Interchanges & Equivalent parts:
| 45207R |
| 841345207R |
| HT50602662 |
| TL45207R |
| TLD45207R |
| TRU45207R |
| 8413-45207R |
| LIT45207R |
| TL 45207R |
| TL 45207R |
