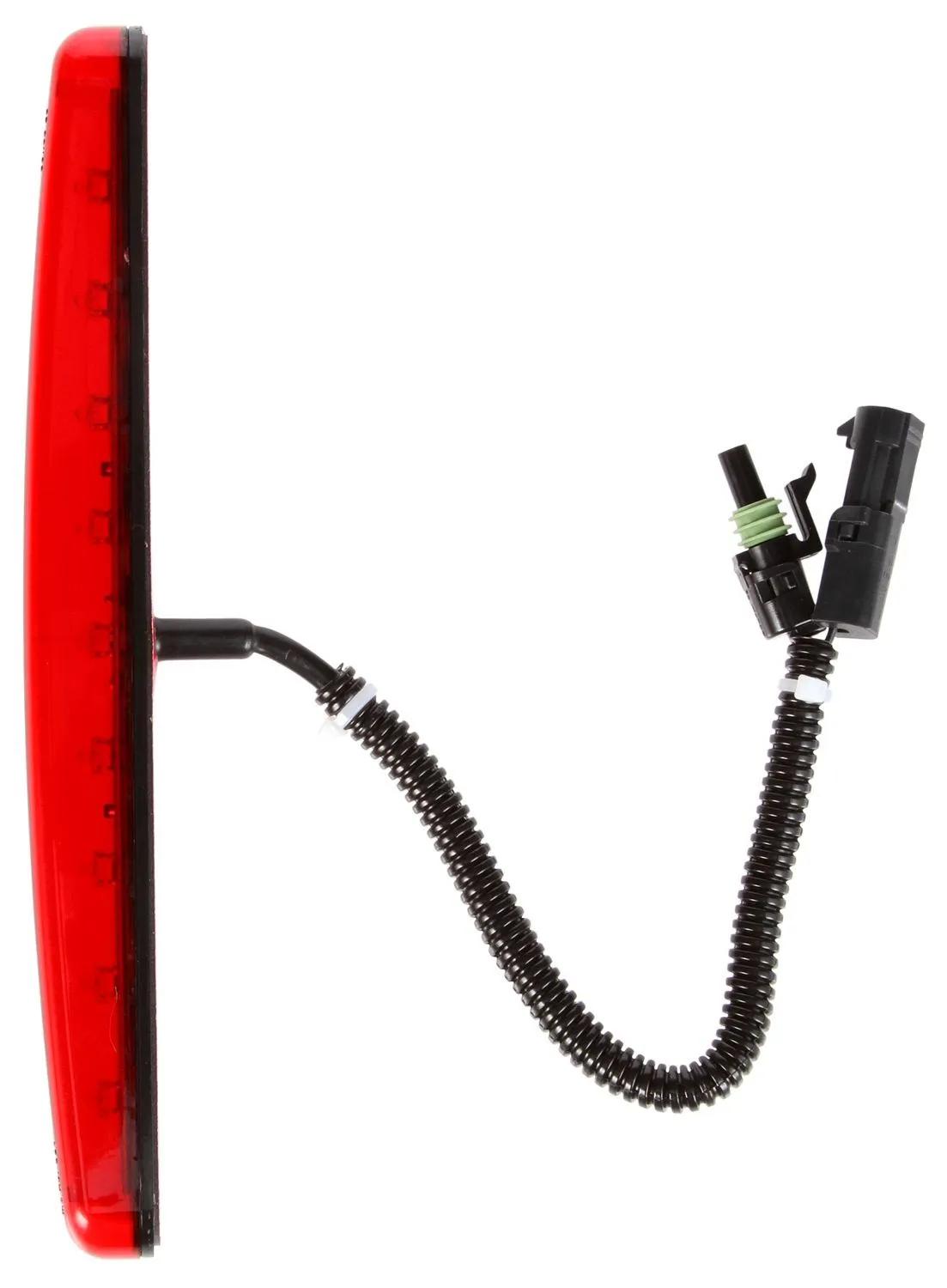

High Mounted Stop Light, Red, Rectangular
#TRL92101
Product Overview
LED, High Mounted Stop Light, 9 Diode, Oval Red Polycarbonate, Adhesive Mount, Hardwired, Packard Connector, 12V
Features & Benefits
- Slim lamp welcomes applications where space is at a premium
- Adhesive back adheres to mounting surface without the need for installation screws or brackets
- Peel and stick design makes for a tight, unbreakable seal
- DOT/SAE compliant
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | High Mounted Stop Light |
| Current Major | 0.23 amp |
| Depth | 1 in (2.54 cm) |
| Height | 7/8 in (2.24 cm) |
| Kit (Y/N) | No |
| Length | 9-19/32 in (24.36 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Adhesive Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Packard Connector |
| Position | Left or Right Sides |
| Shape | Rectangular |
| Single or Dual | Single Face |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | High Mounted Stop Light |
| VMRS Code | 034-004-256 |
| Volt | 12V |
| Width | 9-19/32 in (24.36 cm) |
| Wire Gauge | 20 ga |
Interchanges & Equivalent parts:
| TL 92101 |
| 53582GR0 |
| 92101TLT |
| TLD92101 |
| 92101 |
