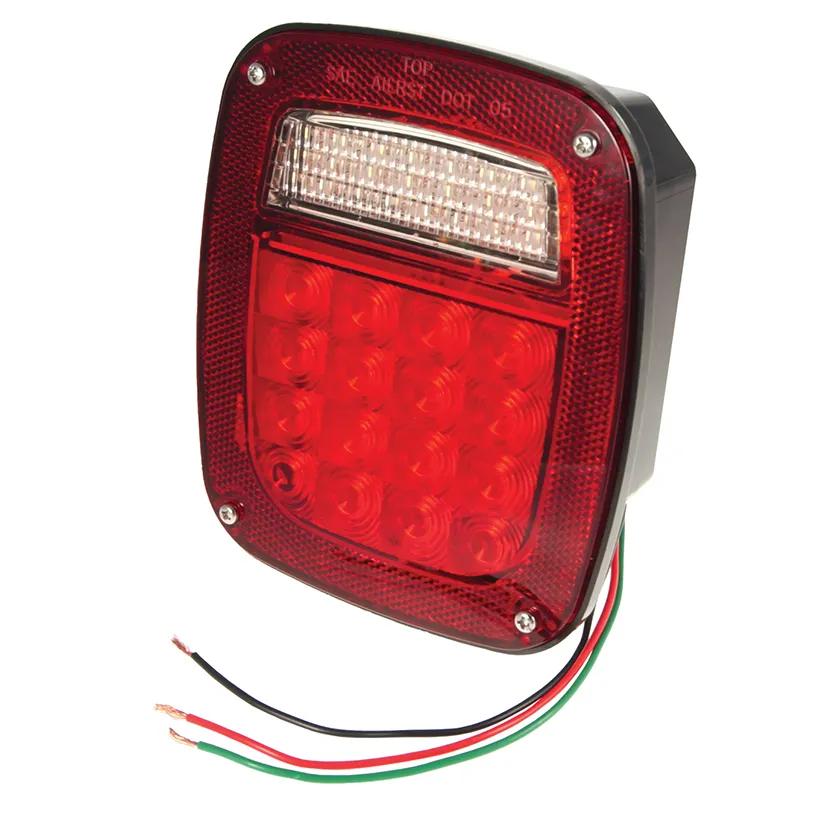

Hi Count® Combination Stop/Tail/Turn Light, LED, Red & White, Square, Stud Mount, Blunt Cut
#GROG5082
Product Overview
Uses LEDs for stop, tail, turn, and back-up functions with a concentric multiple diode design. Features a gasket between lens and housing to protect against moisture intrusion. Includes reflector and mounting hardware for easy installation. Potting protects against vibration and corrosion. Directly replaces Jeep® Wrangler® lamps through 2006.Stop Tail Turn Light, LED Bulb, Blunt Cut Connection Type, Stud Mounting, Black Housing, Red Lens, Red, White Light Output, Acrylic Lens, Polycarbonate Housing, 0.12 to 34 A Current Rating, A, I, R(2), S, T Light Function, Hi Count®, Square, FMVSS 108 Standards, 12 V, 2 Years Warranty
Features & Benefits
- License plate omission simplifies setup process
- Bright red light enhances visibility on the road
- Tailored for right-hand side for precise fitment
- Hi count leds provide increased visibility for safety
- Weather-resistant construction for long-lasting performance
- Versatile design suitable for stop, turn, and tail functions
- Long-lasting LED technology ensures durability and reliability
- 16 stop/tail/turn diodes, 22 backup diodes and 4 license diodes
- 3 stud mounting design incorporates ground function
- All functions utilize LED technology
- Circuit-board protection is compatible with existing flasher technology
- Gasket between lens and housing protects against moisture intrusion
Specifications
| Bulb Type | LED |
| Color | Red & White |
| Connection Type | Blunt Cut |
| Housing Color | Black |
| Lens Color | Red & White |
| Material | Polycarbonate/Acrylic |
| Mounting Type | Stud |
| Plug Side One | PL-2 (Stripped End) |
| Shape | Square |
| Standards | FMVSS 108 |
| Style | Hi Count LED Stop/Tail/Turn Box Lamp Without License, RH |
| VMRS Code | 034-002-013 |
| Voltage Rating | 12 V |
| Warranty | 2 Years |
| Current Rating | 0.12 to 34 A |
| Light Output Color | Red, White |
| Light Function | A, I, R(2), S, T |
| Product Line | Hi Count® |
| Product Category | Stop Tail Turn Light |
Interchanges & Equivalent parts:
| G5082-3 |
| G50823 |
| GROG5082-3 |
| GROG50823 |
| G5082GR0 |
| GROG5082 |
| ZBJDG5082 |
| 7376-G5082 |
| GRO G5082 |
| GRTG5082 |
| PTL8000 |
| STL60RB |
| M42220 |
| 725246 |
| 740233 |
| 422345 |
| G5082 |
