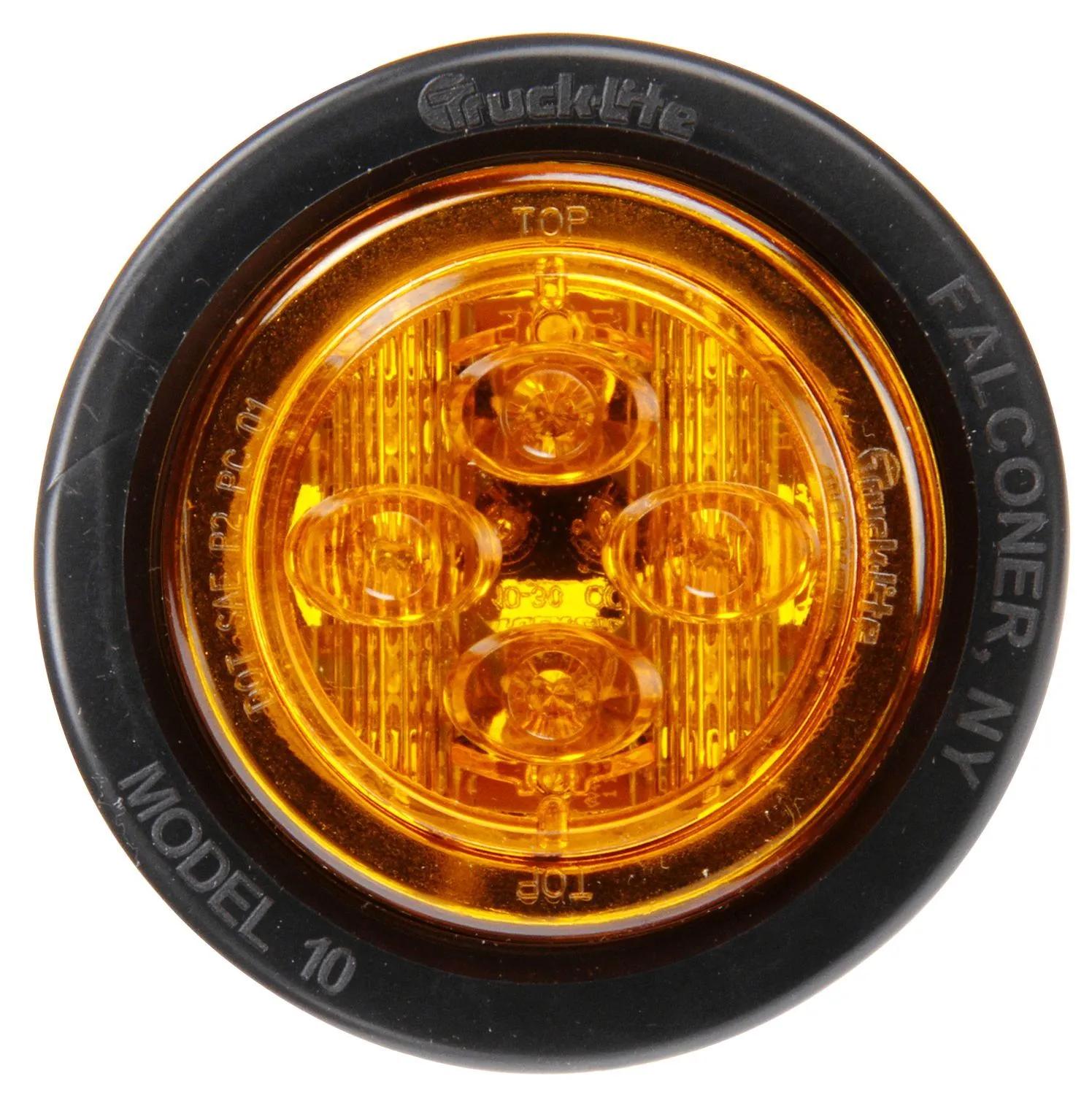

Marker Clearance Light, Amber & Yellow, Round
#TRL10086Y
Product Overview
10 Series, Low Profile, LED, Yellow Round, 8 Diode, Marker Clearance Light, PC, Black PVC Grommet Mount, PL-10, .180 Bullet Terminal/Ring Terminal, 12V, Kit
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- Low-Profile design improves clearance and reduces risk of getting knocked off. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology protecting against damage from shock and vibration.
Specifications
| Couleur | Jaune |
| Taille commune | 2-1/2 in (6.35 cm) |
| Contient | Lampe, passe-fil, prise |
| Major actuel | 0,1 amp |
| Profondeur | 61/64 in (2.41 cm) |
| Coquille de diamant (O/N) | Non |
| Hauteur | 2-35/64 in (6.48 cm) |
| Couleur du boîtier | Noir |
| Trousse (O/N) | Yes |
| Longueur | 2-1/2 in (6.35 cm) |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Matériau de montage/garniture | PVC |
| Type de support | Montage à oeillet |
| Nombre de câbles | 2 |
| Fiche #1 | PL-10, Female |
| Fiche #2 | .180 Bullet, Standard |
| Réfléchissant (O/N) | Non |
| Séries | 10 Series |
| Forme | Rond |
| Technologie | LED |
| Type | Marker Clearance Light |
| Code VMRS | 034-004-253 |
| Volt | 12V |
| Largeur | 2-35/64 in (6.48 cm) |
| Calibre de(s) fil(s) | 16 ga |
Interchanges & Equivalent parts:
| 10086Y |
| 91400 |
| 970022656 |
| 841310086Y |
| 66850 |
| EL01509 |
| TL10086Y |
| TLD10086Y |
| 163622943 |
| 47233 |
| GRT47233 |
| 163KA |
| LIT10086Y |
| TL 10086Y |
| TL 10086Y |
