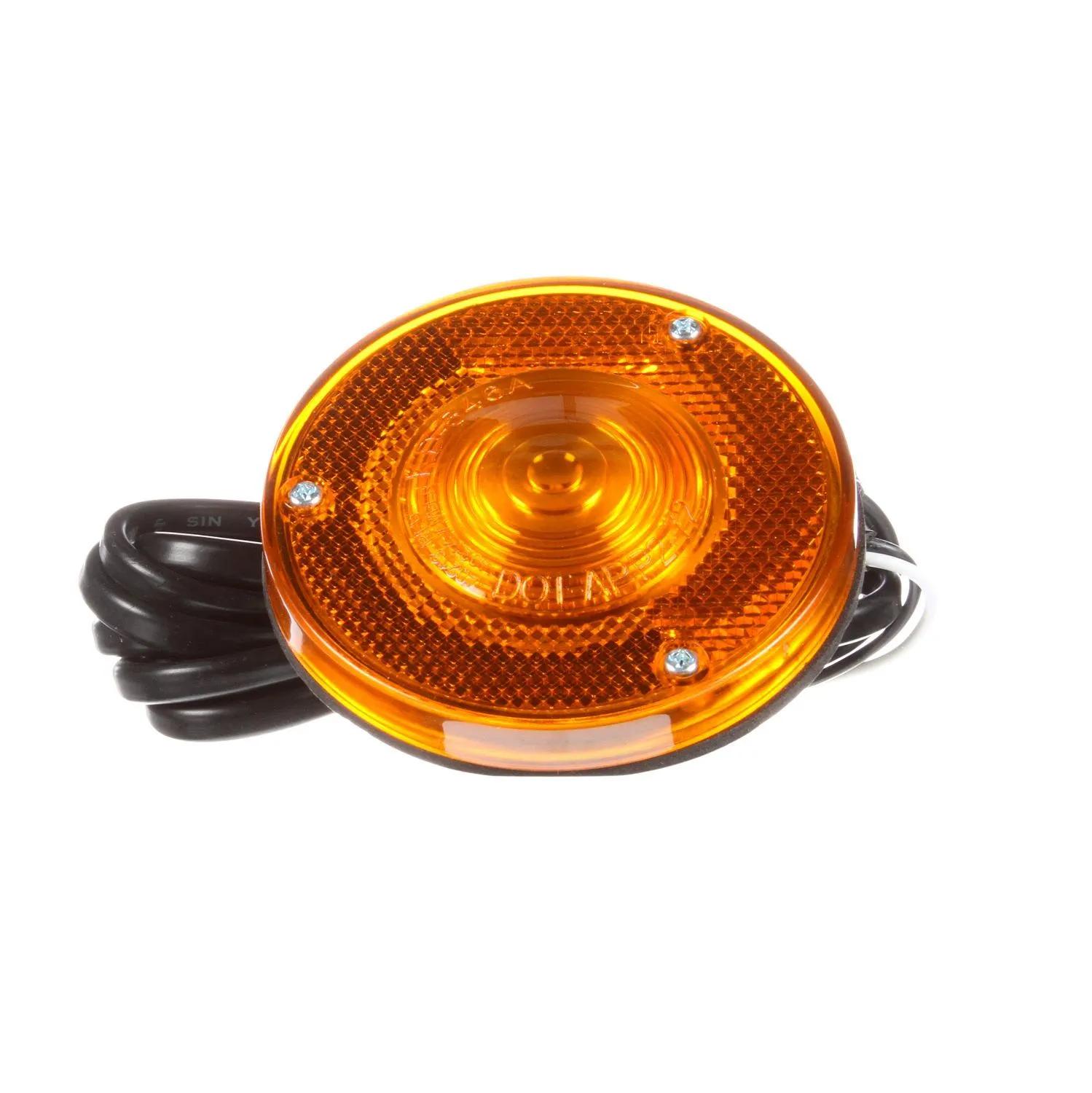

Marker Clearance Light, Amber & Yellow, Round
#TRL1590A
Product Overview
Signal-Stat, Incandescent, Yellow Round, 1 Bulb, Marker Clearance Light, P2, 2 Stud Mount, Reflectorized, Hardwired, Ring Terminal, 12V
Features & Benefits
- Mack #38MO343RP3
- Mack replacement marker lamp with reflector meets legal requirements for reflector when mounted between 15 to 60 inches from ground level
- 93'' wiring harness for use on fiberglass fenders
- Cadmium plated steel housing
Specifications
| Color | Amber |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.35 amp |
| Depth | 2 in (5.08 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-7/16 in (8.74 cm) |
| Kit (Y/N) | No |
| Length | 3-7/16 in (8.74 cm) |
| Lens Material | Acrylic |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Ring Terminal |
| Reflectorized (Y/N) | Yes |
| Series | Signal-Stat |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 3-7/16 in (8.74 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 38M0343RP3 |
| 84131590A |
| SIG1590A |
| TLD1590A |
| 1590A |
| TL 1590A |
| TL1590A |
| D1590A |
| 1348AY93 |
| 1590AS1G |
| 8413-1590A |
| LIT1590A |
