Feu de gabarit, ambre et jaune, rond
#TRL20316Y
Sommaire du produit
Incandescent, rond jaune, 1 ampoule, clignotant latéral, montage sur support, câblé, balle .180, 12 V, kit
Caractéristiques et avantages
- Features snap-in lens with a 90 maximum edge visibility
- Features side turn function, with two versions also meeting marker/clearance requirements
Spécifications
| Color | Jaune |
| Common Size | 2 in (5.08 cm) |
| Contents | Lampe |
| Current Major | 2,1 amp |
| Current Minor | 0,5 amp |

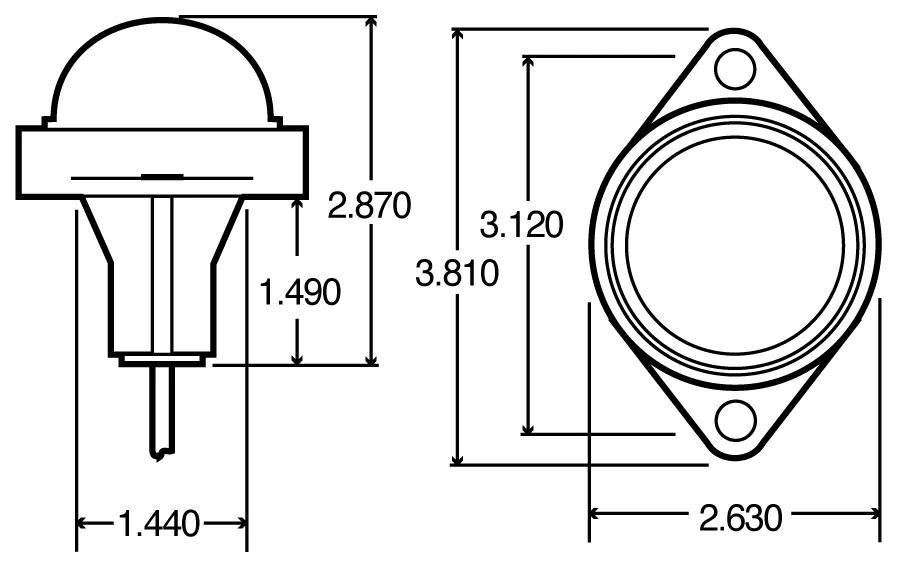

| Depth | 2-7/8 in (7.32 cm) |
| Height | 2-5/8 in (6.68 cm) |
| Housing Color | Blanc |
| Kit (Y/N) | Yes |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Montage par support |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Position | Side |
| Reflectorized (Y/N) | Non |
| Series | 20 Series |
| Shape | Rond |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technologie | Incandescent |
| Type | Marker Clearance Light |
| Code VMRS | 034-003-071 |
| Volt | 12V |
| Largeur | 3-13/16 in (9.68 cm) |
| Calibre de(s) fil(s) | 18 ga |
Interchanges et pièces équivalentes:
| 841320316Y |
| 937001210 |
| 755 |
| 808950 |
| HT50602214 |
| TL20316Y |
| TLD20316Y |
| TRU20316Y |
| 20316Y |
| 16240 |
| 14200374 |
| 8413-20316Y |
| LIT20316Y |
| TL 20316Y |
| TL 20316Y |
