Marker Clearance Light, Amber & Yellow, Round
#TRL30050Y
Product Overview

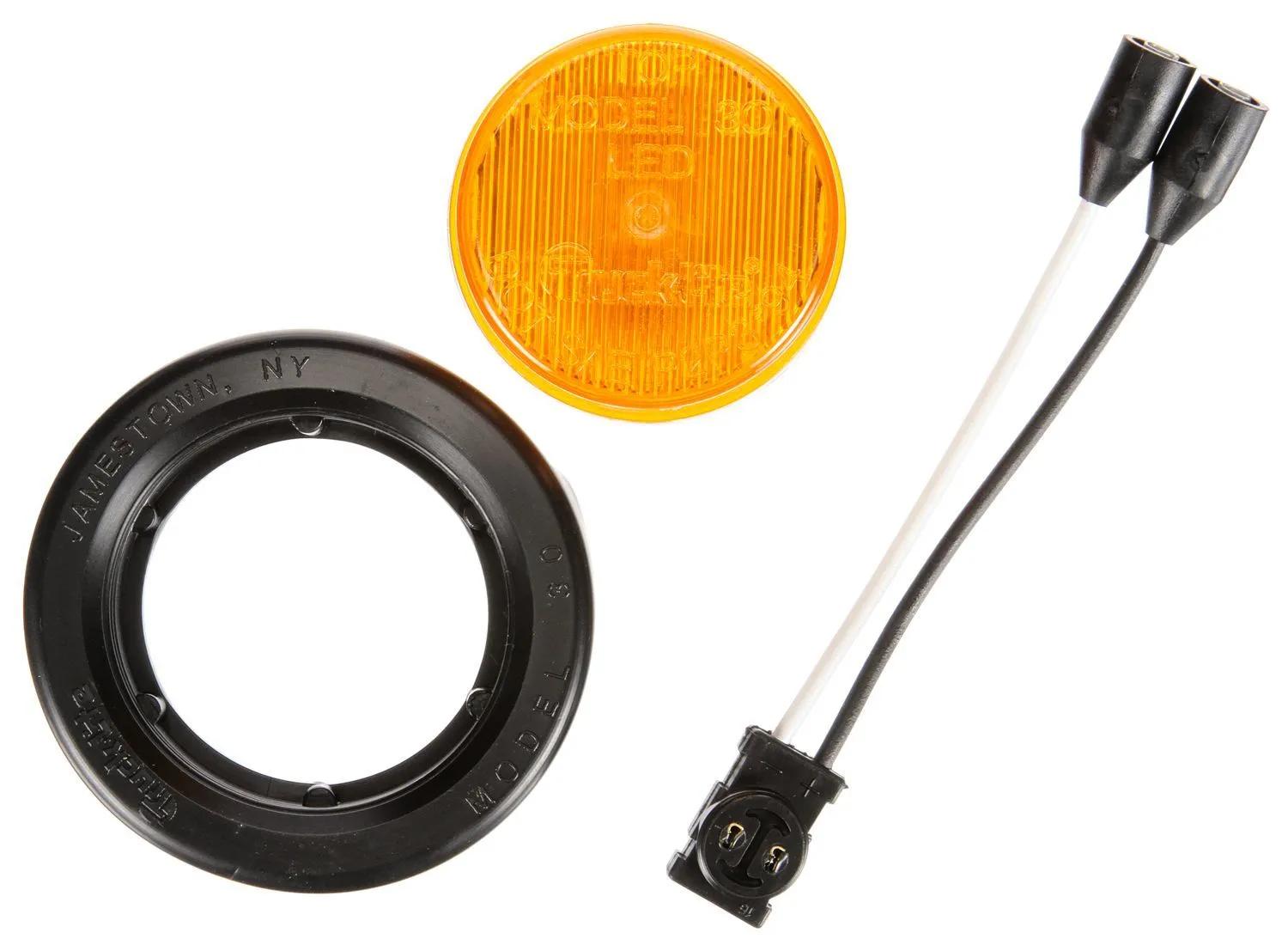

30 Series, LED, Yellow Round, 2 Diode, Marker Clearance Light, P3, Black PVC Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit
Features & Benefits
- P2/P3 Rated marker & clearance lamps are compliant for 90 degree
- Low-profile design to reduce damage from being hit or knocked off.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Grommet, Plug |
| Current Major | 0.05 amp |
| Depth | 1-13/32 in (3.58 cm) |
| Diamond Shell (Y/N) | No |
| Dimension | 90mm (dia.) x 23mm (d) |
| Height | 2 in (5.08 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting System | Drill Hole Grommet |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | PL-10, Female |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2 in (5.08 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5153378001 |
| 30050Y |
| 4711294100 |
| 47113 |
| 893949120 |
| 841330050Y |
| 701117206 |
| 94100 |
| 402471 |
| 802294 |
| 71230599 |
| 9029A32455 |
| 810000724 |
| A2842 |
| V164KA |
| HT50601679 |
| TL30050Y |
| TLD30050Y |
| TRU30050Y |
| 16071A |
| 30050Y1 |
| 1035AK |
| 30050Y-TL |
| 8413-30050Y |
| 9500-88-3 |
| KTL2000-4A |
| LIT30050Y |
| TL 30050Y |
| TL 30050Y |
| TL-30050Y |
| TLT 30050Y |
| 47112GR0 |
| 94100GR0 |
| TKL30050Y |
| 310768 |
| 471139212066850 |
| 471139410066850 |
