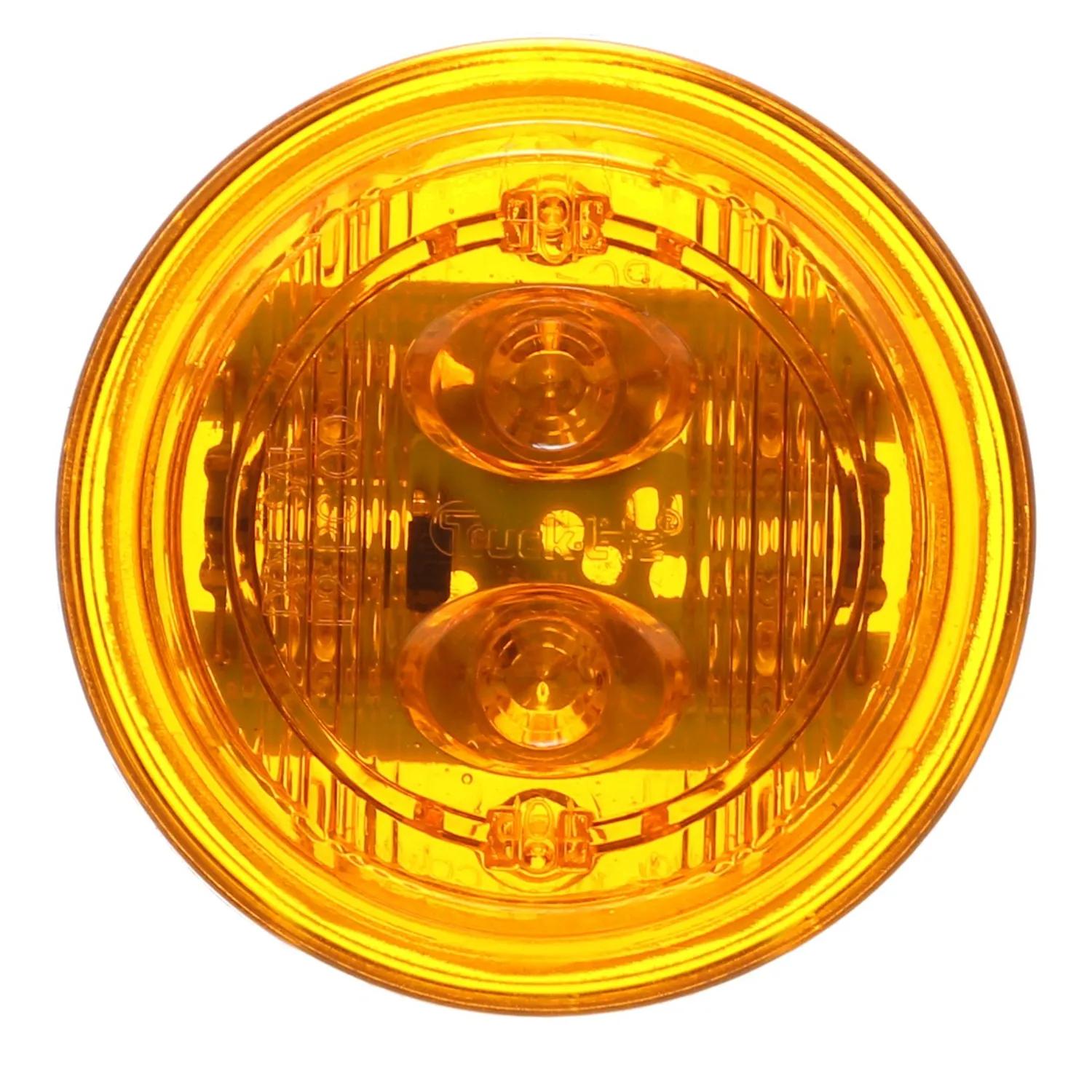

Marker Clearance Light, Amber & Yellow, Round
#TRL30086Y
Product Overview
30 Series, Low Profile, LED, Yellow Round, 6 Diode, Marker Clearance Light, PC, Black PVC Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- Low-Profile design improves clearance and reduces risk of getting knocked off. Most Advanced and cost effective 2" Marker & Clearance light on the market.
- Designed with LED lighting technology protecting against damage from shock and vibration.
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Grommet, Plug |
| Current Major | 0.12 amp |
| Depth | 1-11/32 in (3.4 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | PL-10, Female |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-1/4 in (5.72 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 841330086Y |
| 705201878 |
| TL30086Y |
| TLD30086Y |
| 30086Y1 |
| 127-16002KA |
| 8413-30086Y |
| LIT30086Y |
| TL 30086Y |
| TL 30086Y |
| 30086Y |
