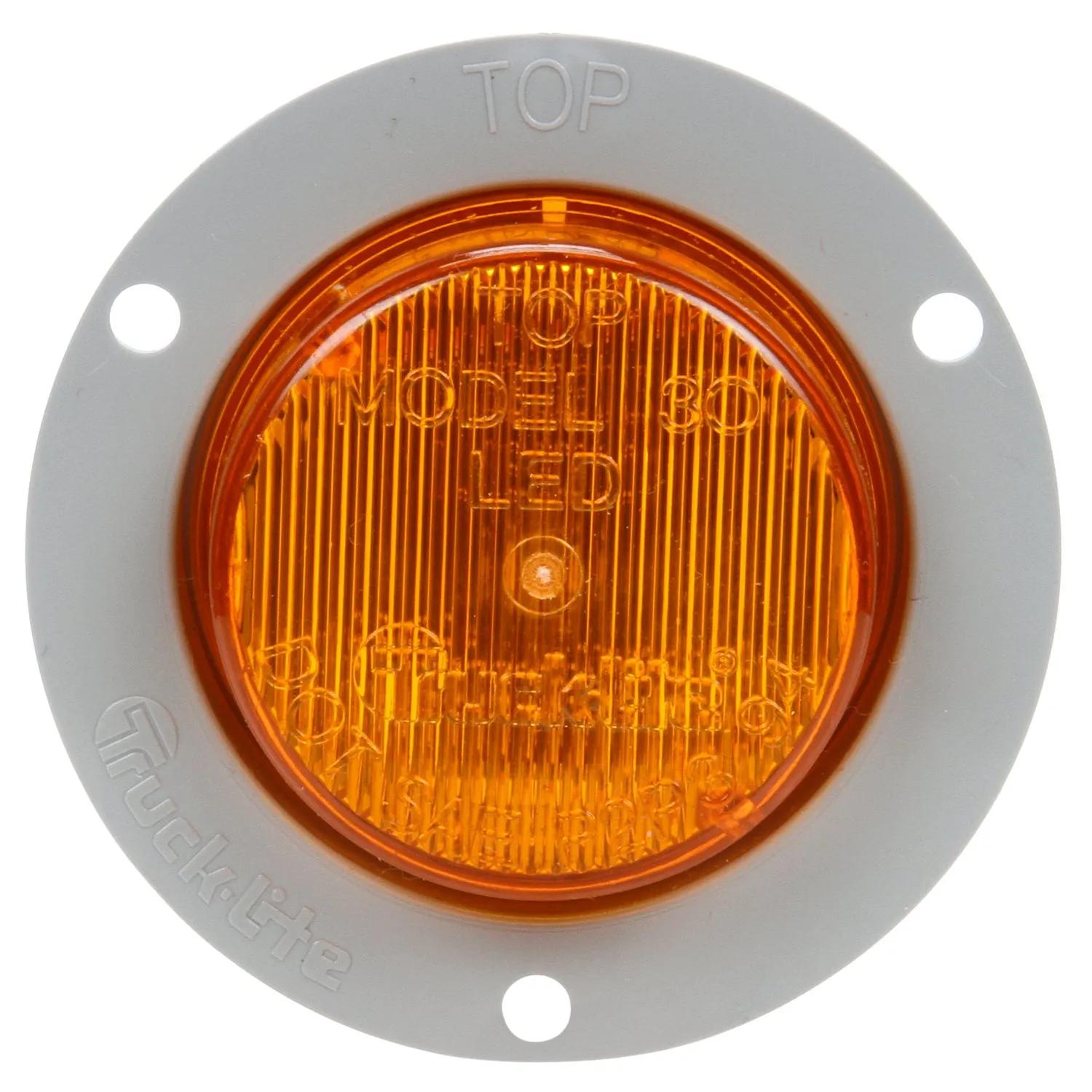

Feu de gabarit, ambre et jaune, rond
#TRL30251Y
Sommaire du produit
Série 30, LED, Jaune Rond, 2 Diodes, Feu de gabarit, P3, Montage sur bride en polycarbonate gris, Fit 'N Forget M/C, 12V
Caractéristiques et avantages
- P2/P3 Rated marker & clearance lamps are compliant for 90 degree
- Low-profile design to reduce damage from being hit or knocked off.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Spécifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Gray Flange |
| Current Major | 0.05 amp |
| Depth | 41/64 in (1.63 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-15/16 in (7.47 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-15/16 in (7.47 cm) |
Interchanges et pièces équivalentes:
| 41301343 |
| 14200430 |
| 30251Y |
| 1035AF |
| 53001 |
| 43150 |
| 814330251Y |
| 69040133 |
| 4711243150 |
| 47113 |
| 841330251Y |
| 40133 |
| 9489A0108 |
| EC329233 |
| HT50601702 |
| TL30251Y |
| TLD30251Y |
| TRU30251Y |
| LNB1580132 |
| M164FA |
| 30251Y3 |
| 21053399 |
| 8413-30251Y |
| LEDF2000-4A2 |
| LIT30251Y |
| TL 30251Y |
| TL 30251Y |
| TLT 30251Y |
| 47113GR0 |
| GRT47113 |
| TKL30251Y |
| 10008379 |
