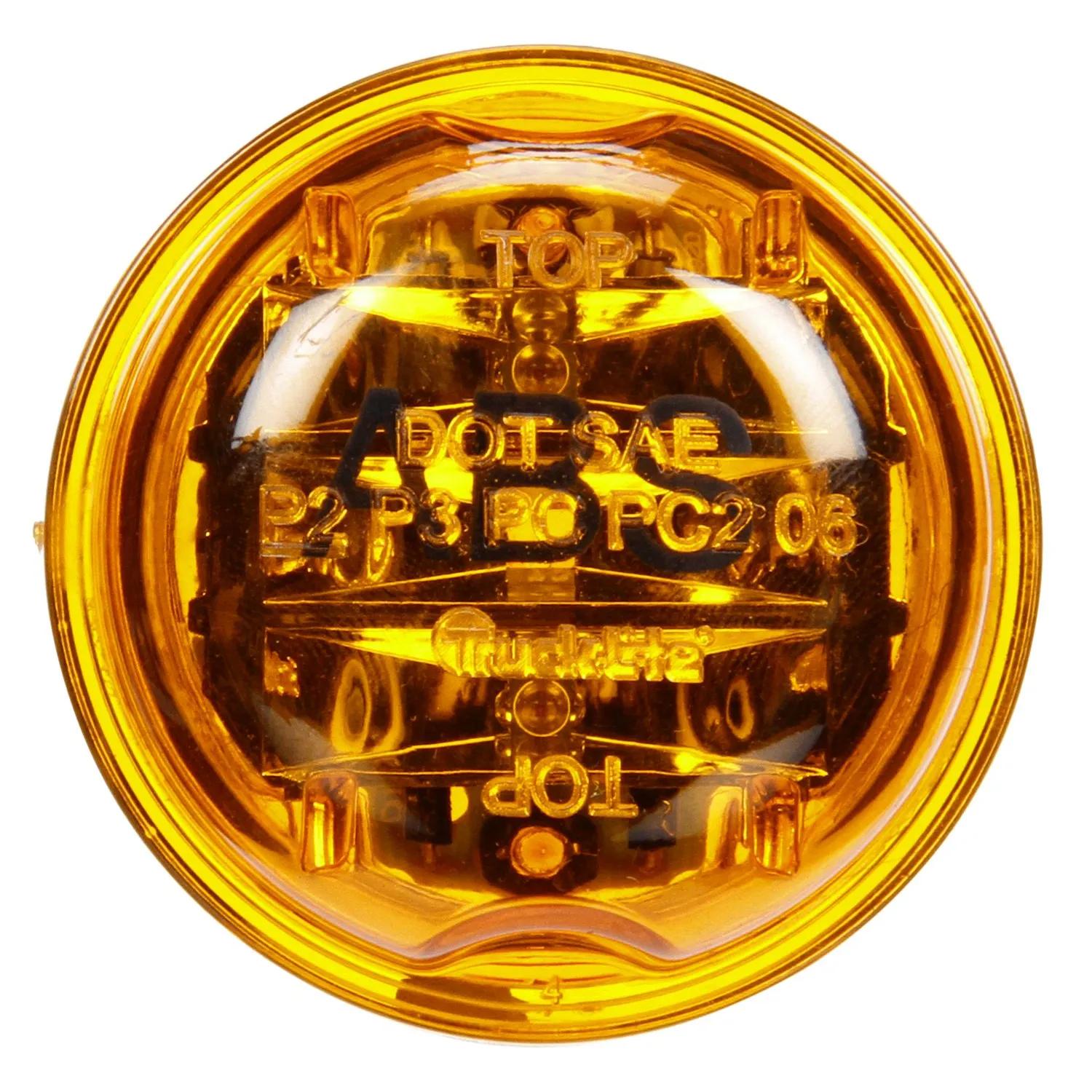

Marker Clearance Light, Amber & Yellow, Round
#TRL30264Y
Product Overview
30 Series, ABS & High Profile, LED, Yellow Round, 8 Diode, Marker Clearance Light, PC2, PL-10, 12V
Features & Benefits
- Options available with SAE PC Rating, allowing combined marker & clearance applications
- Most Advanced and cost effective 2" Marker & Clearance light on the market
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.1 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-15/64 in (5.66 cm) |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-15/64 in (5.66 cm) |
Interchanges & Equivalent parts:
| 41312549 |
| 14200687 |
| PQA491 |
| TL30264Y |
| TLD30264Y |
| E7089945 |
| 13281 |
| 30264Y |
| 8413-30264Y |
| LIT30264Y |
| TL 30264Y |
| TL 30264Y |
| 78433GR0 |
| GRT78433 |
| TKL30264Y |
| 40425 |
