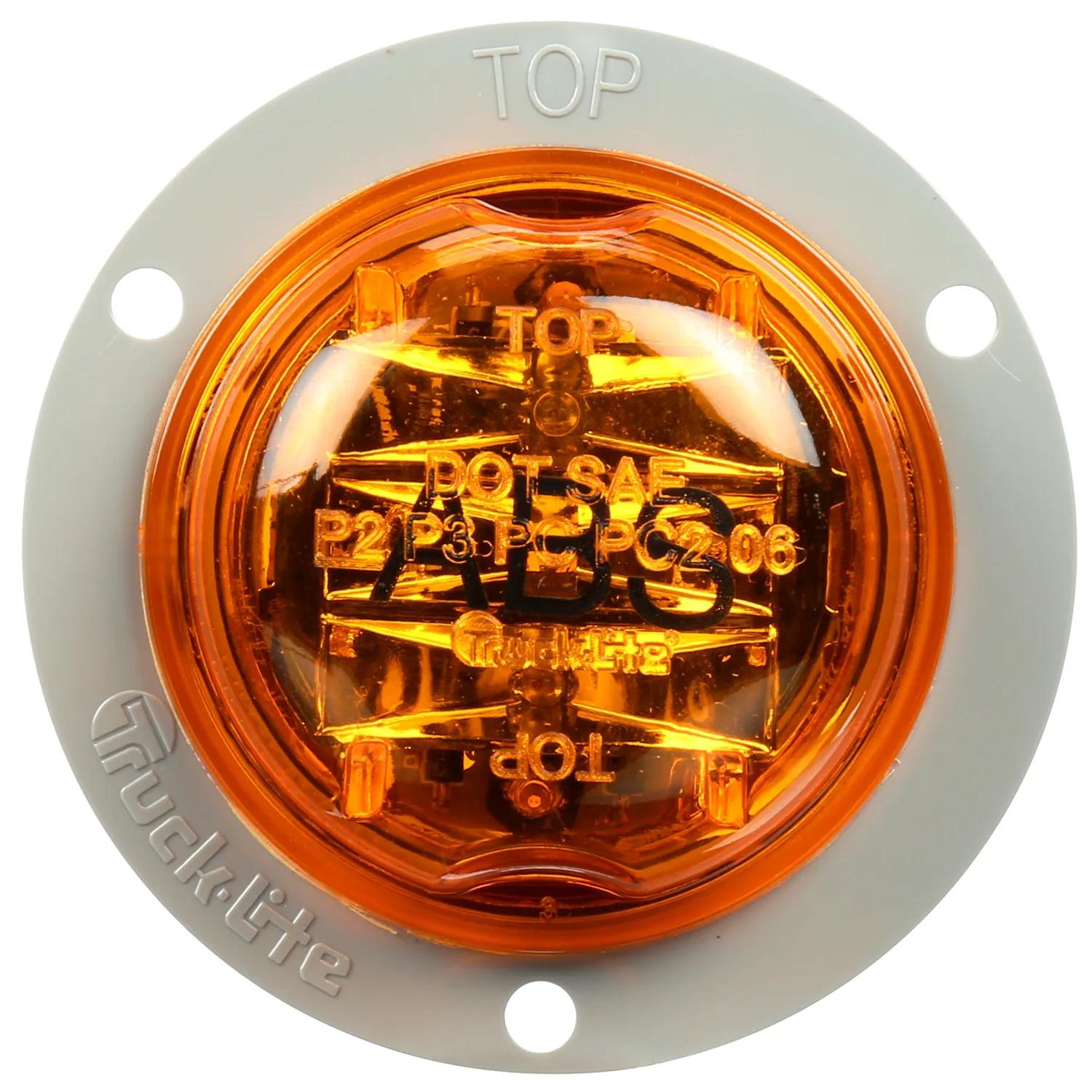

Marker Clearance Light, Amber & Yellow, Round
#TRL30269Y
Product Overview
30 Series, ABS, LED, Yellow Round, 8 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flange Mount, PL-10, 12V
Features & Benefits
- Options available with SAE PC Rating, allowing combined marker & clearance applications
- Most Advanced and cost effective 2" Marker & Clearance light on the market
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.1 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-59/64 in (7.42 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-59/64 in (7.42 cm) |
Interchanges & Equivalent parts:
| 10005508 |
| 14200690 |
| 30269Y |
| 5351526920 |
| 841330269Y |
| 40137 |
| TL30269Y |
| TLD30269Y |
| 2932385 |
| 8413-30269Y |
| 9563 |
| LIT30269Y |
| TKL30269Y |
| TL 30269Y |
| TL 30269Y |
