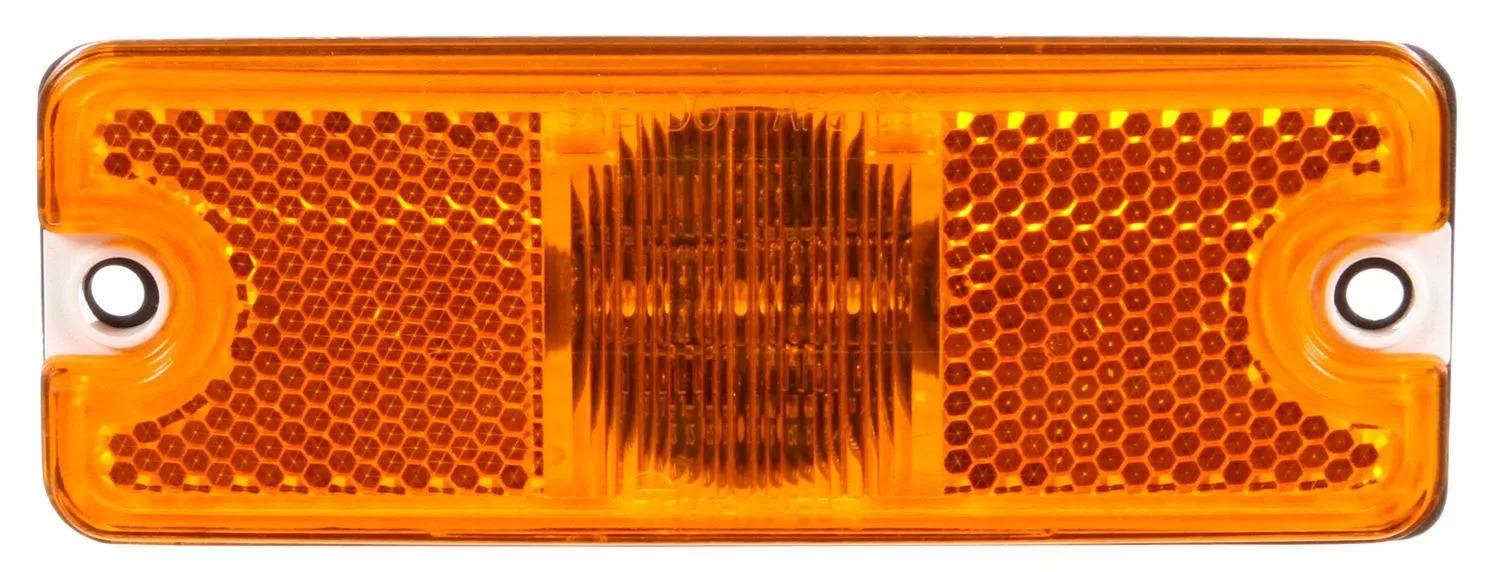

Marker Clearance Light, Amber, Rectangular
#TRL18070Y
Product Overview
18 Series, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, P2, 2 Screw, Reflectorized, Diamond Shell, Hardwired, Weather Pack/12010972, 12V, Kit
Features & Benefits
- Uses standard mounting holes and accessories
- Draws less current, allowing more power for other vehicle requirements
- OmniVolt versions also meet ECE standards
- Not suitable for PC requirements
Specifications
| Couleur | Jaune |
| Taille commune | 2 in (5.08 cm) |
| Contient | Lampe, Câblé |
| Major actuel | 0,05 amp |
| Profondeur | 1 in (2.54 cm) |
| Coquille de diamant (O/N) | Oui |
| Hauteur | 1-5/8 in (4.14 cm) |
| Couleur du boîtier | Jaune |
| Trousse (O/N) | Yes |
| Longueur | 4-1/2 in (11.43 cm) |
| Matériau de la lentille | Acrylic |
| Type de support | Montage par vis |
| Nombre de câbles | 2 |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | Metripack |
| Réfléchissant (O/N) | Oui |
| Séries | 18 Series |
| Forme | Rectangle |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technologie | LED |
| Type | Marker Clearance Light |
| Code VMRS | 034-004-253 |
| Volt | 12V |
| Largeur | 4-1/2 in (11.43 cm) |
| Calibre de(s) fil(s) | 18 ga |
| Longueur de fil | 4 po (10,16 cm) |
Interchanges & Equivalent parts:
| 3255320 |
| 18070Y |
| 8230263000 |
| 841318070Y |
| TL18070Y |
| TLD18070Y |
| 8413-18070Y |
| LIT18070Y |
| TKL18070Y |
| TL 18070Y |
| TL 18070Y |
