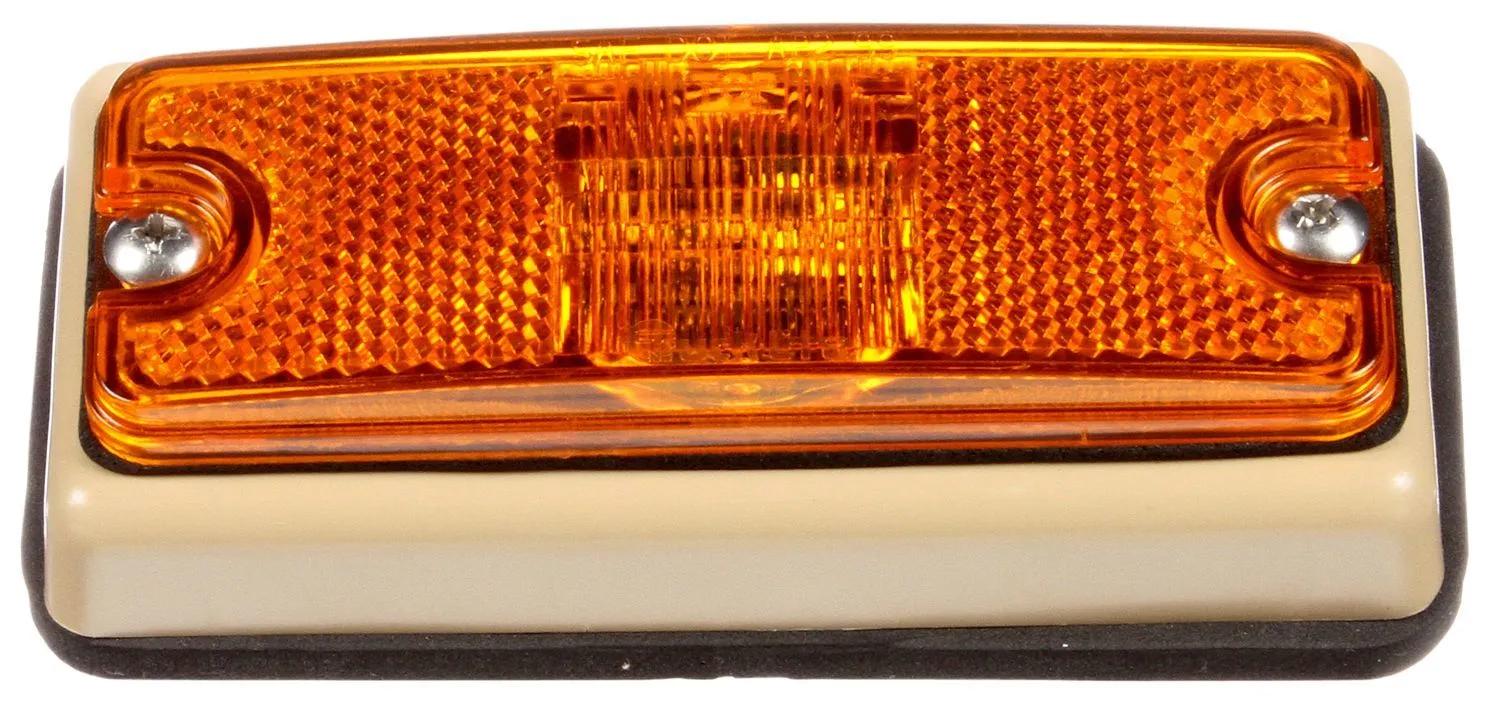

Marker Clearance Light, Amber, Rectangular
#TRL18088Y
Product Overview
18 Series, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, P2, 2 Screw Bracket Mount, Hardwired, Female Military Boot/Ring Terminal, 12-24V, Kit
Features & Benefits
- Complies with SAE J592 and J594 when mounted horizontally
- Brackets utilize standard military color scheme
- Complies with SAE J592 when mounted horizontally between 0 degrees to 34 degrees rollback
Specifications
| Couleur | Ambre |
| Taille commune | 2 in (5.08 cm) |
| Contient | Lampe, Câblé |
| Major actuel | 0,03 amp |
| Profondeur | 1-3/8 in (3.51 cm) |
| Coquille de diamant (O/N) | Non |
| Hauteur | 1-19/32 in (4.04 cm) |
| Couleur du boîtier | Fauve |
| Trousse (O/N) | Yes |
| Longueur | 4-1/2 in (11.43 cm) |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Type de support | Montage par support |
| Nombre de câbles | 2 |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | Female Military Boot |
| Réfléchissant (O/N) | Oui |
| Séries | 18 Series |
| Forme | Rectangle |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technologie | LED |
| Type | Marker Clearance Light |
| Code VMRS | 034-004-021 |
| Largeur | 4-1/2 in (11.43 cm) |
| Calibre de(s) fil(s) | 16 ga |
| Longueur de fil | 4 po (10,16 cm) |
Interchanges & Equivalent parts:
| 18088YTLT |
| LIT18088Y |
| TLD18088Y |
| 18088Y |
