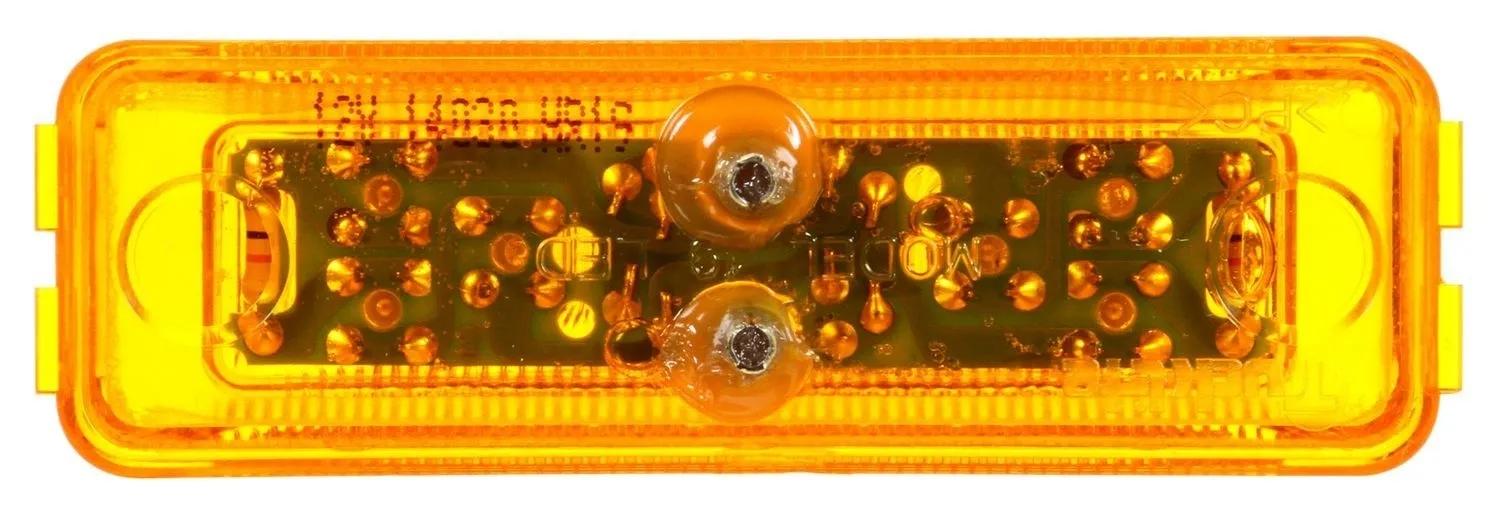

Marker Clearance Light, Amber, Rectangular
#TRL19275Y
Product Overview
19 Series, LED, Yellow Rectangular, 6 Diode, Marker Clearance Light, PC, 19 Series Male Pin, 12V
Features & Benefits
- Innovative optic design allows combination lamp to function as two
- Draws less current, allowing more power for other vehicle requirements
- Designed to fit applications requiring minimal space
- Must be mounted horizontally
Specifications
| Color | Amber |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.12 amp |
| Depth | 53/64 in (2.11 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-15/64 in (3.12 cm) |
| Kit (Y/N) | No |
| Length | 3-25/32 in (9.6 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 19 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 3-25/32 in (9.6 cm) |
Interchanges & Equivalent parts:
| 10010232014 |
| 41301338 |
| 1420056214200660 |
| 48873 |
| 19275Y |
| 46001309 |
| 841319275Y |
| 808726 |
| MCL69AB |
| HT50601638 |
| TL19275Y |
| TLD19275Y |
| S19AA001 |
| LI071116 |
| 2112019275 |
| 2932391 |
| 16514232 |
| TRU19275Y |
| 19275Y-TL |
| 8413-19275Y |
| 85101799 |
| LED19PCY |
| LIT19275Y |
| MCL-69AB |
| TL 19275Y |
| TL 19275Y |
| TL-19275Y |
| S19-AA00-1 |
| 47493 |
| 10006496 |
