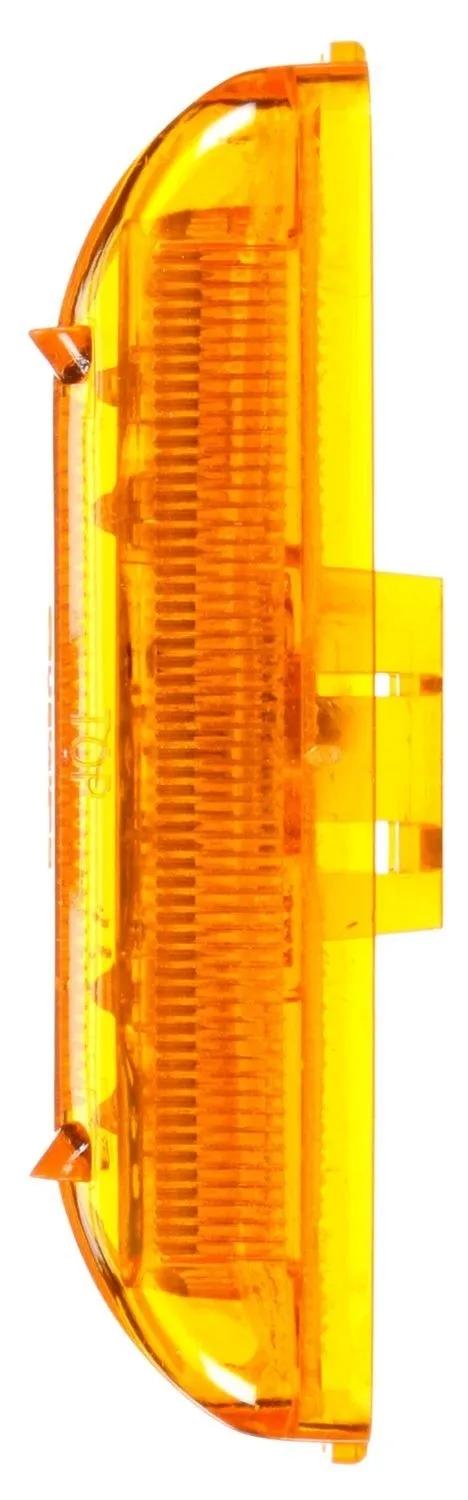

Marker Clearance Light, Amber, Rectangular
#TRL19375Y
Product Overview
19 Series, LED, Yellow Rectangular, 6 Diode, Marker Clearance Light, PC2, Fit 'N Forget M/C, 12V
Features & Benefits
- Innovative optic design allows combination lamp to function as two
- Draws less current, allowing more power for other vehicle requirements
- Designed to fit applications requiring minimal space
- Must be mounted horizontally
Specifications
| Color | Amber |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.12 amp |
| Depth | 53/64 in (2.11 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-15/64 in (3.12 cm) |
| Kit (Y/N) | No |
| Length | 3-25/32 in (9.6 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 19 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 3-25/32 in (9.6 cm) |
Interchanges & Equivalent parts:
| 41312593 |
| 14200668 |
| 19375Y |
| 4024151 |
| TL19375Y |
| TLD19375Y |
| LIT19375Y |
| TL 19375Y |
| TL 19375Y |
| 47493GR0 |
| 6904024151 |
