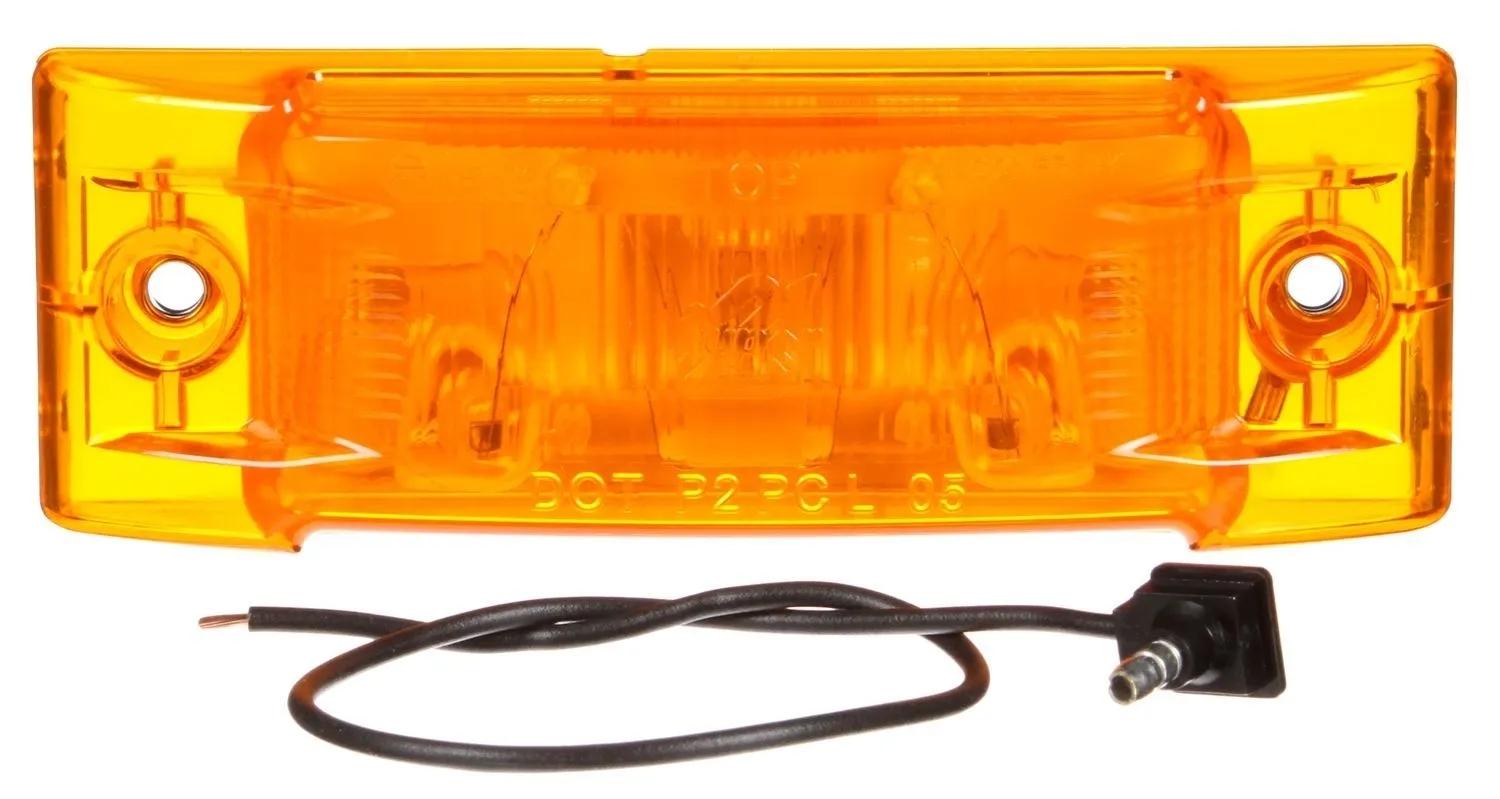

Feu de gabarit, ambre, rectangle
#TRL21001Y
Sommaire du produit
Super 21, incandescent, jaune rectangulaire, 1 ampoule, feu de gabarit, PC, 2 vis, prise Super 21, extrémité dénudée, 12 V, trousse
Caractéristiques et avantages
- Available with standard or reflectorized lens
- Suitable for PC requirements on a 45-degree angle with additional reflectors
- Version available for ABS requirements
- Optional gaskets available to improve seal between lamp and body
Spécifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Plug |
| Current Major | 0.17 amp |
| Depth | 1-19/64 in (3.3 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 2-1/32 in (5.16 cm) |
| Housing Color | Yellow |
| Kit (Y/N) | Yes |
| Length | 6 in (15.24 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 1 |
| Plug Side One | Super 21 Plug |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 21 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technologie | Incandescent |
| Type | Marker Clearance Light |
| Code VMRS | 034-004-024 |
| Volt | 12V |
| Largeur | 6 in (15.24 cm) |
| Calibre de(s) fil(s) | 16 ga |
Interchanges et pièces équivalentes:
| 3099915 |
| 810660 |
| 46833 |
| 841321001Y3 |
| 66910 |
| HT50603245 |
| TLD21001Y3 |
| TRU21001Y |
| 21001Y3 |
| TL21001Y |
| 1205A |
| 1233A |
| 21001Y1 |
| TKL21001Y |
| 155A |
| 021001Y3 |
| 8764X |
| TL21001Y3 |
| 1400AK |
| 810667 |
| 8413-21001Y |
| GRT46833 |
| LIT21001Y |
| LT2100Y |
| TL 21001Y |
| TLD21001Y |
| 156A |
| 2101A |
| LT2150Y |
| 46083 |
| 460833 |
| 46083-3 |
