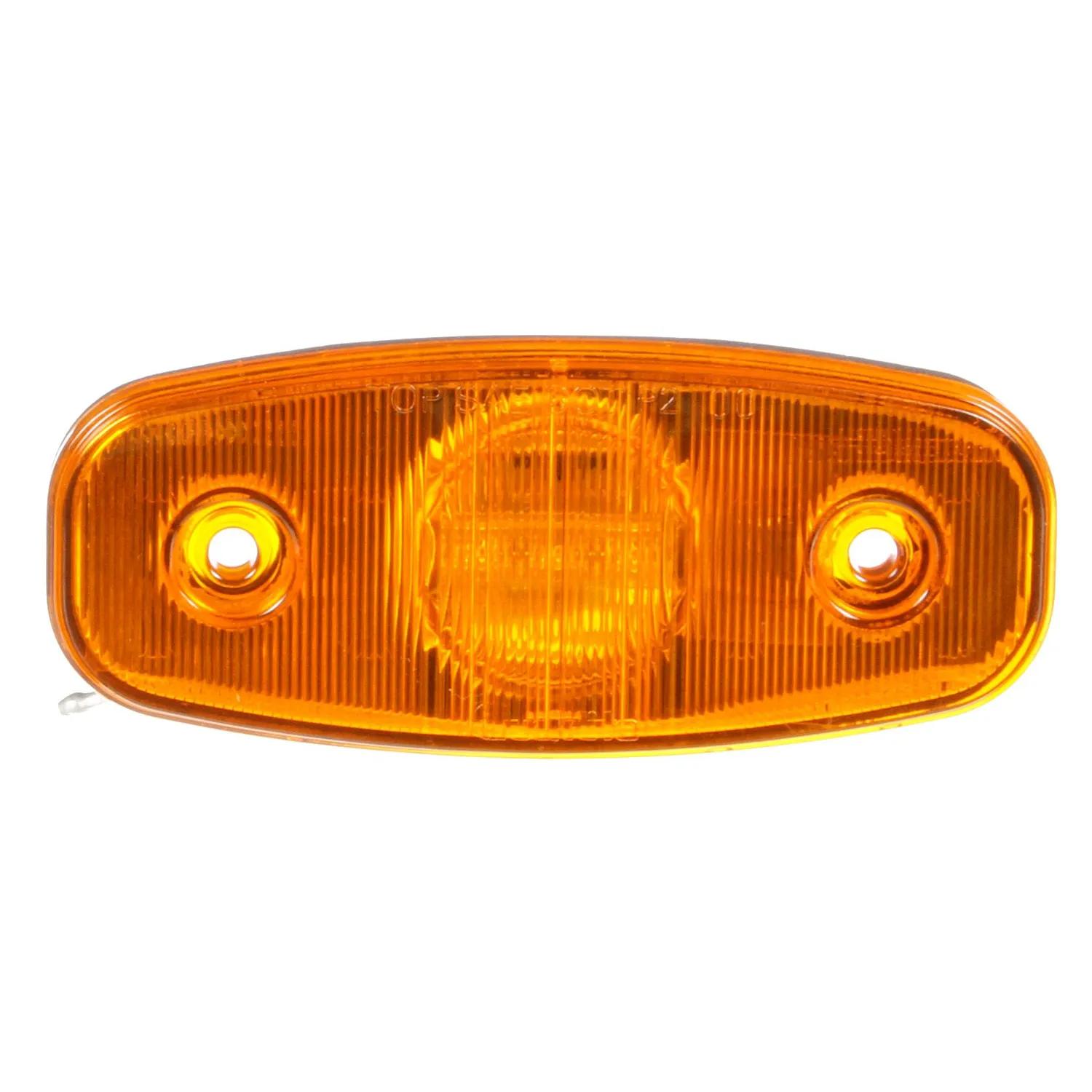

Marker Clearance Light, Amber, Rectangular
#TRL26250Y
Product Overview
26 Series, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, P2, 2 Screw, Hardwired, .180 Bullet Terminal, 12V
Features & Benefits
- Popular in trailer and body applications
- Hardwired design with blunt cut or molded bullet ends
- Innovative optics design allows for horizontal or vertical mounting
- Not suitable for PC Requirements
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Hard Wired |
| Current Major | 0.05 amp |
| Depth | 1-1/8 in (2.87 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2 in (5.08 cm) |
| Housing Color | Yellow |
| Kit (Y/N) | No |
| Length | 4-3/4 in (12.07 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 26 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 4-3/4 in (12.07 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 46001327 |
| 841326250Y |
| TL26250Y |
| TLD26250Y |
| 26250Y |
| 16512990 |
| TRU26250Y |
| 8413-26250Y |
| LIT26250Y |
| TL 26250Y |
| TL 26250Y |
| M133A |
| TKL26250Y |
| 810070 |
