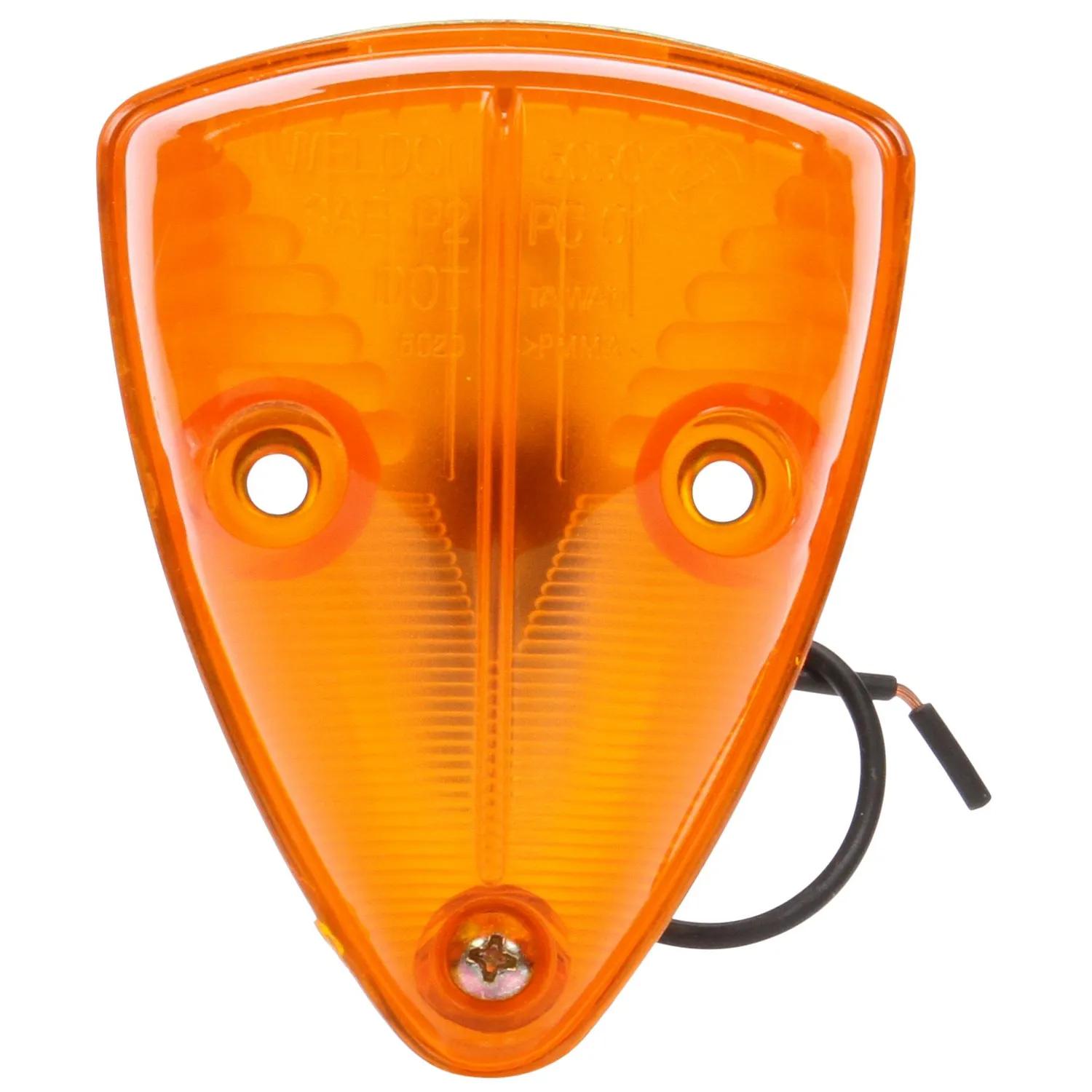

Marker Clearance Light, Amber, Triangular
#TRL26354Y
Product Overview
26 Series, Incandescent, Yellow Triangular, 1 Bulb, Marker Clearance Light, PC, 2 Screw, Hardwired, Stripped End, 12V
Features & Benefits
- Surface mounts on two pass-through lens screws at 15"
- centers
- Ground-through base
- Popular for use on school buses and commercial vehicles
- Heavy-duty steel and acrylic construction
- Lens attaches to base with one screw
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.69 amp |
| Depth | 1-61/64 in (4.95 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 2-3/8 in (6.05 cm) |
| Housing Color | Yellow |
| Kit (Y/N) | No |
| Lens Material | Acrylic |
| Mount Type | Stud Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 26 Series |
| Shape | Triangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 3-3/8 in (8.59 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 382473 |
| 841326354Y |
| 5050140020 |
| TL26354Y |
| HT50603169 |
| TLD26354Y |
| 26354Y |
| 5050-1400-20 |
| 5559101 |
| 8413-26354Y |
| LIT26354Y |
| TL 26354Y |
| TL 26354Y |
| 053-00-012 |
| 46323GR0 |
| CL3501A |
| LT320Y |
| 46323 |
| 555-9101 |
