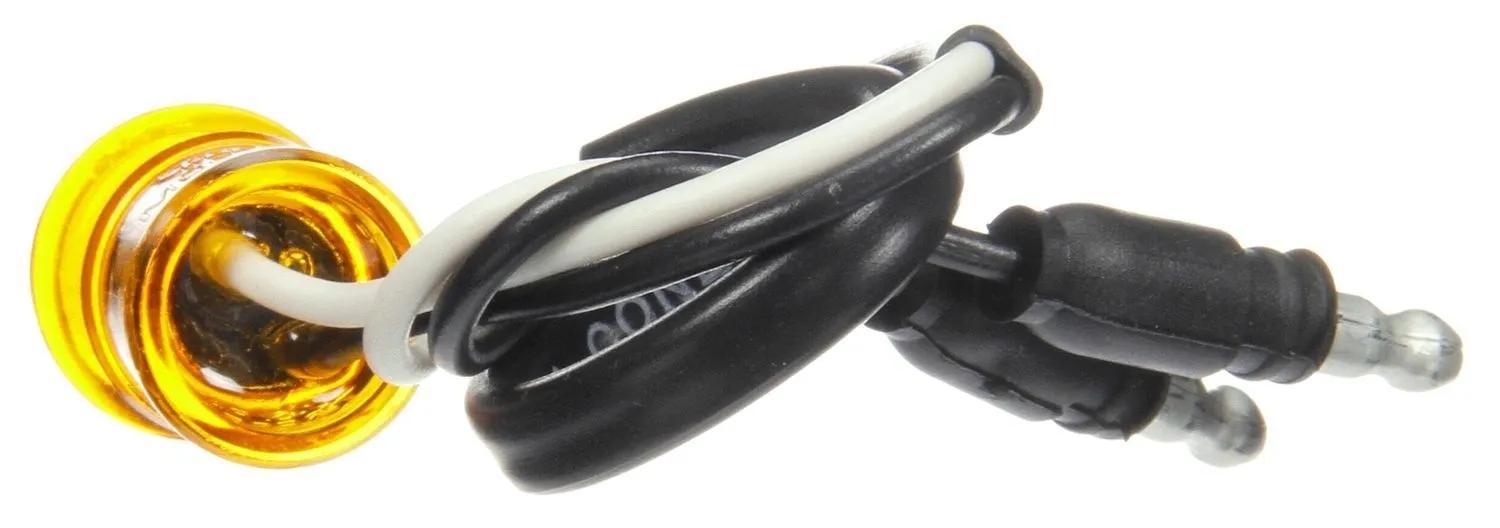

Marker Clearance Light, 33 Series, LED, 1 Diode, Amber/Yellow, Round, Hardwired, 12V, Polycarbonate Lens
#TRL33250Y
Product Overview
33 Series LED marker clearance light featuring a single diode, round amber/yellow lens, hardwired connection with .180 bullet terminal, designed for 12V systems. Compact design requires a 3/4 in mounting hole and offers corrosion-resistant epoxy-sealed electronics for durability and reliability. Ideal for transportation industry applications, exceeding legal requirements and providing flexibility for vehicle design.Marker Clearance Light, 1 Diode, LED Bulb, Hardwired, Grommet, Polycarbonate, Yellow, 0.72 in H, 0.05 in L, Light Function: P2, 33 Series, Round, 0.75 in, 12 V, Warranty: Limited Lifetime, 0.72 in W
Features & Benefits
- US patent 7,658,524
- World's smallest LED marker lamp for the transportation industry, allowing flexibility and unique vehicle design opportunity for OE's
- Exceeds legal requirements
- Hardwired lamp design is easily retrofitted
- LEDs draw less current, allowing more power for other vehicle requirements
- Hardwired options allow for simple retrofit.
- World's Smalled Led Marker Lamp, Requires 3/4" Mounting Hole
- Electronics completely sealed in epoxy to resist corrosion and moisture
- Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility
- Reduces lighting costs due to physical damage and heat entrapment
- Material thickness for flange is 0.040" - 0.250", material thickness for grommet is 0.125" - 0.250"
Specifications
| Bulb Type | DEL |
| Common Size | 5 po |
| Connection Type | Câblé |
| Contents | Feu de gabarit et d'encombrement |
| Current Major | 2,95 A |
| Current Minor | 1,45 A |
| Depth | 63/64 po |
| Height | 23/32 in |
| Length | 23/32 in |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Grommet |
| Quantity | 5 |
| Shape | Round |
| Size | 0.75 in |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Type | Marker Clearance Light |
| UPC | 735111138679 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.06 lb |
| Width | 23/32 in |
| Current Rating | 0.05 amp |
| Light Function | P2 |
| Product Line | 33 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 10017484 |
| 33250Y |
| 14200840 |
| 1845A |
| 811120 |
| 814399 |
| 841333250Y |
| 50924412 |
| 40237 |
| TL33250Y |
| TLD33250Y |
| S33AA001 |
| TRU33250Y |
| 8413-33250Y |
| LIT33250Y |
| M171A-BT2 |
| PD 33250Y |
| S33-AA00-1 |
| TL 33250Y |
| TL 33250Y |
| TKL33250Y |
| 49333 |
| 33250Y4 |
| 970084627 |
| 20112 |
