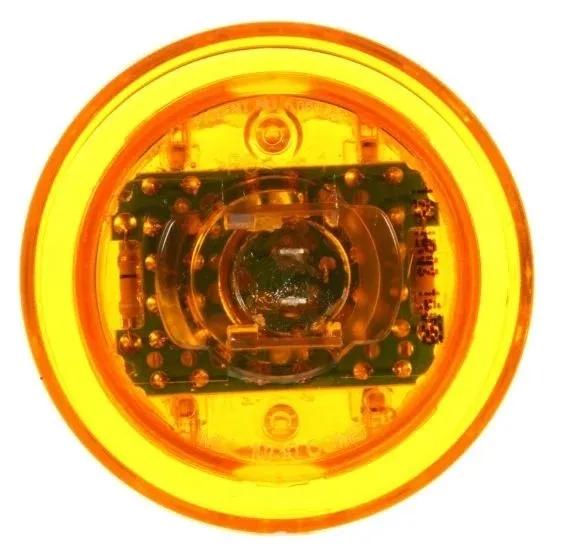

Truck-Lite 10 Series High Profile LED Marker Clearance Light, 8 Diode, Round, Amber/Yellow, 12V, Fit 'N Forget M/C
#TRL10375Y
Product Overview
Truck-Lite 10 Series high profile LED marker clearance light featuring 8 diodes in a round amber/yellow polycarbonate lens. Designed for combined marker and clearance applications with SAE PC rating. Durable, sealed design protects against shock, vibration, corrosion, and moisture. Includes Fit 'N Forget M/C connection, operates at 12V, and meets FMVSS 108, CMVSS 108, DOT, and SAE standards.Marker Clearance Light, 8 Diode, High Profile, LED Bulb, Fit 'N Forget M/C, Grommet, Polycarbonate, Yellow, 2.5 in H, 0.1 in L, Light Function: P2, P3, PC, 10 Series, Round, 12 V, Warranty: Limited Lifetime, 2.5 in W
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
- Choose from Fit 'N Forget or standard connections, flange gasket available for additional protection, electronics completely sealed in epoxy to resist corrosion and moisture.
Specifications
| Bulb Type | LED |
| Common Size | 2-1/2 in |
| Connection Type | Fit 'N Forget M/C |
| Contents | Marker Clearance Light |
| Diamond Shell (Y/N) | No |
| Height | 2-1/2 in |
| Housing Color | Amber |
| Kit (Y/N) | No |
| Length | 2-1/2 in |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Grommet |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget |
| Plug Side Two | No Plug |
| Quantity | 5 |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | 8 Diode, High Profile |
| UPC | 735111061601 |
| VMRS Code | 034-004-253 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.14 lb |
| Width | 2-1/2 in |
| Current Rating | 0.1 amp |
| Light Function | P2, P3, PC |
| Light Output Color | Amber/Yellow |
| Product Line | 10 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 41301318 |
| 1018557 |
| 47233 |
| 841310375Y |
| 703050471 |
| 94890505 |
| TL10375Y |
| TLD10375Y |
| 10375Y |
| TRU10375Y |
| 8413-10375Y |
| TL 10375Y |
| TL 10375Y |
| TLT 10375Y |
| GRT47123 |
| GRT47233 |
| TKL10375Y |
| 10014124 |
