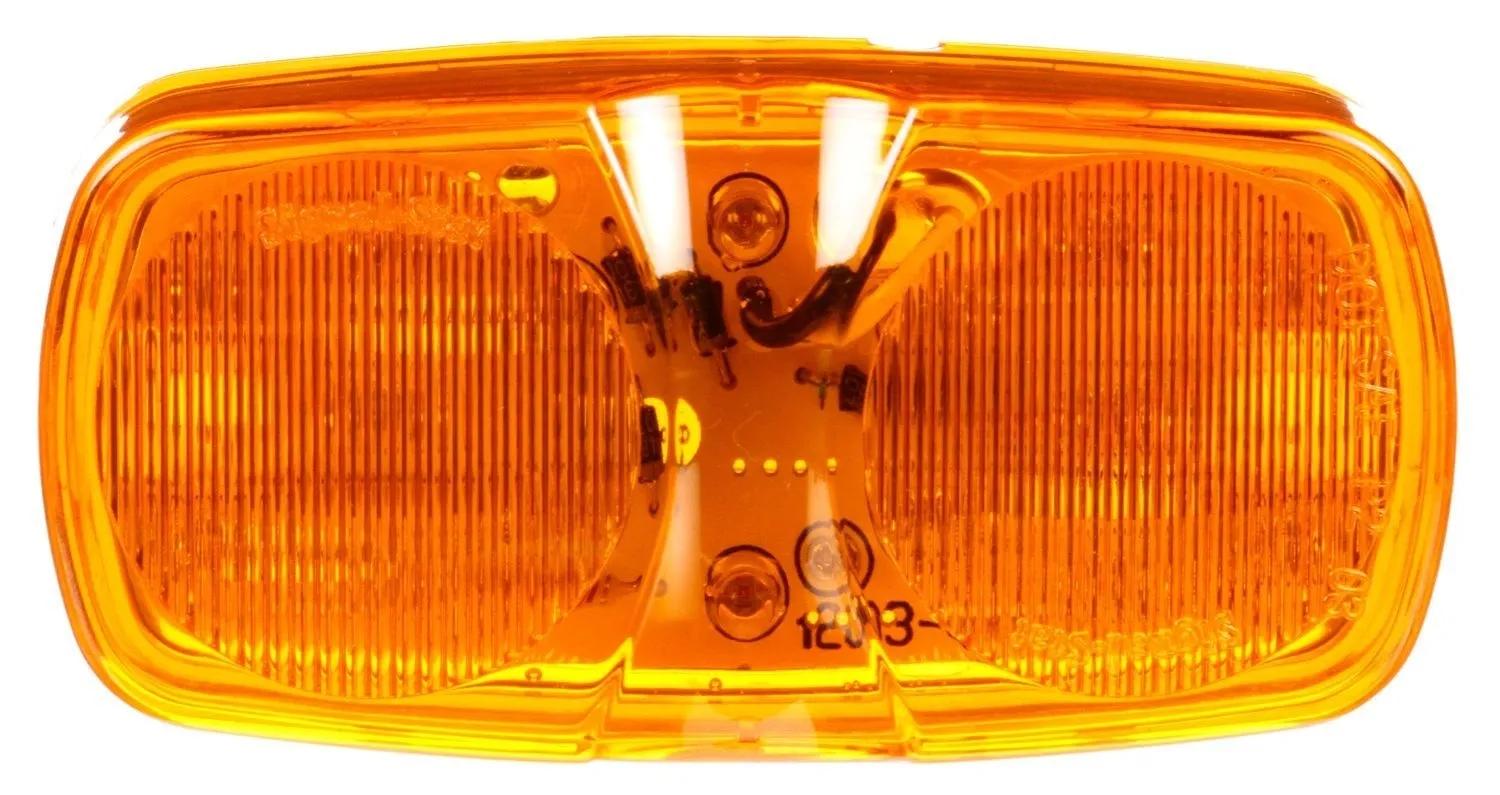

Marker Clearance Light, Yellow, Rectangular
#TRL2660A
Product Overview
Signal-Stat, LED, Yellow Rectangular, 16 Diode, Marker Clearance Light, P2, 2 Screw, Hardwired, Blunt Cut, 12V
Features & Benefits
- Hardwired design eliminates pin corrosion
- Encapsulated electronics
- 16 diode double bullseye LED pattern
Specifications
| Amps | 0.15 amp |
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Hard Wired |
| Current Major | 0.08 amp |
| Depth | 1-3/32 in (2.77 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2 |
| Height | 2-1/32 in (5.16 cm) |
| Kit (Y/N) | No |
| Length | 4-1/2 in (11.43 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| # of Diodes | 13 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 18 |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 4-3/64 in (10.29 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| G4603 |
| 1255A |
| 8413-2660A |
| KL-15104A |
| LED2040A |
| LIT2660A |
| MCL-45AB |
| MCL-46AB |
| S21-AA00-1 |
| S21-AC00-1 |
| TL 2660A |
| TL 2660A |
| TL2660A |
| TLD2660A |
| TLT 2660A |
| V180A |
| VSM1203A |
| VSM1255AX |
| 1255AX |
| 2660A3S1G |
| 2660ATLT |
| 46783GR0 |
| 62100R |
| G46035 |
| GRT46783 |
| GRT46793 |
| GRTG4603 |
| LED508Y |
| LL046501 |
| M139A |
| M23012Y |
| ML2040A |
| PTL5313A |
| TKL2660A |
| 2660A-3 |
