Grote logo

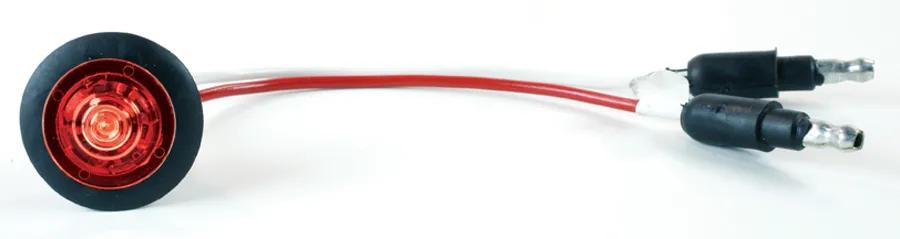

Clearance Marker Light, MicroNova®, LED, Red, Round, 1 in, Standard 0.180 in Male Bullet

#GRO49332

Product Overview


The MicroNova® Dot provides a bright pinpoint of light exactly where it is needed. The mounting bracket has two drain holes on either side of the lamp, so water will drain away from the lamp itself. This new design is thinner and more compact, yet it uses the same vehicle hole pattern, meaning existing vehicles can be retrofitted easily. The mounting bracket's durable polycarbonate material ensures years of effective use, and includes slotted mounting holes for even greater mounting flexibility. Sleek aerodynamic styling extends less than 3/8" from mounted surface.Clearance Marker Light, LED Bulb, Standard 0.180 in Male Bullet Connection Type, Grommet Mounting, Red Lens, Red Light Output, Acrylic Lens, PVC Grommet, 0.05 A Current Rating, PC Light Function, MicroNova®, Round, 1 in, FMVSS 108 Standards, 3 Years Warranty

See More
See Less

Features & Benefits


  • Standard .180 Bullet Connectors
  • Available in PC and P2 versions with .180 bullet or Deutsch(R) connectors
  • Sleek aerodynamic styling extends less than 3/8" from mounted surface
  • Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
  • No fasteners required

Specifications


Type d'ampoule DEL
Type de connexion Cosse mâle standard de 0,180 po
Contient Lampe, oeillet
Profondeur 63/64 po
Hauteur 1-3/32 po
Couleur du boîtier Noir
Couleur des lentilles Rouge
Matériel Acrylique / PVC
Type de fixation Oeillet
Forme Rond
Taille 1 po
Standards FMVSS 108
Type Feu de gabarit
Code VMRS 034-004-253
Tension nominale 12V
Warranty 3 ans
Width 23/32 po
Current Rating 0,05 A
Light Output Color Red
Light Function PC
Product Line MicroNova®
Product Category Feu de gabarit

Interchanges & Equivalent parts:


49332
M09300R
33075RTLT
RC CML11RLK
1000-CML11RLK
176R-BT2
CML11RLK
GRT49332
TKL33075R
176KR
PTS176KR
M09320R
MCL111RKPGP
MCL11RPGP
33250R
MCL12RK
725205
725362
727612
2244PT
2245G
2245PT
2262G
44026R
60256R
PTM9219LED-R
3305
HDV3301FR
47733
