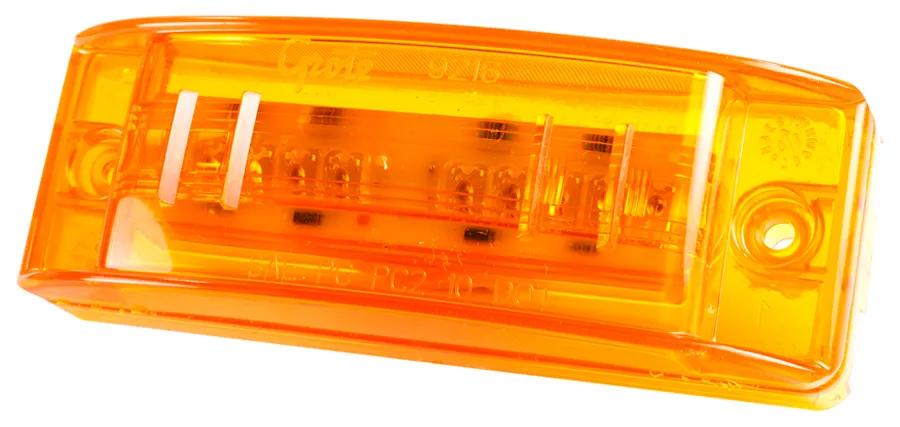

Clearance Marker Light, Amber, Rectangular, LED, SuperNova® Turtleback®
#GRO54003
Product Overview
Grote's SuperNova® sealed Turtleback® II LED clearance marker light features encapsulant potting for total circuit-board protection and a hermetic lens-to-housing seal. It functions as a marker, clearance, ID, and supplemental high-mount stop or turn lamp, providing greater visibility in locations normally serving as ID or clearance functions. The light meets FMVSS 108 standards and PC function when mounted at a 45° angle. Not designed for vertical mount.Clearance Marker Light, LED Bulb, Male Pin Connection Type, Screw Mounting, Amber Housing, Amber Lens, Amber Light Output, Polycarbonate Lens, Polycarbonate Housing, 0.12 A Current Rating, P2, PC Light Function, SuperNova®, Turtleback®, Rectangular, FMVSS 108 Standards, 10 Years Warranty
Features & Benefits
- Yellow, Turtleback II
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
- Not designed for vertical mount
- Encapsulant potting for total circuit-board protection
- Hermetic lens-to-housing seal
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Meets PC function when mounted at a 45° angle
Specifications
| Bulb Type | LED |
| Connection Type | Male Pin |
| Housing Color | Amber |
| Lens Color | Amber |
| Mounting Type | Screw |
| Mount Type | Side Mount |
| Plug Side One | Male Pin |
| Shape | Rectangular |
| Standards | FMVSS 108 |
| Type | Marker Clearance Light |
| VMRS Code | 034-002-040 |
| Voltage Rating | 12V |
| Warranty | 10 Years |
| Current Rating | 0.12 amp |
| Light Function | P2, PC |
| Light Output Color | Amber |
| Product Line | SuperNova®, Turtleback® |
| Product Category | Clearance Marker Light |
Interchanges & Equivalent parts:
| 54003 |
| ZBJD54003 |
| GRT54003 |
| 1556PT |
| 35001Y1 |
