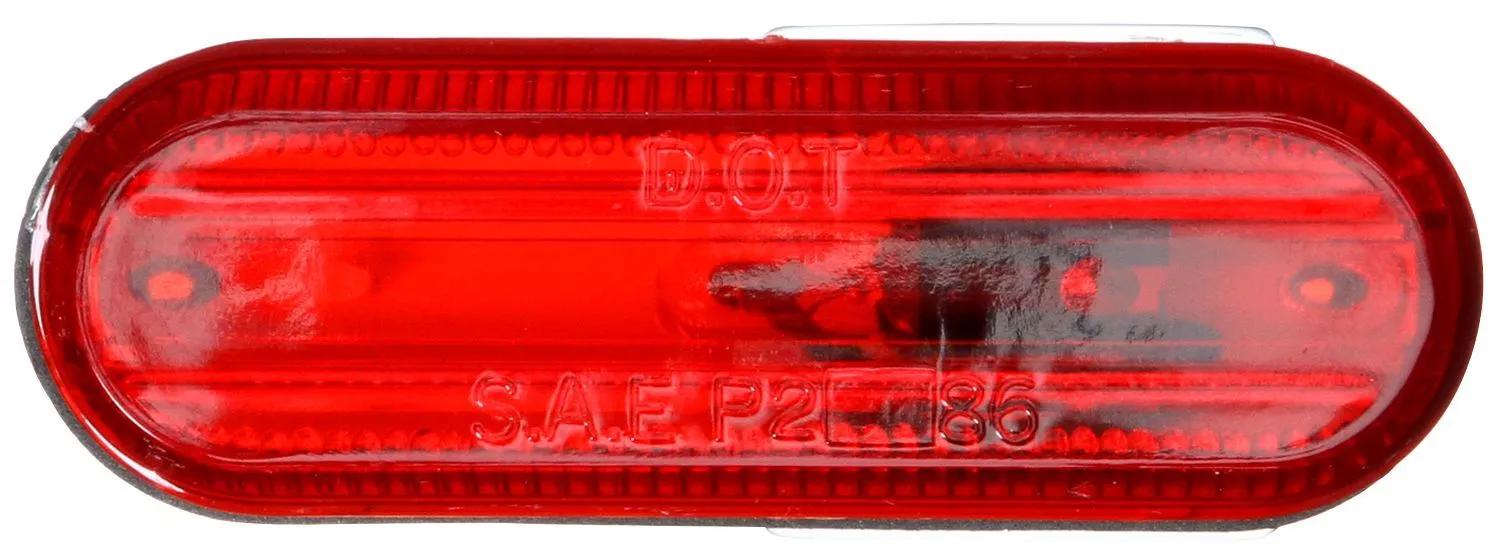

Marker Clearance Light, Red, Oval
#TRL1555
Product Overview
Signal-Stat, Slim line, Incandescent, Red Oval, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V
Features & Benefits
- Ideal for narrow rail or channel mounted applications
- Can be mounted vertically or horizontally
- Low profile Snap-On lens allows for easy bulb replacement
- Acrylic lens, ABS base
- SAE PC-rated for combination clearance/marker application
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.27 amp |
| Depth | 31/32 in (2.46 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-11/64 in (2.97 cm) |
| Kit (Y/N) | No |
| Length | 3-33/64 in (8.94 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-149 |
| Volt | 12V |
| Width | 3-33/64 in (8.94 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 45252 |
| 84131555 |
| V136R |
| MC68RB |
| MC69RB |
| TL1555 |
| TLD1555 |
| 1555 |
| 136R |
| 1555D |
| 8413-1555 |
| LIT1555 |
| MC-68RB |
| MC-69RB |
| TL 1555 |
| 45672GR0 |
| LT536R |
| ML1030R |
| PT2630R |
| 42149 |
| 452525 |
