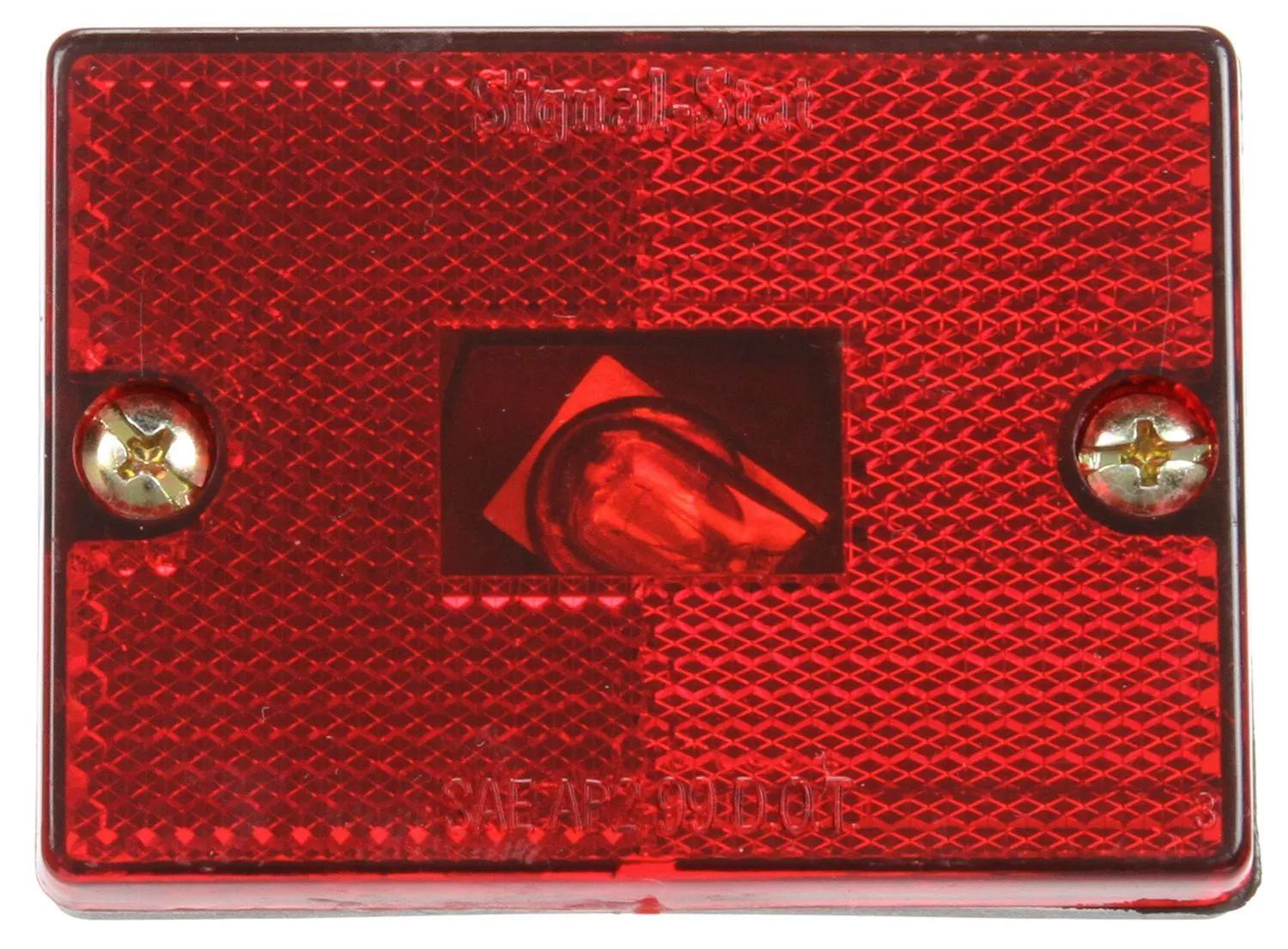

Marker Clearance Light, Red, Rectangular
#TRL1570
Product Overview
Signal-Stat, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, P2, 1 Stud Mount, Reflectorized, Hardwired, Stripped End, 12V
Features & Benefits
- Popular boat and utility trailer lamp
- Shock/Mount for maximum bulb life
- Serves as legal reflector when mounted between 15 and 60 inches from ground level on trailers less than 80"
- wide
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.33 amp |
| Depth | 1 in (2.54 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-27/32 in (7.21 cm) |
| Kit (Y/N) | No |
| Length | 2-27/32 in (7.21 cm) |
| Lens Material | Acrylic |
| Material | Acrylic |
| Mount Type | Stud Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | Yes |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | A, P2 |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2-3/32 in (5.31 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 46392 |
| 463923 |
| 463925 |
| 84131570 |
| MC36RB |
| SIG1570 |
| TL1570 |
| TLD1570 |
| M114R |
| M115WR |
| M127R |
| M147R |
| 1570 |
| 8413-1570 |
| LIT1570 |
| LT572R |
| M148R |
| MR2020R |
| PT2650R |
| TL 1570 |
| 9824R-55 |
| M115R |
| V114R |
| 469825 |
