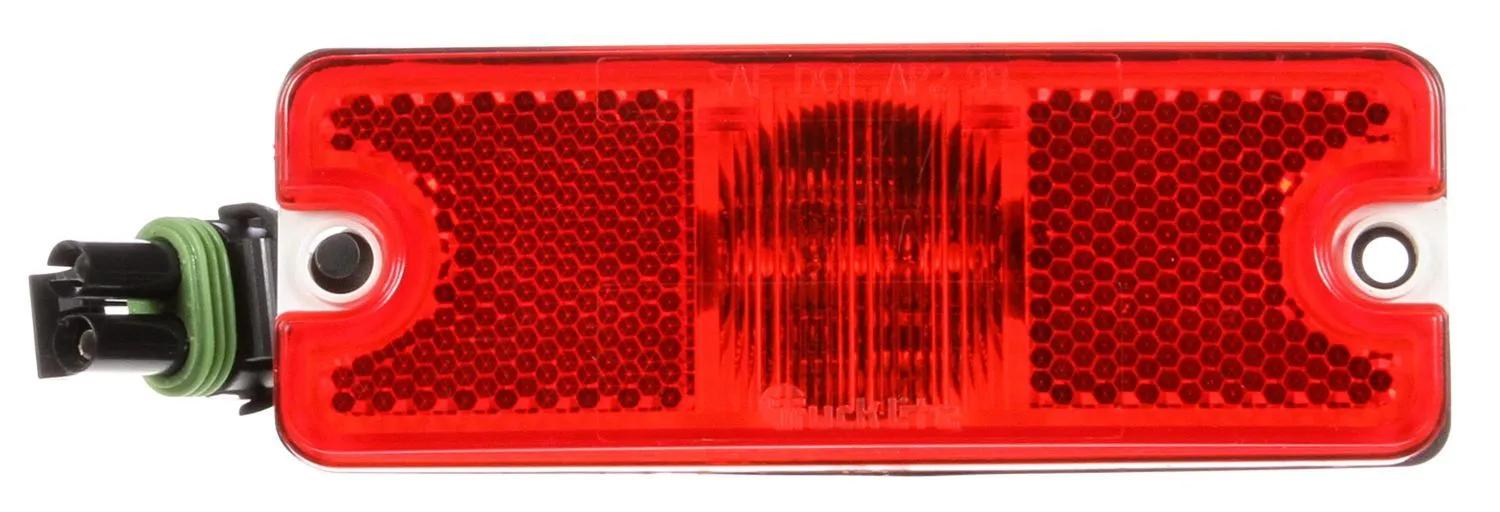

Marker Clearance Light, Red, Rectangular
#TRL18070R
Product Overview
18 Series, LED, Red Rectangular, 3 Diode, Marker Clearance Light, P2, 2 Screw, Reflectorized, Diamond Shell, Hardwired, Weather Pack/12010972, 12V, Kit
Features & Benefits
- Uses standard mounting holes and accessories
- Draws less current, allowing more power for other vehicle requirements
- OmniVolt versions also meet ECE standards
- Not suitable for PC requirements
Specifications
| Color | Rouge |
| Common Size | 2 in (5.08 cm) |
| Contents | Lampe, Câblé |
| Current Major | 0,05 amp |
| Depth | 1 in (2.54 cm) |
| Diamond Shell (Y/N) | Oui |
| Height | 1-5/8 in (4.14 cm) |
| Housing Color | Rouge |
| Kit (Y/N) | Yes |
| Length | 4-1/2 in (11.43 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Metripack |
| Reflectorized (Y/N) | Yes |
| Series | 18 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 4-1/2 in (11.43 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 4 in (10.16 cm) |
Interchanges & Equivalent parts:
| 18070R |
| 841318070R |
| TL18070R |
| TLD18070R |
| 8413-18070R |
| LIT18070R |
| TL 18070R |
| TL 18070R |
| 6305321 |
