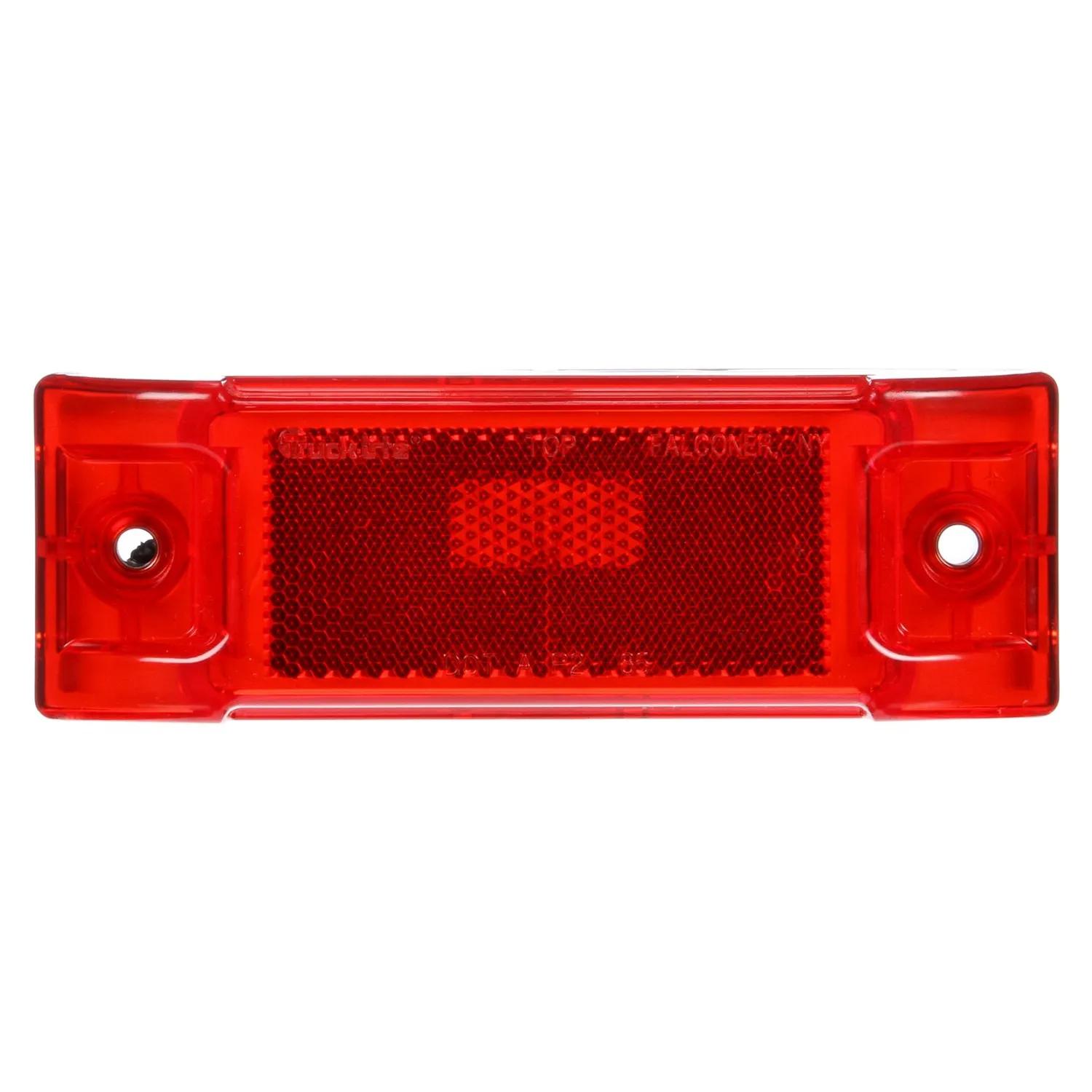

Marker Clearance Light, Red, Rectangular
#TRL21501R
Product Overview
Super 21, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, PC, 2 Screw, Super 21 Plug, .180 Bullet Terminal, 12V, Kit
Features & Benefits
- Available with standard or reflectorized lens
- Suitable for PC requirements on a 45-degree angle with additional reflectors
- Version available for ABS requirements
- Optional gaskets available to improve seal between lamp and body
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Plug, Extension Bracket |
| Current Major | 0.33 amp |
| Depth | 1-19/64 in (3.3 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 2-1/32 in (5.16 cm) |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| Length | 6 in (15.24 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | Super 21 Plug |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | Yes |
| Series | 21 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 6 in (15.24 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 0351000097 |
| 0351000098 |
| 351000097 |
| 46872 |
| 841321501R |
| 202296 |
| 21501R |
| TL21501R |
| 8413-21501R |
| TL 21501R |
| TL 21501R |
| TLD21501R |
| 155R |
| GRT46832 |
| 41312586 |
| HT50603257 |
| TRU21501R |
| 66910 |
