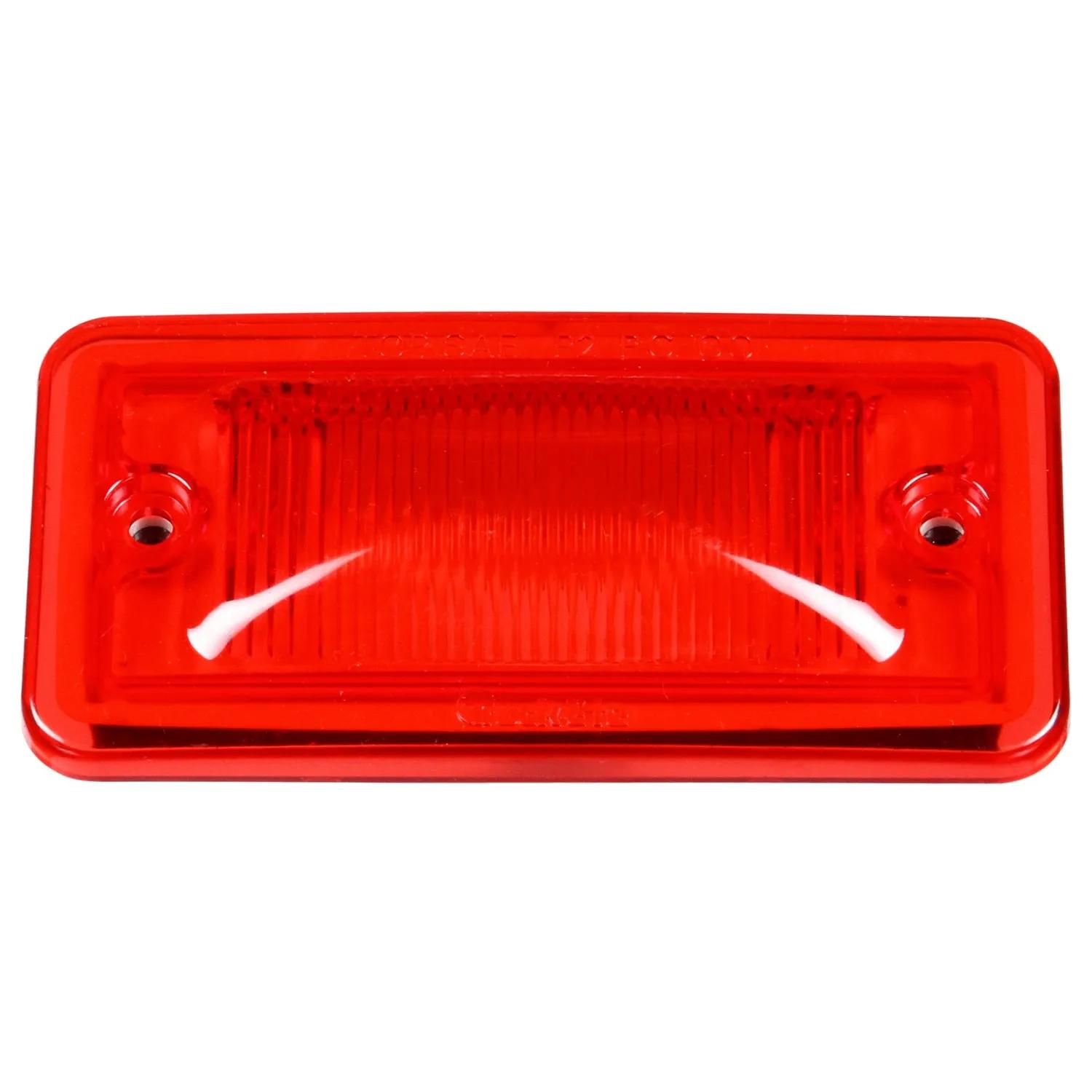

Marker Clearance Light, Red, Rectangular
#TRL25784R
Product Overview
25 Series, Incandescent, Red Rectangular, Marker Clearance Light, PC, 2 Screw, Socket
Features & Benefits
- Feature unique lens design for applications requiring a surface mount combination lamp
- Mounting gasket included to improve seal between lamp and vehicle
- Suitable for PC requirements when mounted on a 45-degree angle
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Depth | 1-11/16 in (4.29 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-7/16 in (6.2 cm) |
| Housing Color | Red |
| Kit (Y/N) | No |
| Lamp Screw Hole Diameter | 13/64 in (0.51 cm) |
| Length | 4-25/32 in (12.14 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | 25 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 4-25/32 in (12.14 cm) |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 25784R |
| 8413-25784R |
| LIT25784R |
| TL 25784R |
| TL25784R |
| TLD25784R |
