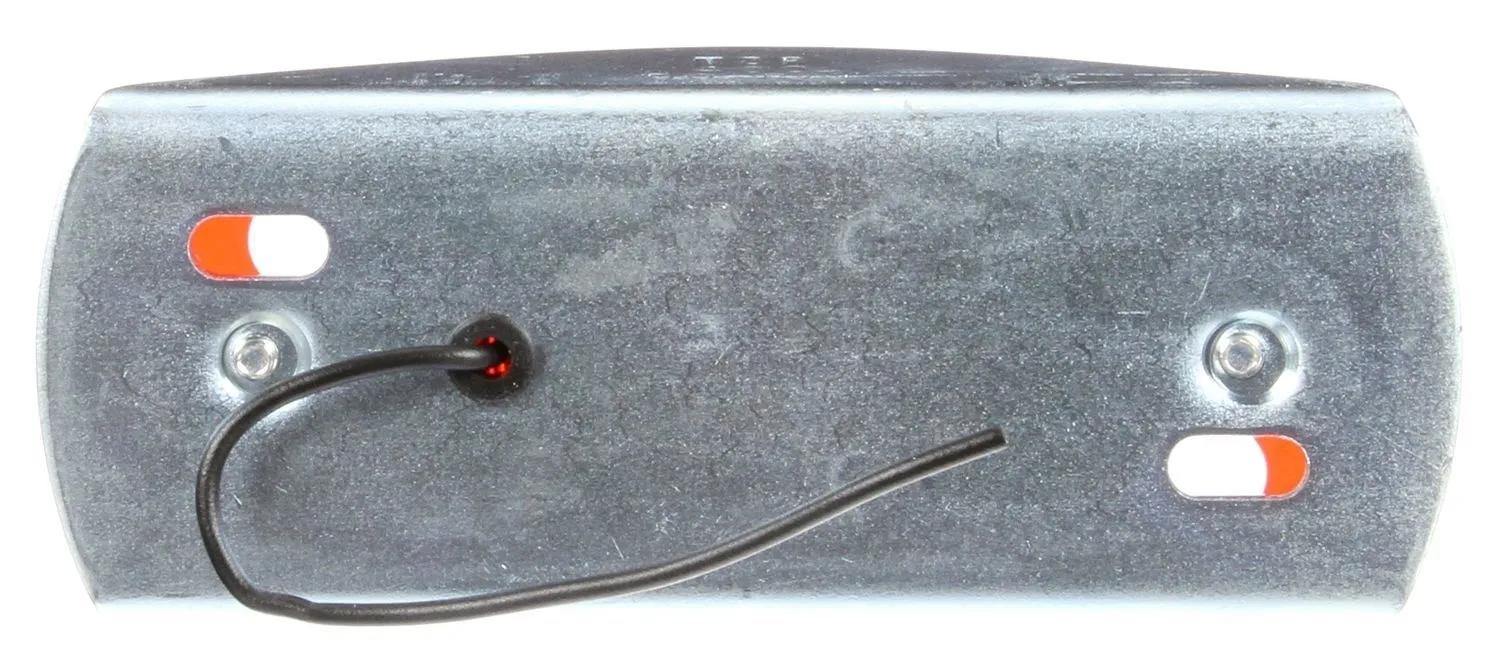

Marker Clearance Light, Red, Rectangular
#TRL26315R
Product Overview
26 Series, Armored, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, P2, Silver Steel Bracket Mount, Hardwired, Stripped End, 12V
Features & Benefits
- Features zinc-plated steel housing
- Designed for surface mounting
- Not suitable for PC requirements
Specifications
| Ampères | 0.33 amp |
| Couleur | Rouge |
| Taille commune | 1 in (2.54 cm) |
| Contient | Lampe |
| Major actuel | 0,27 amp |
| Profondeur | 1-1/2 in (3.81 cm) |
| Coquille de diamant (O/N) | Oui |
| Fonction | P2, P3, PC, PC2 |
| Hauteur | 2 in (5.08 cm) |
| Couleur du boîtier | Argent |
| Trousse (O/N) | No |
| Diamètre du trou de vis de la lampe | 7/32 po (0,56 cm) |
| Longueur | 5-1/4 in (13.34 cm) |
| Matériau de la lentille | Acrylic |
| Matériel | Acier |
| Type de support | Montage par support |
| Nombre de câbles | 1 |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | PL-2 (Stripped End) |
| Réfléchissant (O/N) | Non |
| Séries | 26 Series |
| Forme | Rectangle |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technologie | Incandescent |
| Type | Marker Clearance Light |
| Code VMRS | 034-004-024 |
| Volt | 12V |
| Largeur | 5-1/4 in (13.34 cm) |
| Calibre de(s) fil(s) | 18 ga |
| Longueur de fil | 3 po (7,62 cm) |
Interchanges & Equivalent parts:
| 45172 |
| HT50602272 |
| TLD26315R3 |
| M119R |
| M124R |
| 26315R3 |
| 119R |
| 253-531 |
| 253531 |
| MNC253-531 |
| TRU1117 |
| TRU26315R |
| 8413-26315R |
| LIT26315R |
| LT574R |
| PM119R |
| TL 26315R |
| TL26315R |
| TLD26315R |
| 055-00-522 |
| 088-00-322 |
| 124R |
| 45172GR0 |
| 81765 |
| 84078 |
| 123R |
