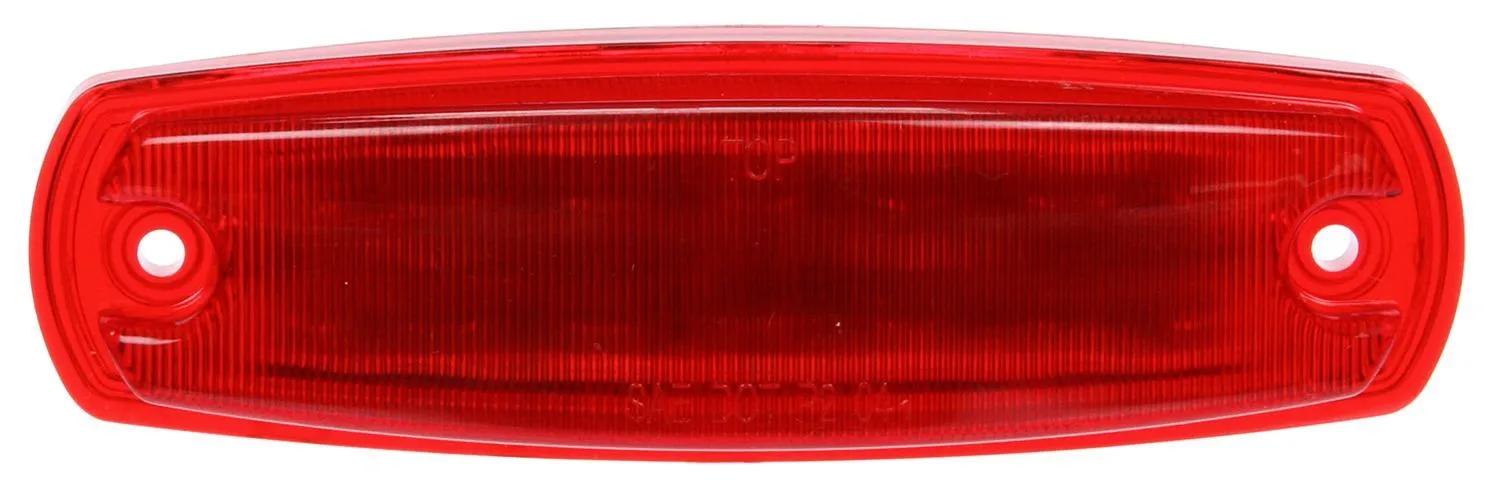

Marker Clearance Light, Red, Rectangular
#TRL2673
Product Overview
Signal-Stat, LED, Red Rectangular, 12 Diode, Marker Clearance Light, P2, Chrome ABS 2 Screw, Hardwired, Ring Terminal/Stripped End, 12V, Kit
Features & Benefits
- Full pattern light output
- Popular on show truck and owner-operator applications
- Hardwired design eliminates pin corrosion
- Not suitable for PC applications
- Kit includes lamp and chrome bezel
- Popular Peterbilt replacement
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Lamp, Hard Wired |
| Current Major | 0.05 amp |
| Depth | 3/4 in (1.91 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-7/8 in (4.78 cm) |
| Housing Color | Chrome |
| Kit (Y/N) | Yes |
| Length | 6-1/4 in (15.88 cm) |
| Lens Material | Acrylic |
| Material | ABS |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 6-1/4 in (15.88 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 47262 |
| 2673 |
| TRU2673 |
| 8413-2673 |
| LIT2673 |
| TL 2673 |
| TLD2673 |
| 2673TLT |
| LL041802 |
| LL046901 |
