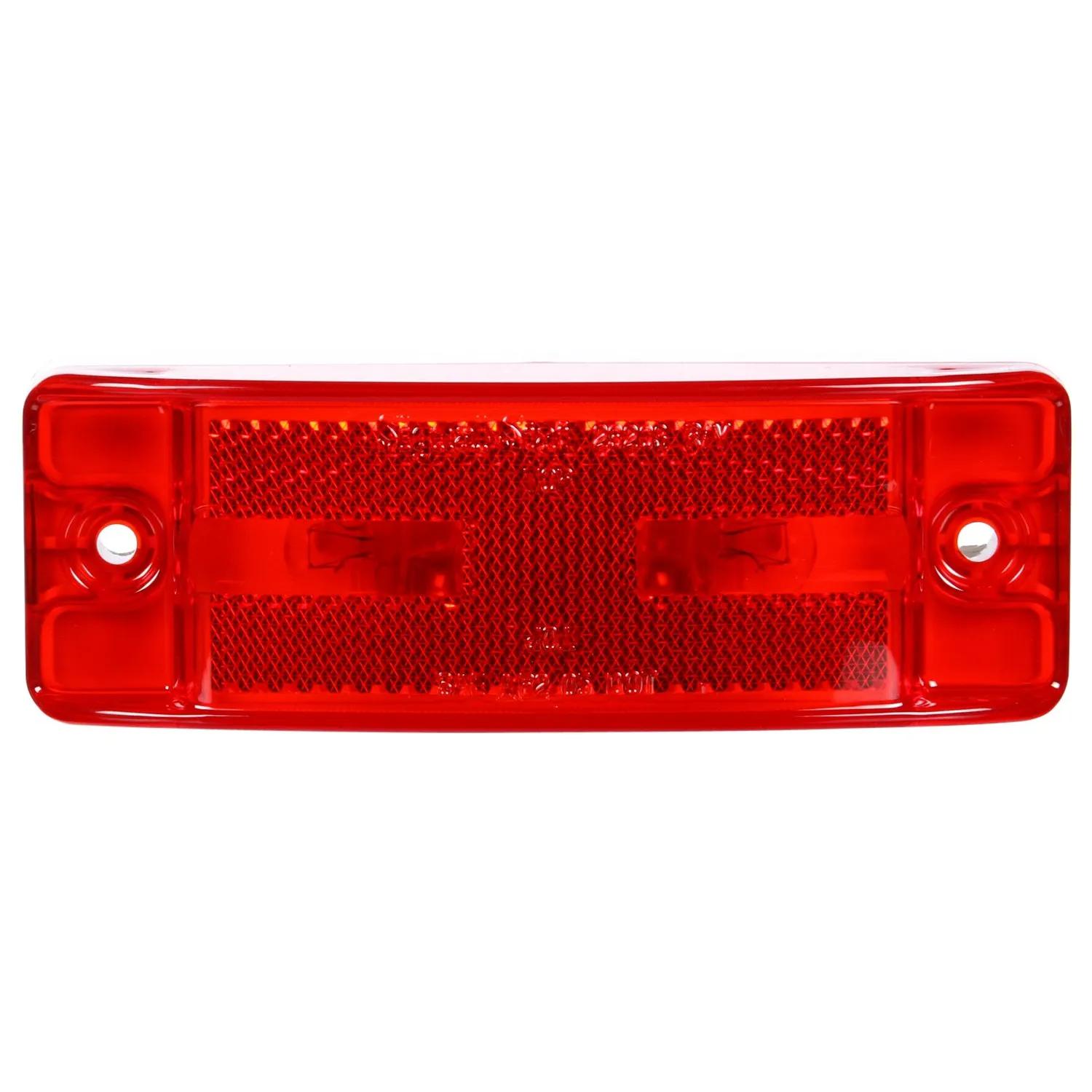

Marker Clearance Light, Red, Rectangular
#TRL29003R
Product Overview
21 Series, Incandescent, Red Rectangular, 2 Bulb, Marker Clearance Light, PC, 2 Screw, Reflectorized, Male Pin, .180 Bullet Terminal/Ring Terminal, 12V, Kit
Features & Benefits
- Available with standard or reflectorized lens
- Features male pin connections
- Suitable for PC requirements on a 45-degree angle with additional reflectors
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Plug |
| Current Major | 0.33 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-1/64 in (5.13 cm) |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| Length | 6 in (15.24 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | Male Pin |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | Yes |
| Series | 21 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 5-7/8 in (14.94 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 29003R |
| TRU29003R |
| 8413-29003R |
| LIT29003R |
| TL 29003R |
| TL 29003R |
| TL29003R |
| TLD29003R |
| 46872GR0 |
| GRT46872 |
