Marker Clearance Light, Red, Round
#TRL10519R
Product Overview

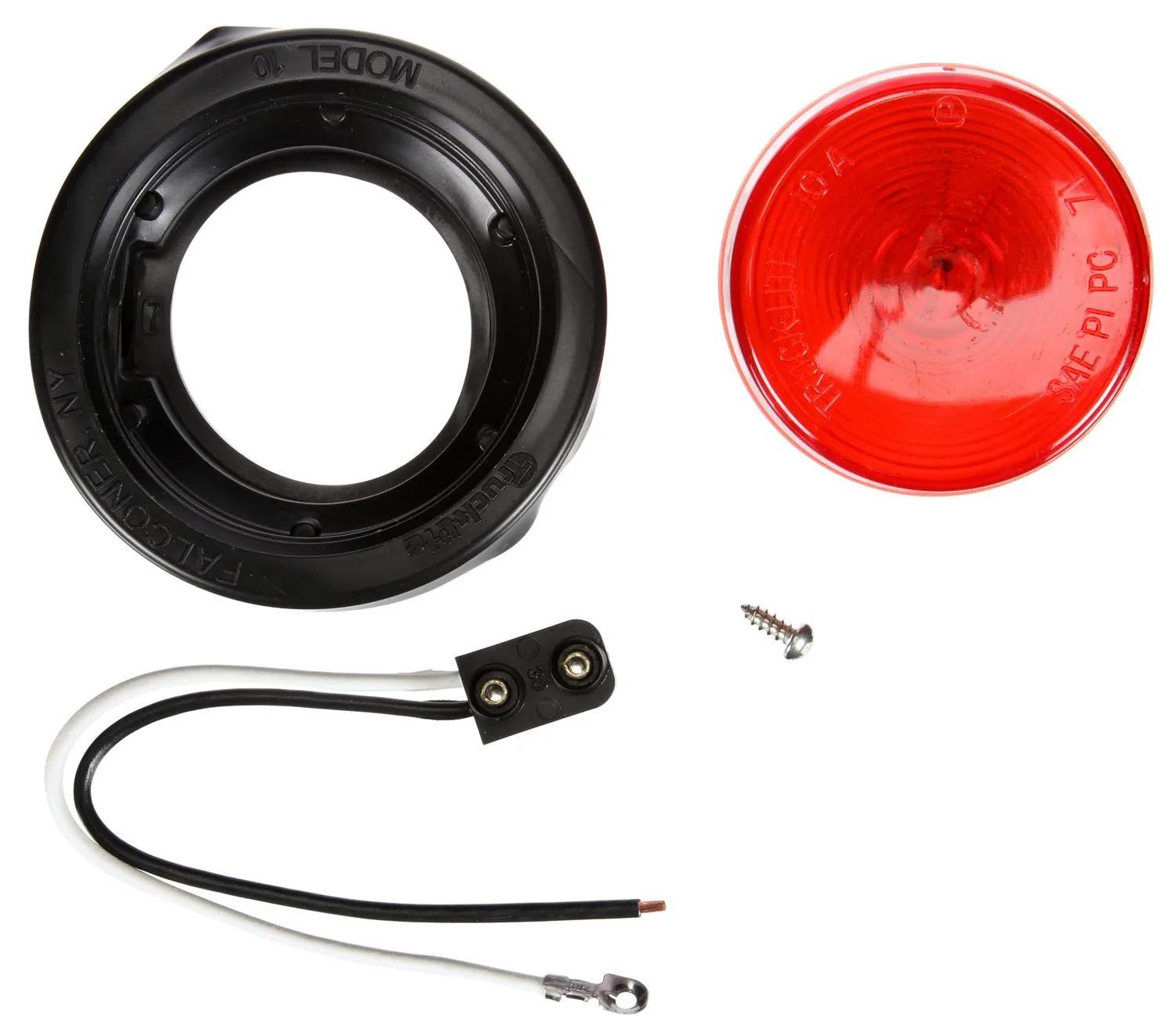

10 Series, Incandescent, Red Round, 1 Bulb, Marker Clearance Light, PC, Black PVC Grommet Mount, PL-10, Ring Terminal/Stripped End, 12V, Kit
Features & Benefits
- Lens and housing are sonically sealed
- High-impact polycarbonate construction
- 12V, 15,000-hour-rated bulb life
- Available in either 12V or 24V
- Meets PC requirement on a 45-degree angle in mounting devices #10708, #10720, #00803 or #00804
Specifications
| Amps | 0.33 amp |
| Color | Rouge |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lampe, passe-fil, prise |
| Current Major | 0,33 amp |
| Depth | 45/64 in (1.78 cm) |
| Diamond Shell (Y/N) | Non |
| Function | P2, P3, PC, PC2 |
| Height | 2-35/64 in (6.48 cm) |
| Housing Color | Noir |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Twist-On Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2-35/64 in (6.48 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 4504267050 |
| 142KR |
| 60008999 |
| 10519R |
| 893982130 |
| 841310519R |
| 40223 |
| TL10519R |
| PT1000RKIT |
| HT50602063 |
| TLD10519R |
| TRU10519R |
| LT10KR |
| 612294 |
| 067-00-122 |
| 800-250250R |
| 8413-10519R |
| LIT10519R |
| TL 10519R |
| TL 10519R |
| 1010K |
| 45042GR0 |
| KT3255R |
| PT1000R-KIT |

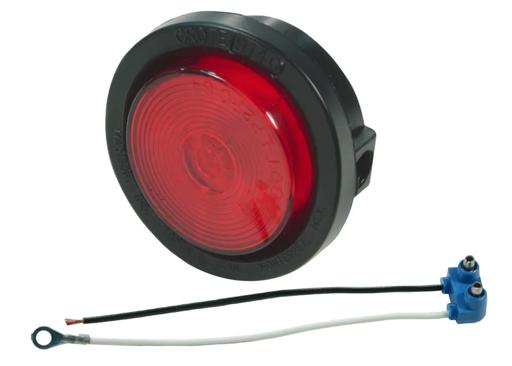

| 45042 |
