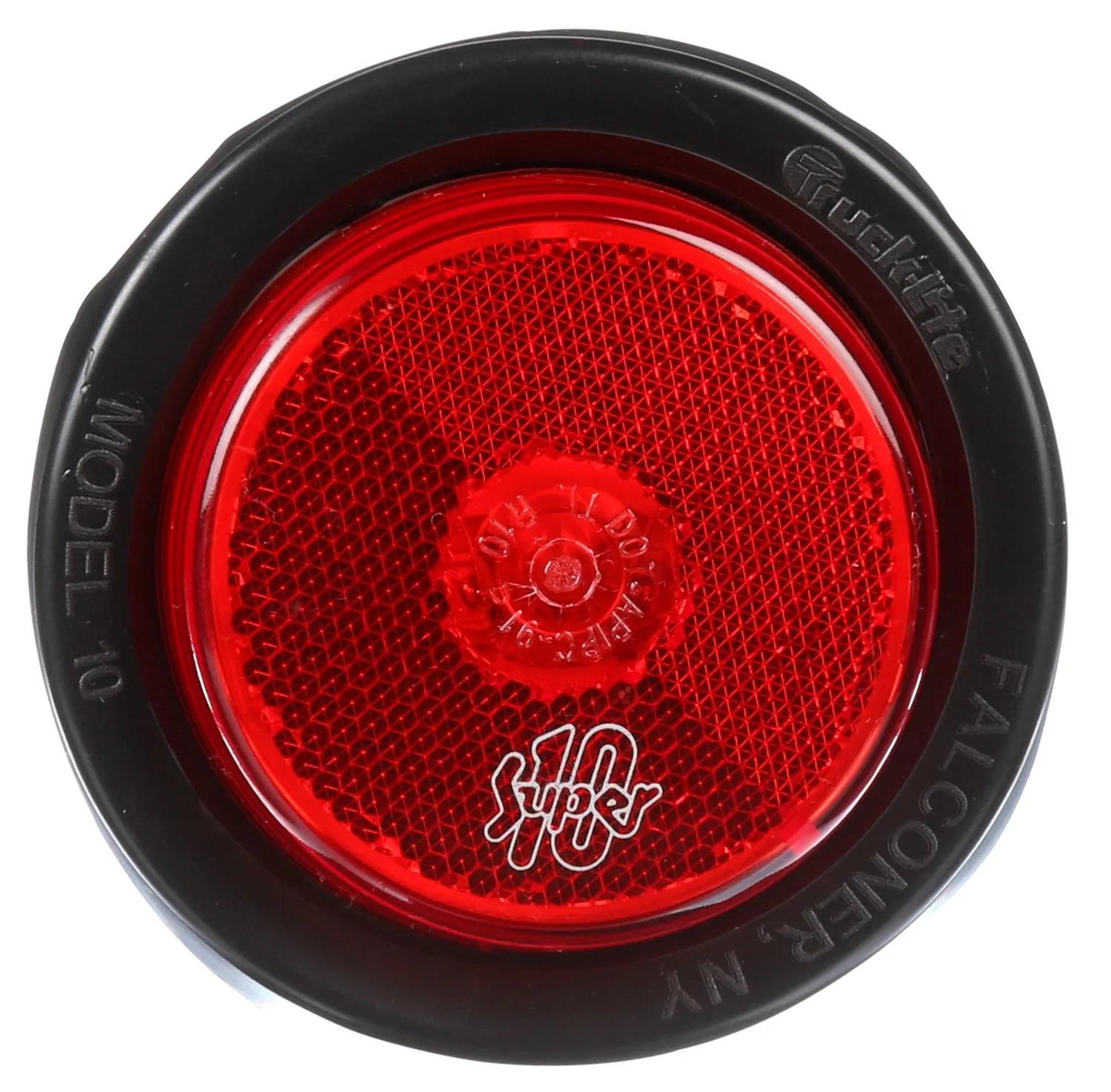

Marker Clearance Light, Red, Round
#TRL10075R
Product Overview
10 Series, High Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Black PVC Grommet Mount, PL-10, .180 Bullet Terminal/Ring Terminal, 12V, Kit
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Grommet, Plug |
| Current Major | 0.1 amp |
| Depth | 1-3/32 in (2.77 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-1/4 in (8.26 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 3-1/4 in (8.26 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 444219 |
| 10075R |
| 91400 |
| 970014065 |
| 841310075R |
| 66840 |
| TL10075R |
| HT50601585 |
| TLD10075R |
| 8413-10075R |
| LIT10075R |
| TL 10075R |
| TL 10075R |
| 47232GR0 |
| 47232 |
| PA10075 |
