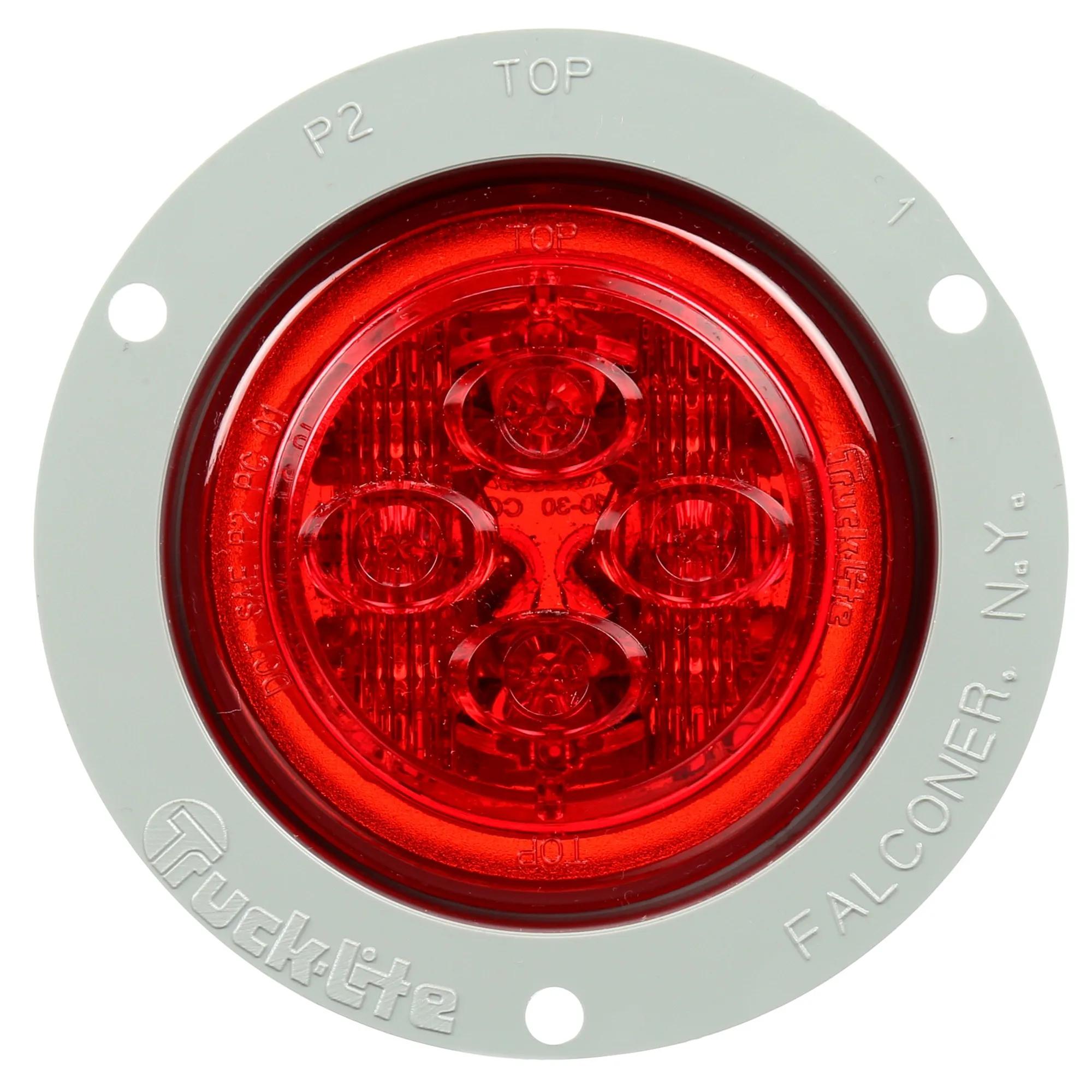

Marker Clearance Light, Red, Round
#TRL10089R
Product Overview
10 Series, Low Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flange Mount, PL-10, .180 Bullet Terminal/Ring Terminal, 12V, Kit
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- Low-Profile design improves clearance and reduces risk of getting knocked off. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology protecting against damage from shock and vibration.
Specifications
| Couleur | Rouge |
| Taille commune | 2-1/2 in (6.35 cm) |
| Contient | Lampe, bride grise, prise |
| Major actuel | 0,1 amp |
| Profondeur | 61/64 in (2.41 cm) |
| Diamond Shell (Y/N) | Non |
| Height | 2-35/64 in (6.48 cm) |
| Housing Color | Gris |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Montage à bride |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | Non |
| Series | 10 Series |
| Shape | Rond |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-35/64 in (6.48 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 10089R |
| 841310089R |
| 66850 |
| TL10089R |
| TLD10089R |
| TRU10089R |
| 8413-10089R |
| LIT10089R |
| TL 10089R |
| TL 10089R |
| 47372GR0 |
| 47372 |
