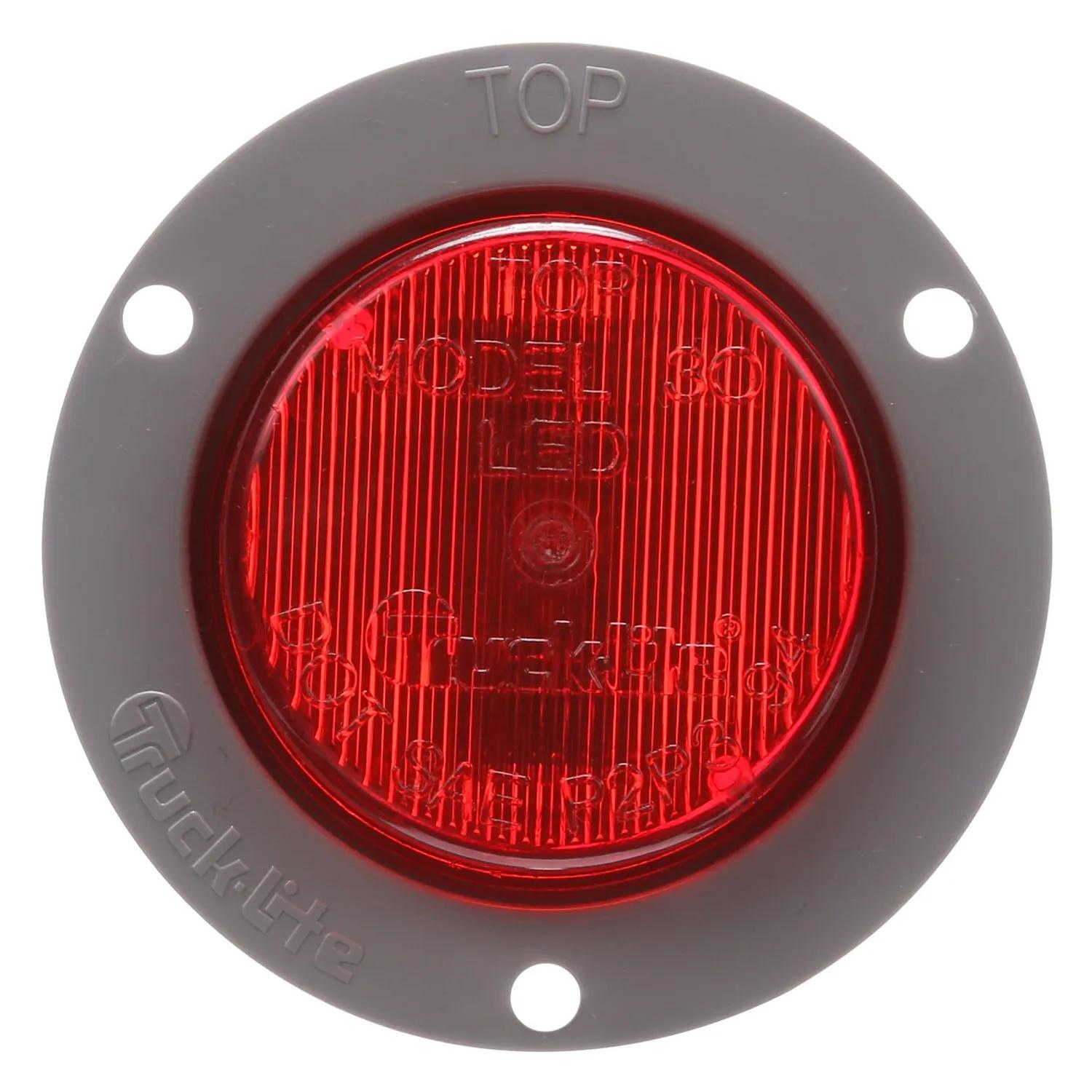

Marker Clearance Light, Red, Round
#TRL30051R
Product Overview
30 Series, LED, Red Round, 2 Diode, Marker Clearance Light, P3, Gray Polycarbonate Flush Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit
Features & Benefits
- P2/P3 Rated marker & clearance lamps are compliant for 90 degree
- Low-profile design to reduce damage from being hit or knocked off.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Flange, Plug |
| Current Major | 0.05 amp |
| Depth | 41/64 in (1.63 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-15/16 in (7.47 cm) |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flush Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | PL-10, Female |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-15/16 in (7.47 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 415935 |
| 43150 |
| 47112 |
| 841330051R |
| 67050 |
| 94890187 |
| HT50601672 |
| TL30051R |
| TLD30051R |
| TRU30051R |
| TWC74691 |
| E7087763 |
| 30051R |
| 30051R1 |
| 8413-30051R |
| LIT30051R |
| TL 30051R |
| TL 30051R |
| TLT 30051R |
| GRT47112 |
| 611474 |
| 4711243165066850 |
| 803604 |
