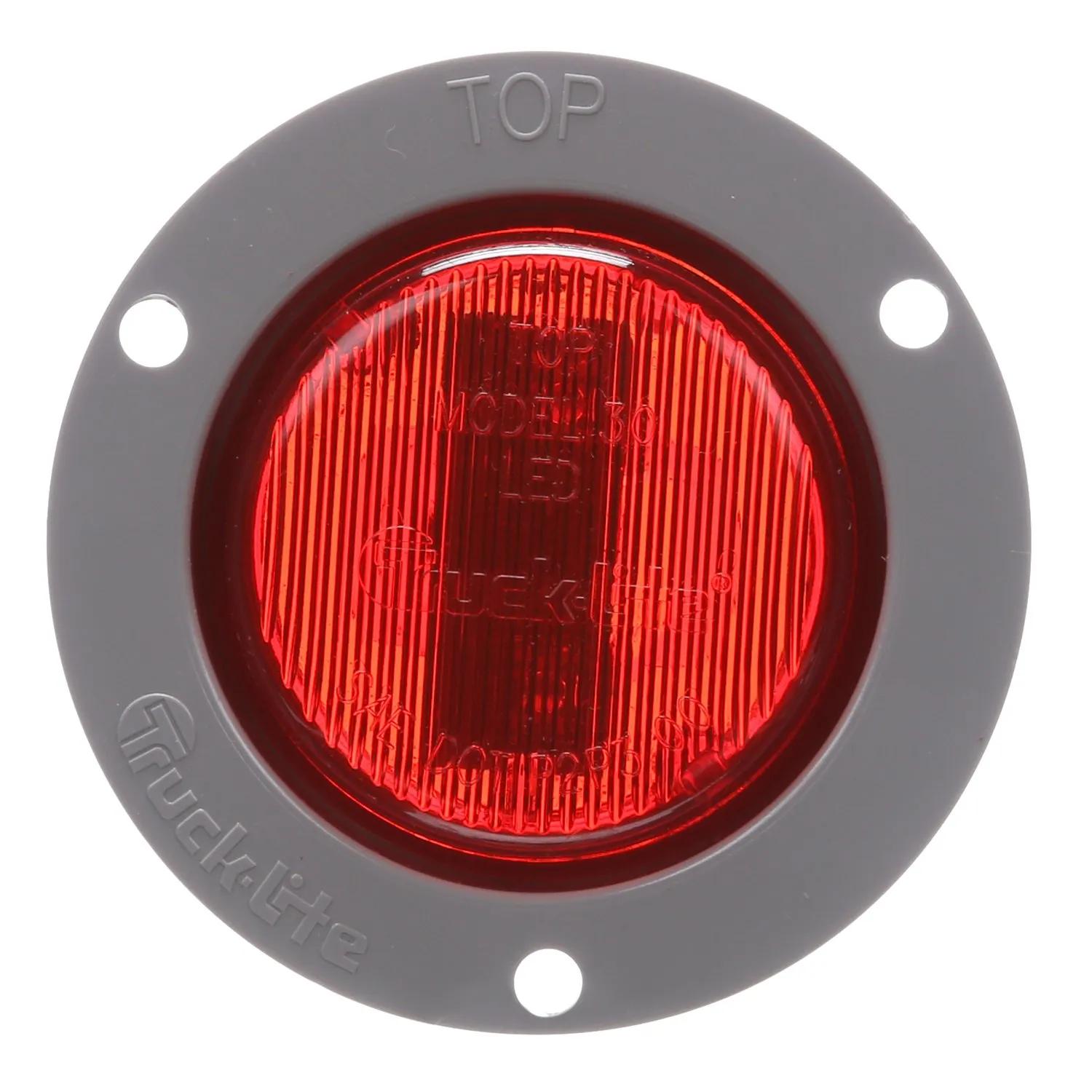

Marker Clearance Light, Red, Round
#TRL30071R
Product Overview
30 Series, Low Profile, LED, Red Round, 2 Diode, Marker Clearance Light, P3, Gray Polycarbonate Flush Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit
Features & Benefits
- P2/P3 Rated marker & clearance lamps are compliant for 90 degree
- Low-profile design to reduce damage from being hit or knocked off.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Rouge |
| Common Size | 2 in (5.08 cm) |
| Contents | Lampe, bride, prise |
| Current Major | 0,05 amp |
| Depth | 3/8 in (0.97 cm) |
| Diamond Shell (Y/N) | Non |
| Height | 2-15/16 in (7.47 cm) |
| Housing Color | Gris |
| Kit (Y/N) | Yes |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Montage encastré |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | PL-10, Female |
| Reflectorized (Y/N) | Non |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-15/16 in (7.47 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 43150 |
| 47112 |
| 66851 |
| TL30071R |
| TLD30071R |
| 30071R |
| 8413-30071R |
| LIT30071R |
| TL 30071R |
| TL 30071R |
| LL045302 |
