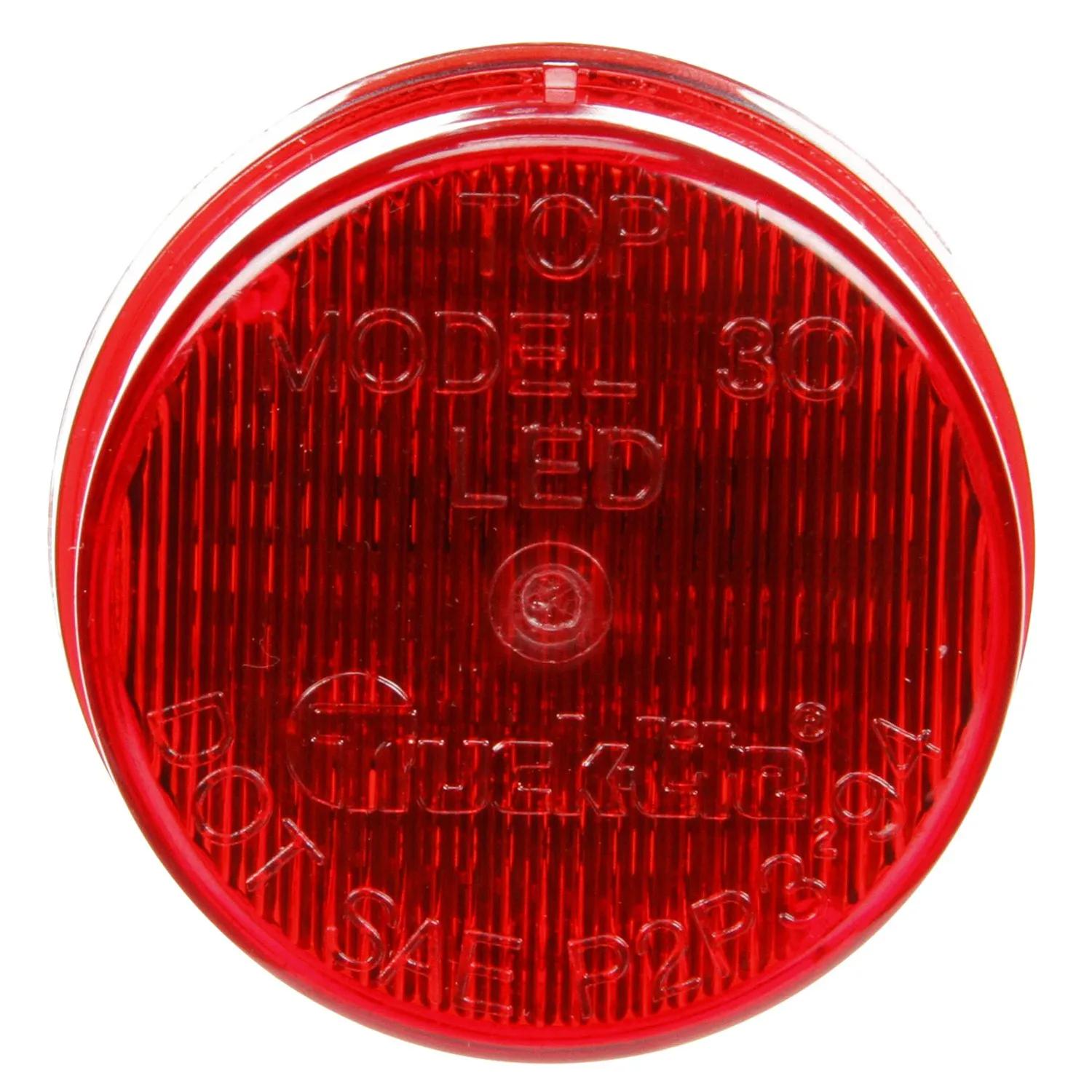

Marker Clearance Light, Red, Round
#TRL30255R
Product Overview
30 Series, LED, Red Round, 3 Diode, Marker Clearance Light, P3, Fit 'N Forget M/C, 12-24V
Features & Benefits
- P2/P3 Rated marker & clearance lamps are compliant for 90 degree
- Low-profile design to reduce damage from being hit or knocked off.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.05 amp |
| Depth | 61/64 in (2.41 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-1/64 in (5.13 cm) |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Width | 2-1/64 in (5.13 cm) |
Interchanges & Equivalent parts:
| 6220014825444 |
| 30255R |
| 811555 |
| A94890038 |
| 841330255R |
| 50924002 |
| TL30255R |
| TLD30255R |
| 30058R |
| 30258R |
| 8413-30255R |
| LIT30255R |
| TL 30255R |
| TL 30255R |
| 6HA648 |
| 20261 |
