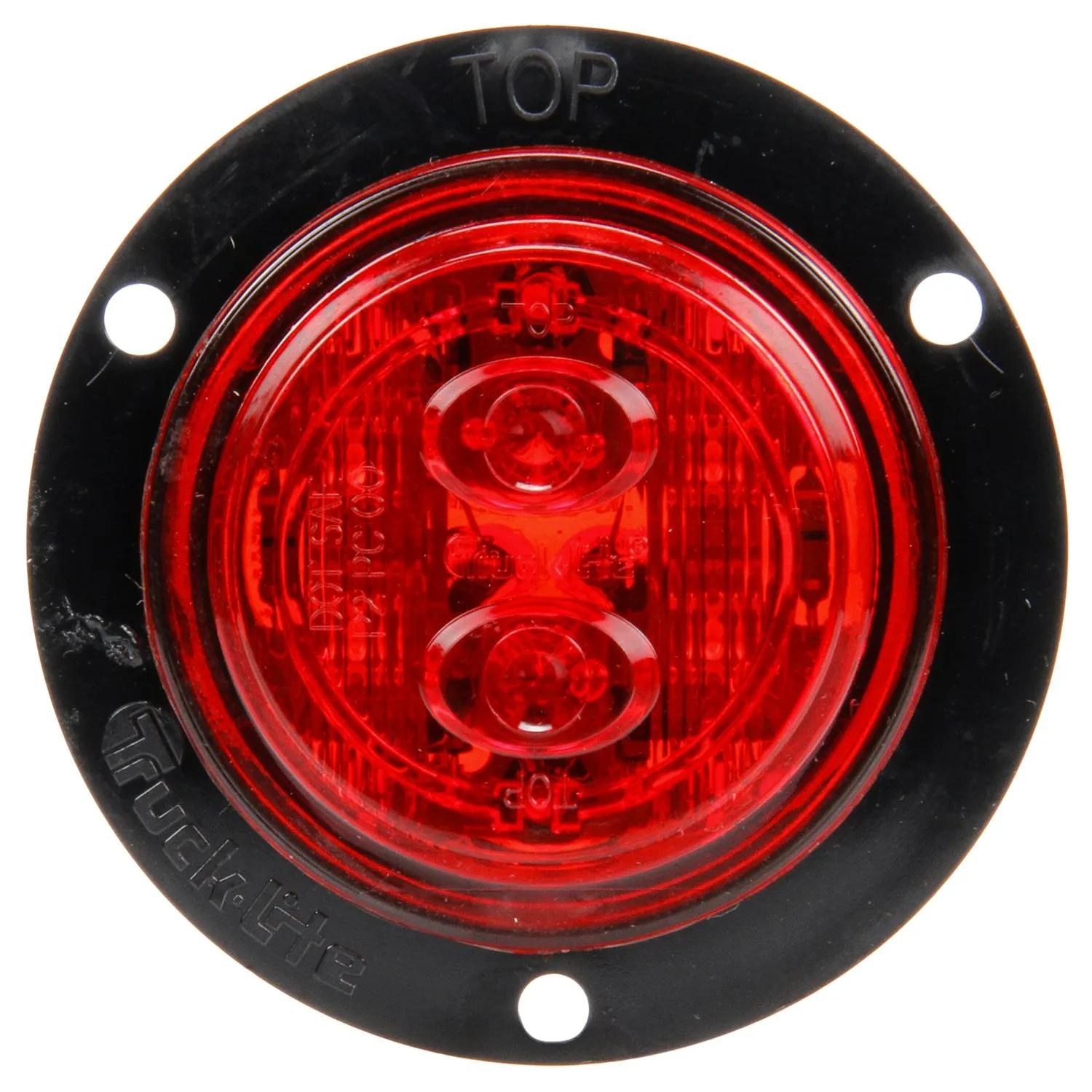

Marker Clearance Light, Red, Round
#TRL30288R
Product Overview
30 Series, Low Profile, LED, Red Round, 6 Diode, Marker Clearance Light, PC, Black Polycarbonate Flange Mount, PL-10, 12V
Features & Benefits
- ABS indicator Lamp
- Options available with SAE PC Rating, allowing combined marker & clearance applications
- Most Advanced and cost effective 2" Marker & Clearance light on the market
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Black Flange |
| Current Major | 0.12 amp |
| Depth | 1-1/16 in (2.69 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-15/16 in (7.47 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-15/16 in (7.47 cm) |
Interchanges & Equivalent parts:
| 41312562 |
| 30288R |
| 69040132 |
| 841330288R |
| 40132 |
| PQZ885 |
| TL30288R |
| TLD30288R |
| 81147 |
| 8413-30288R |
| LIT30288R |
| TL 30288R |
| TL 30288R |
| M165FR |
| TG40132 |
