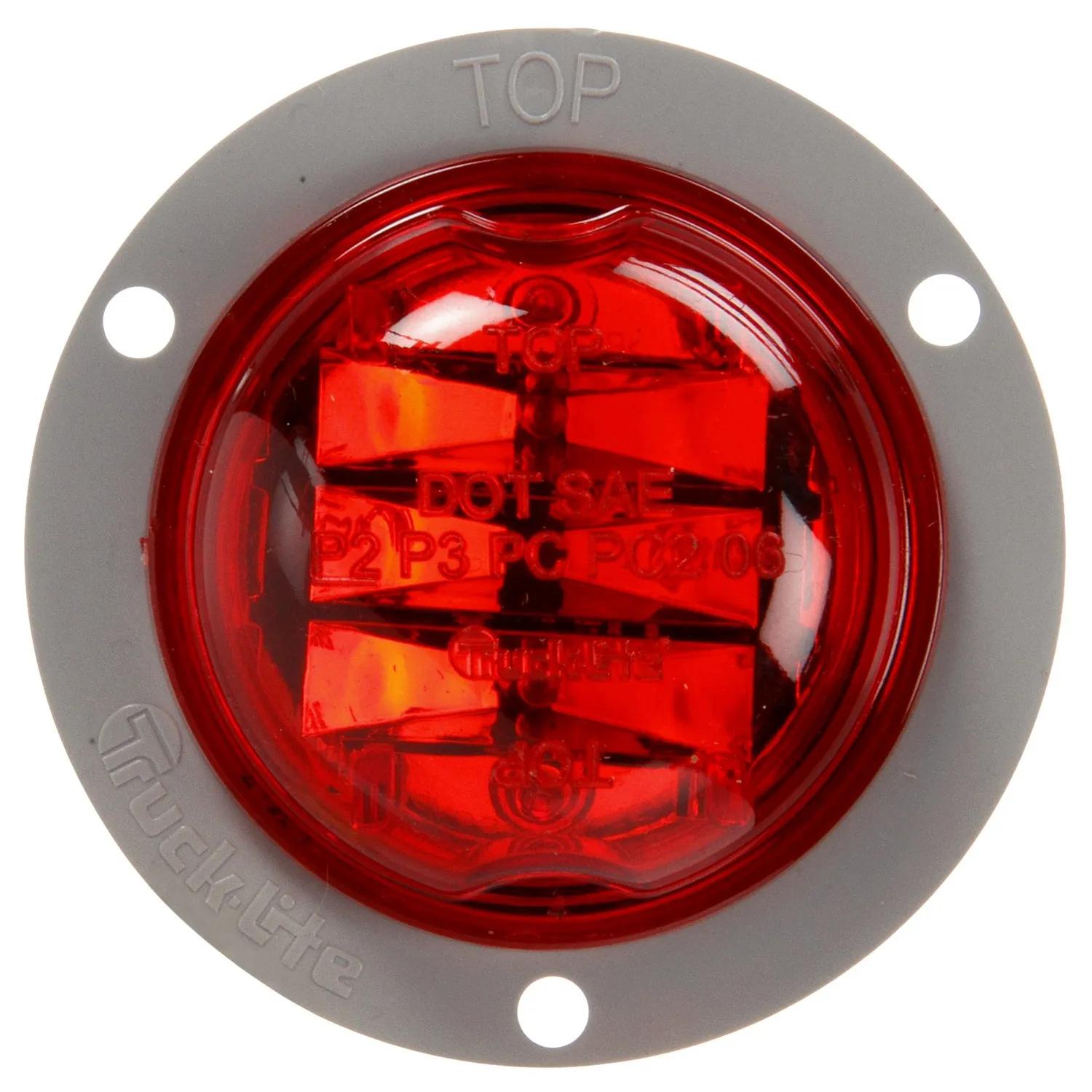

Marker Clearance Light, Red, Round
#TRL30379R
Product Overview
30 Series, High Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flange Mount, Fit 'N Forget M/C, 12V
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Gray Flange |
| Current Major | 0.1 amp |
| Depth | 1-45/64 in (4.32 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-59/64 in (7.42 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-59/64 in (7.42 cm) |
Interchanges & Equivalent parts:
| 30379R |
| 5351537920 |
| 841330379R |
| TL30379R |
| TLD30379R |
| 30379RTLT |
| 8413-30379R |
| LIT30379R |
| TKL30379R |
| TL 30379R |
| TL 30379R |
