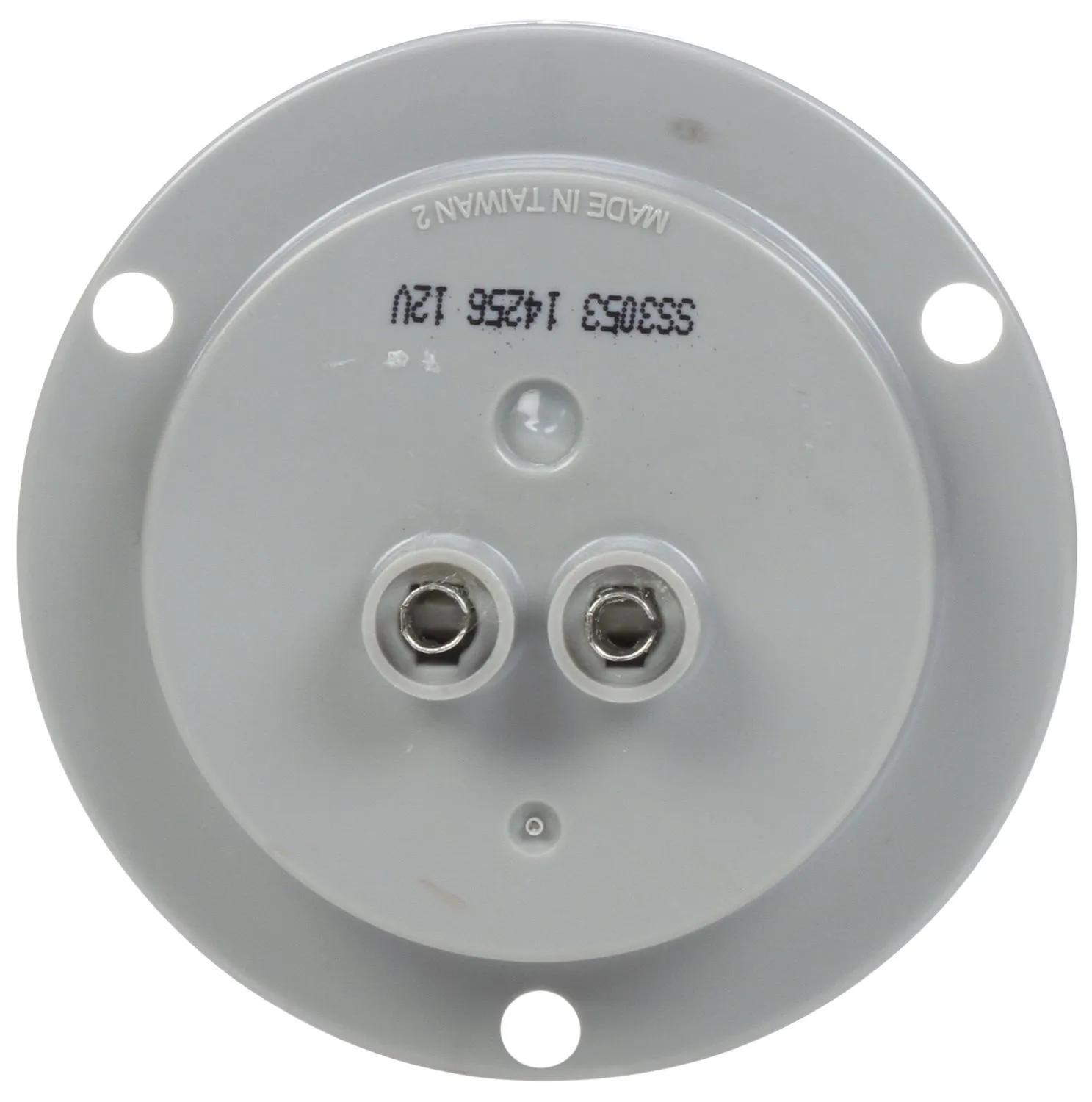

Marker Clearance Light, Red, Round
#TRL3053
Product Overview
Signal-Stat, LED, Red Round, 10 Diodes, Marker Clearance Light, P2, Gray Polycarbonate Flange Mount, PL-10, 12V
Features & Benefits
- Uses Standard PL10 Connector
- Sealed Lens & Housing Locks Moisture Out
- Epoxy Encapulated Electronics Prevents Damage From Moisture & Corrosions
- Recommend 94902 Plug, Not Included
- Operates On 12 Volt Systems, Drawing A Low 0.055 Amps
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp w/ Flange |
| Current Major | 0.06 amp |
| Depth | 1-3/64 in (2.67 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-29/32 in (7.39 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2-29/32 in (7.39 cm) |
Interchanges & Equivalent parts:
| 3053 |
| 8413-3053 |
| TL 3053 |
