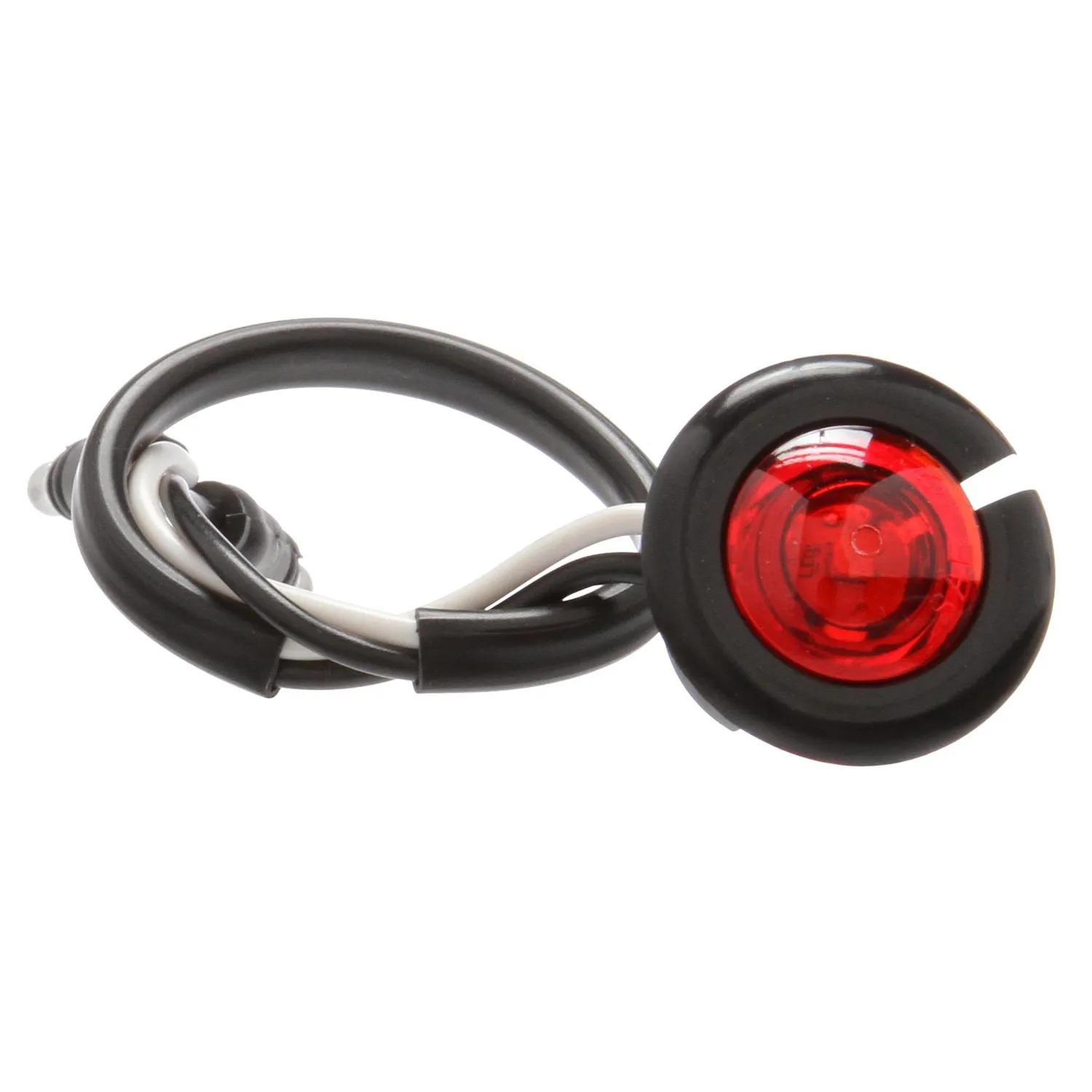

Marker Clearance Light, Red, Round
#TRL33051R
Product Overview
33 Series, P2 Rated, LED, Red Round, 1 Diode, Marker Clearance Light, P2, Black Nylon Flange Mount, Hardwired, .180 Bullet Terminal, 12V, Kit
Features & Benefits
- US patent 7,658,524
- World's smallest LED marker lamp for the transportation industry
- Exceeds legal requirements
- Hardwired lamp design is easily retrofitted
- LEDs draw less current, allowing more power for other vehicle requirements
Specifications
| Couleur | Rouge |
| Taille commune | 3/4 in (1.91 cm) |
| Contient | Lampe, Bride |
| Major actuel | 0,05 amp |
| Depth | 63/64 in (2.49 cm) |
| Diamond Shell (Y/N) | Non |
| Height | 1-5/32 in (2.95 cm) |
| Housing Color | Noir |
| Kit (Y/N) | Yes |
| Length | 23/32 in (1.83 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | Nylon |
| Mount Type | Montage à bride |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | Non |
| Series | 33 Series |
| Shape | Rond |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 1-5/32 in (2.95 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 8 po (20,32 cm) |
Interchanges & Equivalent parts:
| 33051R |
| 434796 |
| 970058375 |
| 841333051R |
| 94890500 |
| TL33051R |
| TLD33051R |
| 1262909 |
| TRU33051R |
| 47952GR0 |
| 8413-33051R |
| LIT33051R |
| TL 33051R |
| TL 33051R |
| TKL33051R |
