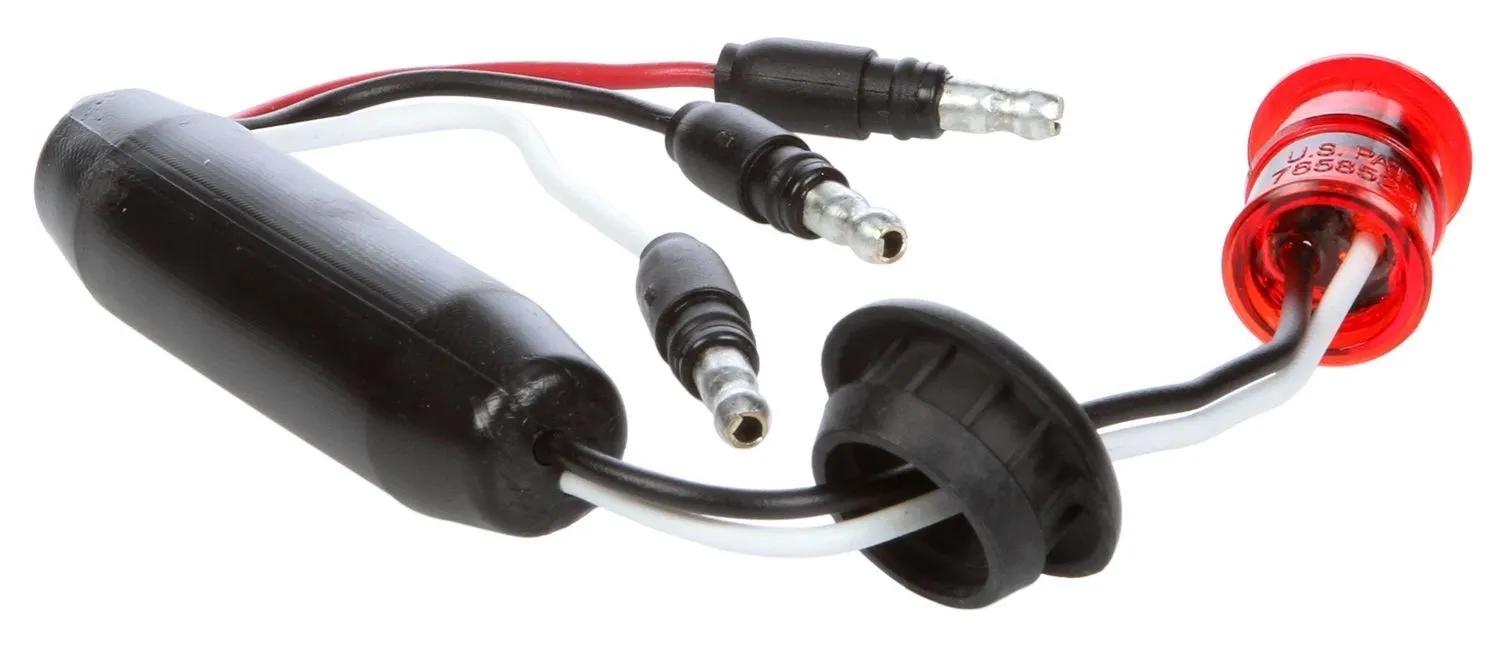

Marker Clearance Light, Red, Round
#TRL33203R
Sommaire du produit
Dual function, 33 Series, LED, Red Round, 1 Diodes, Marker Clearance Light, P2, Black Rubber Grommet, Hardwired, .180 Bullet Terminal, 12V, Kit
Caractéristiques et avantages
- Provides Increased Visibility When Bracking Or Turning
- Functions As A Marker, Auxiliary Turn, & Auxiliary Stop When Properly Installed
- Best In Class Auxiliary Brake Function Is Seven Times Brighter Than Marker Function
Spécifications
| Color | Red |
| Common Size | 3/4 in (1.91 cm) |
| Contents | Lamp, Mounting & Plug |
| Current Major | 0.17 amp |
| Current Minor | 0.02 amp |
| Depth | 11-1/2 in (29.21 cm) |
| Diamond Shell (Y/N) | No |
| Height | 11-1/2 in (29.21 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Lamp Grommet Diameter | 2 in. |
| Length | 3/4 in (1.91 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Connector Diameter (in.) | 2-5/16 in (5.87 cm) |
| Mount/Trim Color | Black |
| Mount/Trim Material | Rubber |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Product Application | Truck/Trailer |
| Reflectorized (Y/N) | No |
| Series | 33 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 1-3/32 in (2.77 cm) |
| Wire Gauge | 18 ga |
Interchanges et pièces équivalentes:
| 8413-33203R |
| TKL33203R |
| TL 33203R |
| TL33203R |
| 33203R |
