Clearance Marker Light, SuperNova® Turtleback® II LED, Amber, Rectangular, Polycarbonate, Male Pin

#GRO47163

Product Overview

Warranty: GRO47163 - Warranty Documents - A

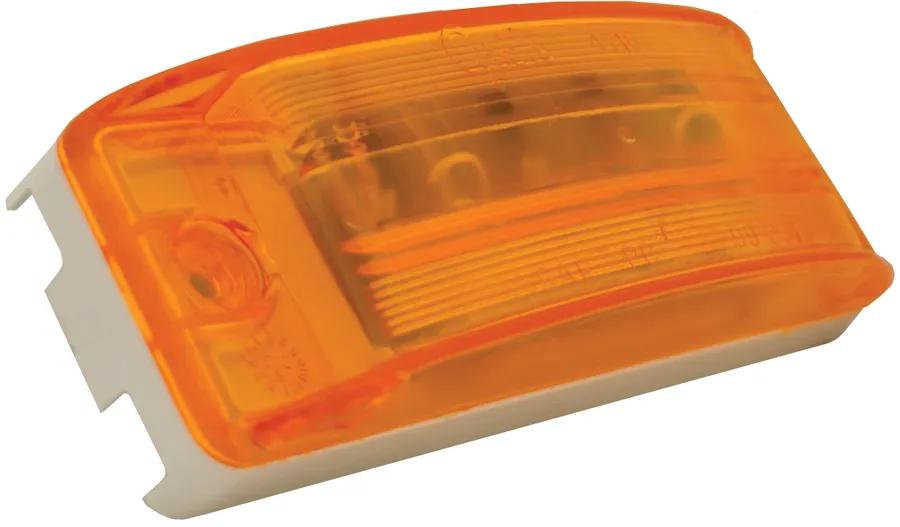

Grote's SuperNova® sealed Turtleback® II LED clearance marker lights feature encapsulant potting for total circuit-board protection and a hermetic lens-to-housing seal. Designed to meet PC function only when mounted at a 45° angle, these lights include tin-plated, solid-brass terminals sealed to the housing to resist corrosion and eliminate failure-causing leak paths. Not designed for vertical mount, they comply with FMVSS 108 standards and offer reliable side mounting.Clearance Marker Light, LED Bulb, Male Pin Connection Type, Screw Mounting, White Housing, Amber Lens, Amber Light Output, Polycarbonate Lens, Polycarbonate Housing, 0.10 A Current Rating, P2, PC Light Function, SuperNova®, Turtleback®, Rectangular, FMVSS 108 Standards, 10 Years Warranty

Features & Benefits

Male pin design for secure connection

Meets PC function when mounted at a 45° angle

Tin-plated, solid-brass terminals resist corrosion and are sealed to housing to eliminate leak paths

Encapsulant potting ensures total circuit-board protection

Amber hermetic lens-to-housing seal for secure protection

Manufactured to meet or exceed O.E.M. specifications in function, form & fit

Not designed for vertical mount

Specifications

Bulb Type	LED
Connection Type	Male Pin
Contents	PC Rated, Optic Lens, Male Pin
Height	2-1/32 in
Housing Color	Yellow
Length	6 in
Lens Color	Amber
Mounting Type	Side Mount, Screw
Number Of Wires	2
Shape	Rectangular
Size	2 in
Standards	FMVSS 108
Type	Marker Clearance Light
VMRS Code	034-004-253
Voltage Rating	12V
Warranty	10 Years
Width	2-1/32 in
Current Rating	0.10 A
Light Function	P2, PC
Light Output Color	Amber
Product Line	SuperNova®, Turtleback®
Product Category	Clearance Marker Light
