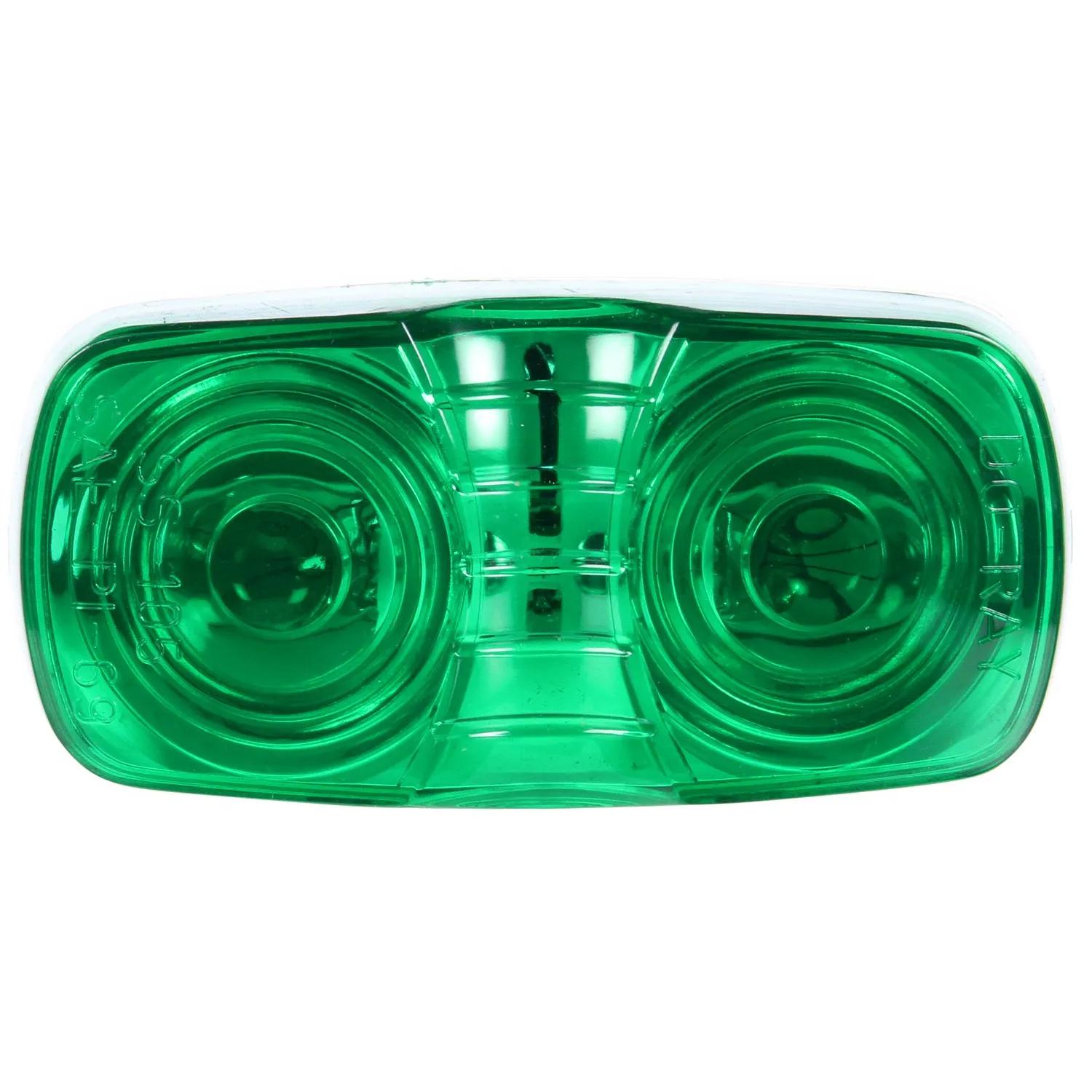

Marker Clearance Light, Green, Rectangular
#TRL26302G
Product Overview
26 Series, Permastat, Incandescent, Green Rectangular, 2 Bulb, Marker Clearance Light, 2 Screw Mount, Hardwired, Stripped End, 12V
Features & Benefits
- Snap-On lens with either plastic or die-cast housing
- Lamp meets requirements with only one bulb
- Not suitable for PC requirements
Specifications
| Color | Green |
| Common Size | 2 in (5.08 cm) |
| Current Major | 0.27 amp |
| Depth | 1-1/8 in (2.87 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 4 in (10.16 cm) |
| Kit (Y/N) | No |
| Lens Material | Acrylic |
| Material | ABS |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 26 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2 in (5.08 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 1203G |
| 8413-26302G |
| TL 26302G |
| TL 26302G |
| TL26302G |
| TLD26302G |
| TRU26302G |
