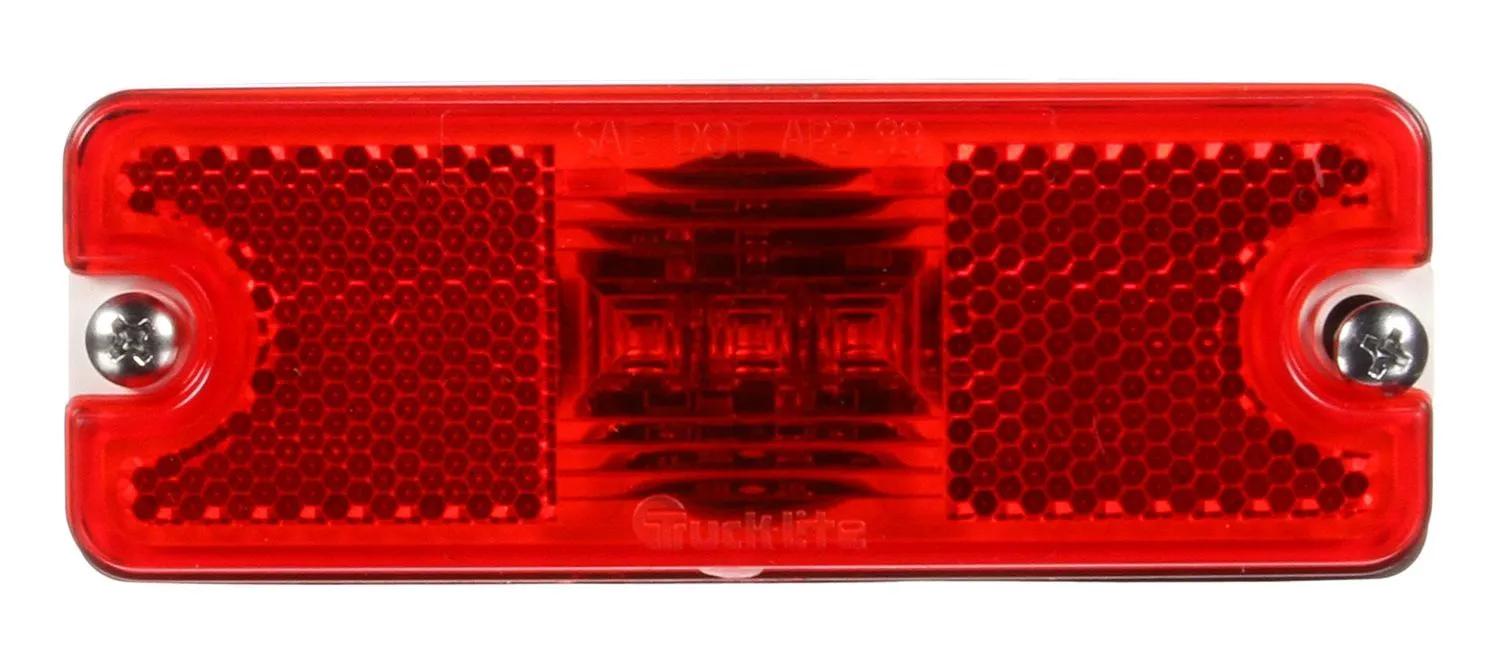

Marker Clearance Light, 3 Diode, 18 Series, LED, Red, Acrylic, Rectangular, Hardwired, 12V, Kit
#TRL18050R
Product Overview
18 Series LED red rectangular marker clearance light with 3 diodes, P2 rating, 2 screw mounting, reflectorized acrylic lens, hardwired blunt cut connection, 12V operation, sold as a kit.Marker Clearance Light, 3 Diode, LED Bulb, Hardwired, 2 Screw, Acrylic, Red, 1.63 in H, 0.05 in L, Light Function: A, P2, 18 Series, Rectangular, 12 V, Warranty: 3 Years, 4.5 in W
Features & Benefits
- Uses standard mounting holes and accessories
- Draws less current, allowing more power for other vehicle requirements
- OmniVolt versions also meet ECE standards
- Not suitable for PC requirements
- OmniVolt versions address increasing vehicle power demands by operating equally in electrical systems ranging from 10 to 30 volts
- Meets SAE J592e standards
- Meets SAE J594f when mounted with no rollout or rollback
Specifications
| Bulb Type | LED |
| Common Size | 2 in |
| Connection Type | Hardwired |
| Contents | Lamp, Hard Wired |
| Depth | 1 in |
| Diamond Shell (Y/N) | Yes |
| Height | 1-5/8 in |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| Length | 4-1/2 in |
| Lens Color | Red |
| Lens Material | Acrylic |
| Material | Acrylic |
| Mounting Type | 2 Screw |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Quantity | 1 |
| Reflectorized (Y/N) | Yes |
| Shape | Rectangular |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE, SAE J592e, SAE J594f |
| Technology | LED |
| Type | 3 Diode |
| UPC | 735111062424 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | 3 Years |
| Weight | 0.16 lb |
| Width | 4-1/2 in |
| Wire Gauge | 18 ga |
| Wire Length | 4 in |
| Current Rating | 0.05 amp |
| Light Output Color | Red |
| Light Function | A, P2 |
| Product Line | 18 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 58011333 |
| 30129 |
| 18050R |
| 46001330 |
| 256446 |
| 678827 |
| HT50601625 |
| TRU18050R |
| 16513824 |
| 8413-18050R |
| LED18R |
| LIT18050R |
| TL 18050R |
| TL 18050R |
| TL18050R |
| TLD18050R |
| 47732GR0 |
| TKL18050R |
| 841318050R |
| 011777V009 |
