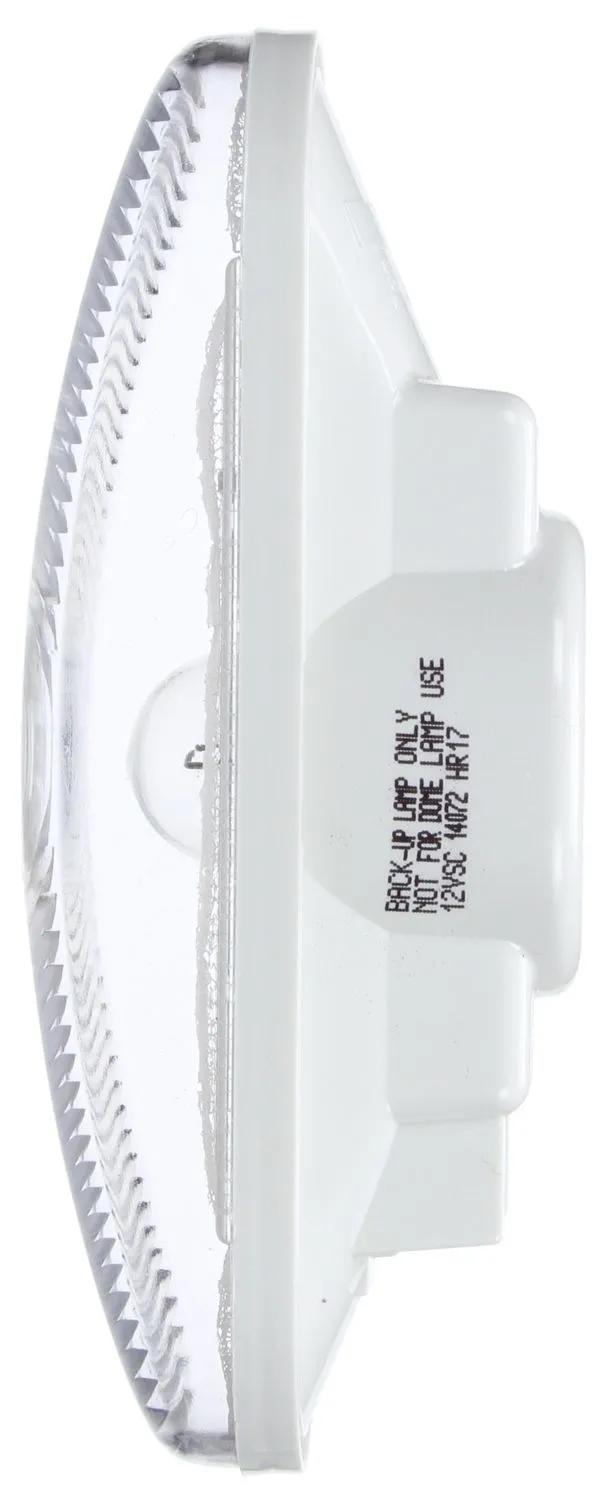

Back-Up Light, Clear, Oval, Le: 6-3/8 in
#TRL60004C
Product Overview
60 Series, Incandescent, Clear Oval, 1 Bulb, Back-Up Light, Black Grommet Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- High-impact polycarbonate lens and housing are sonically sealed
- Heavy duty shock mounted bulb
- Legal mounted vertically or horizontally
- Only one lamp required to meet federal lighting regulations
- Not recommended for dome lamp use
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 2.1 amp |
| Color | White |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp Kit |
| Depth | 2-1/8 in (5.41 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94992 |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 2 |
| Lamp Type | Sealed |
| Length | 6-3/8 in (16.21 cm) |
| Lens Height | 2-13/64 in (5.59 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 6-29/64 in (16.38 cm) |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Back-Up Light |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 0.54 lb (0.24 kg) |
| Width | 6-3/8 in (16.21 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5460004C |
| 416K |
| 60004C |
| 10616 |
| 1TL60004 |
| 15200404 |
| 651916 |
| 5041612 |
| 841360004C |
| 400 |
| 705201514 |
| BU65CB |
| BU74CB |
| BU74CBTK |
| 40271 |
| 94890046 |
| K916387 |
| 809450 |
| TL60004C |
| TLD60004C |
| TRU60004 |
| F310131 |
| 1356169 |
| 60004 |
| TRU60004C |
| 8413-60004C |
| BU-65CB |
| BU-74CB |
| BU-74CBTK |
| KT3260W |
| LIT60004C |
| LT60KW |
| TL 60004C |
| TL 60004C |
| TL-60004C |
| 62251GR0 |
| 80945 |
| 62251 |
| FOR14183 |
| 186402 |
| 81251 |
| E70190 |
